PLAN 1083-7
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

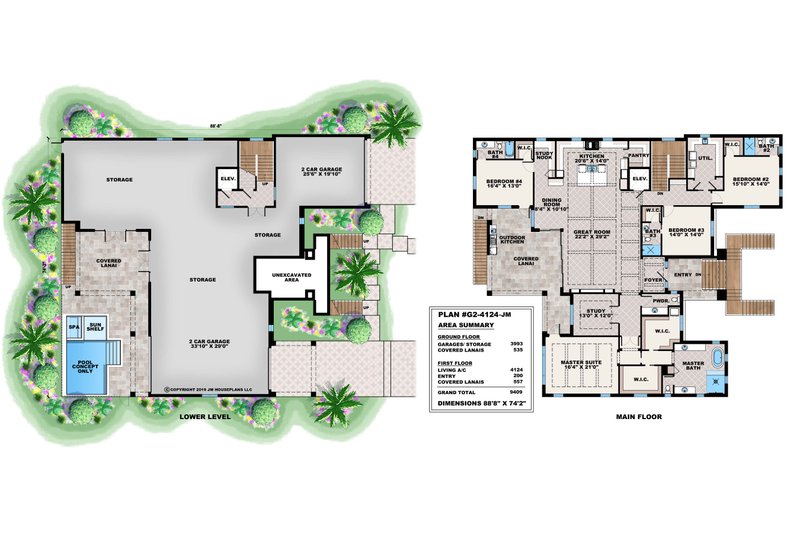

Floor Plans
Full Specs & Features
Dimension
Depth : 88' 8"
Width : 74' 2"
Area
Garage : 3993 sq/ft
Lower Floor : 4528 sq/ft
Main Floor : 4881 sq/ft
Patios : 1092 sq/ft
Porch : 200 sq/ft
Ceiling
Main Ceiling : 12'
Roof
Primary Pitch : 6:12
Roof Type : trusses
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Oversized Garage
Rear Garage
Split Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
-
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
- Material Labels
- Foor-to-Floor Heights
- Roof Slope Indicators
-
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
- Door and Window Sizes
- Completely Dimensioned Floor Plan
- Room Labels and Interior Room Sizes
- Electrical Layouts
- Building Section Markers
- All Electrical Outlets, Fixtures, and Switching
- Floor and Deck Joist Size and Spacing
- Rough-in Plumbing Location (if applicable)
- Mechanical Equipment Locations (if applicable)
- Electrical Locations (if applicable)
-
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
- All Beam and Header Heights and Locations
- All Hips, Gables, Ridges and Valleys
- Building Section Markers
-
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
- Floor Joist Size and Spacing
- Floor-to-Floor Heights
- Non-Typical Plate Heights Indicated
-
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
- All Labels Indicating Wall Construction
- Foundation Wall Thickness and Reinforcing
- Insulation Type and Thickness
-
Miscellaneous Notes and Details
- Miscellaneous General Notes
- Stairway details (if applicable)
-
Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
Plan Set
$4500.00
$4500.00
Foundation
$0.00
Framing
$0.00
$550.00
$550.00
$550.00
Additional Options
$550.00
$165.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
