PLAN 117-896
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This beach design floor plan is 2662 sq ft and has 1 bedrooms and 2 bathrooms.
Floor Plans

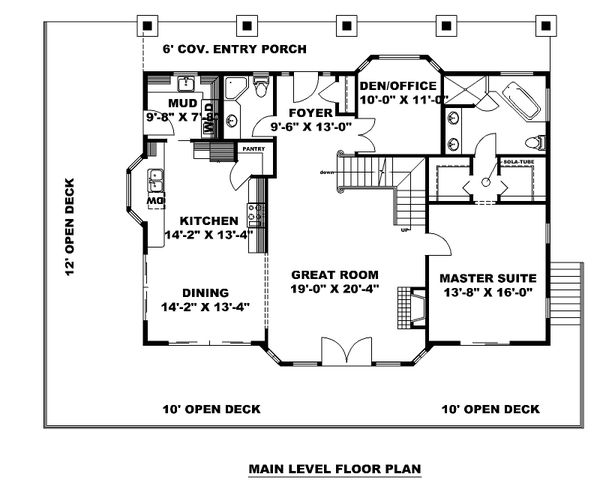

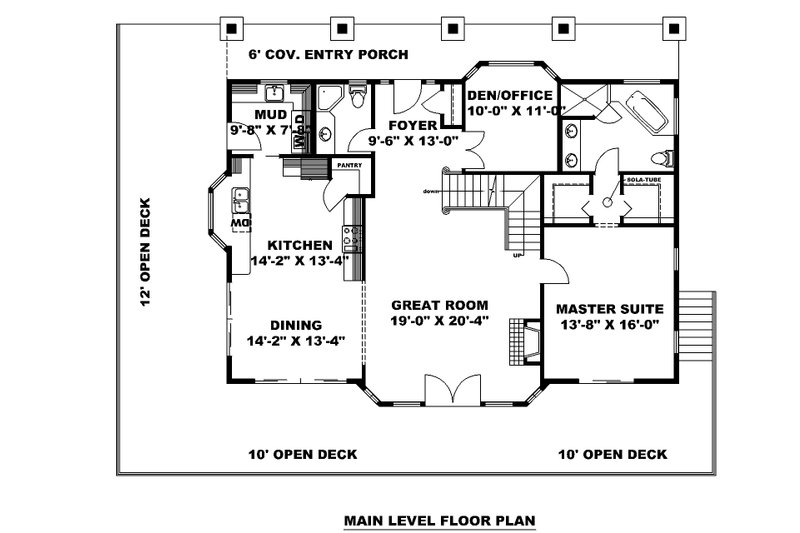

Floor Plan - Main Floor

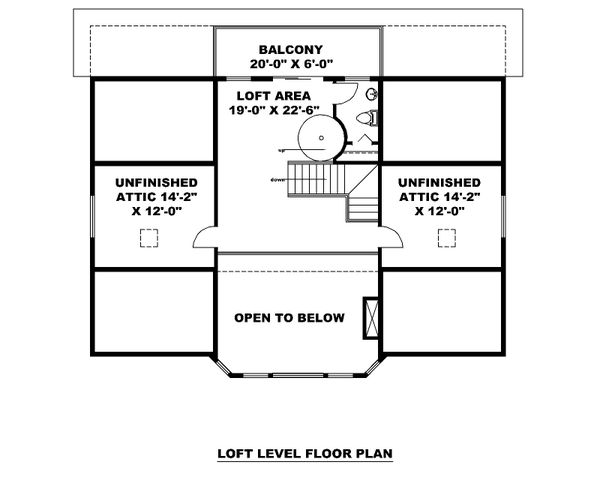

Floor Plan - Upper Floor

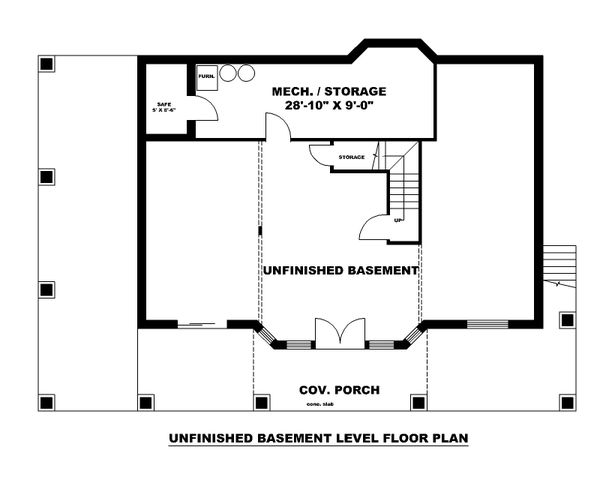

Floor Plan - Lower Floor

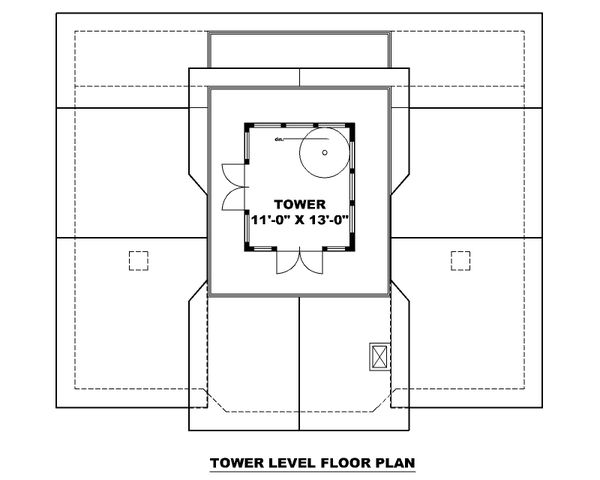

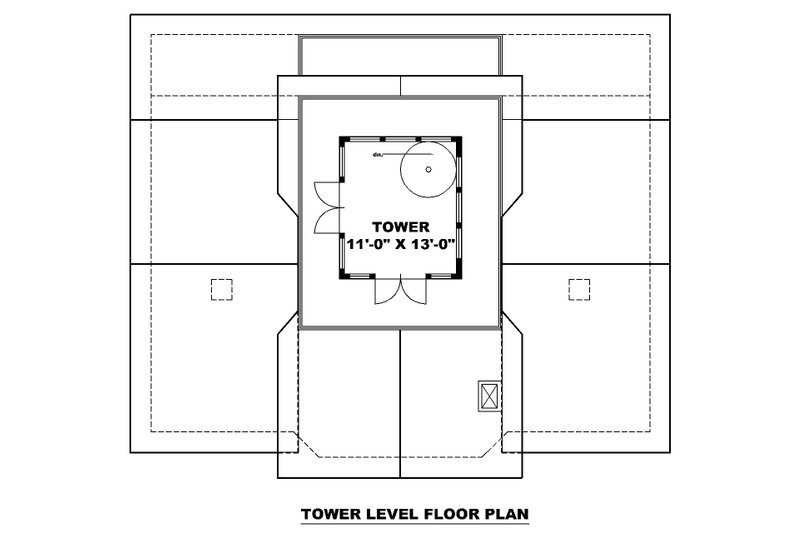

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 49'
Height : 43' 6"
Width : 65'
Area
Lower Floor : 1681 sq/ft
Main Floor : 1695 sq/ft
Third Floor : 168 sq/ft
Upper Floor : 799 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
