PLAN 417-536

Photographs may show modified designs.

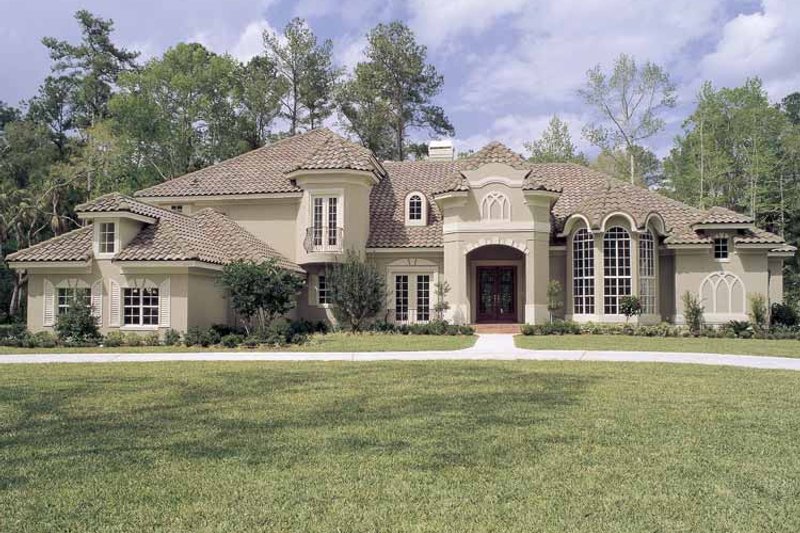

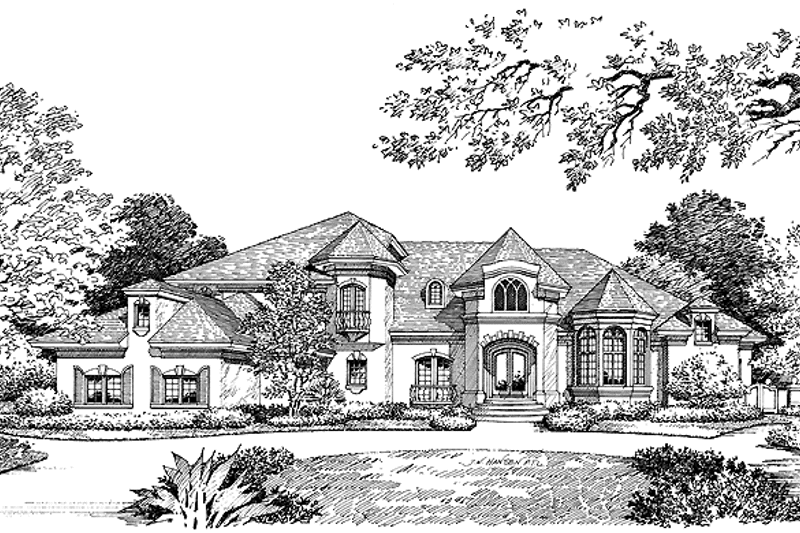

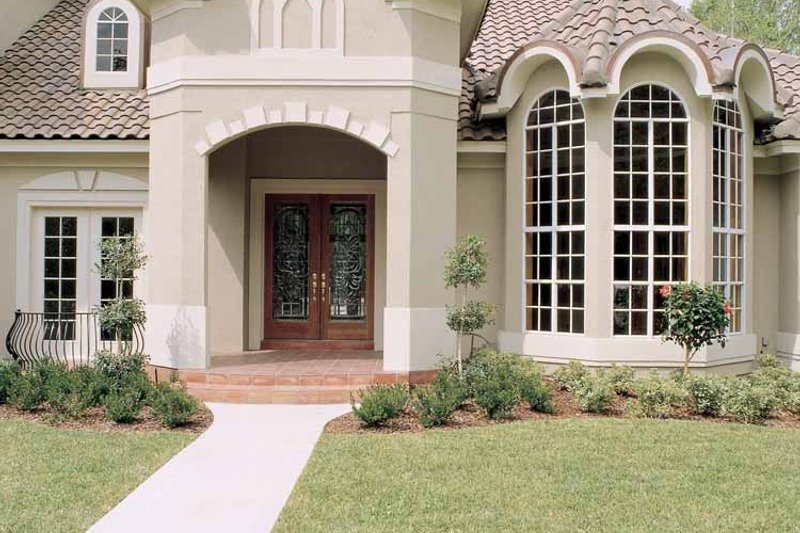

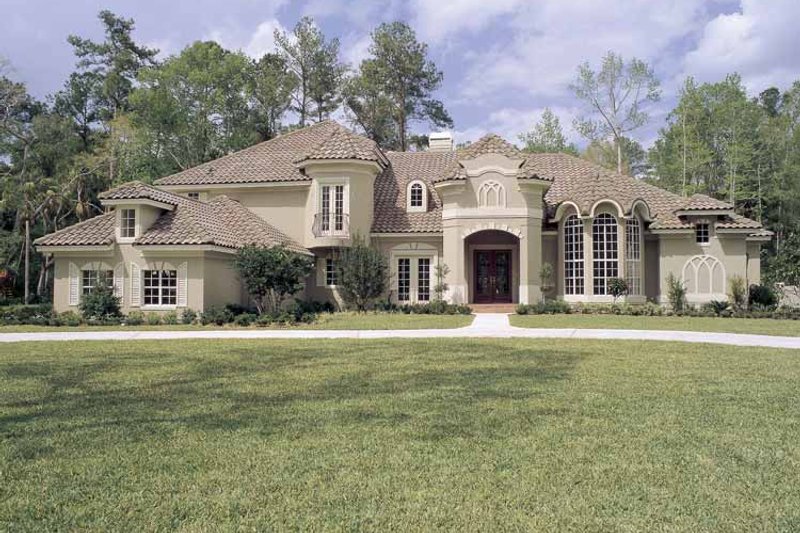

Home Plan - Mediterranean Exterior - Front Elevation Plan #417-536

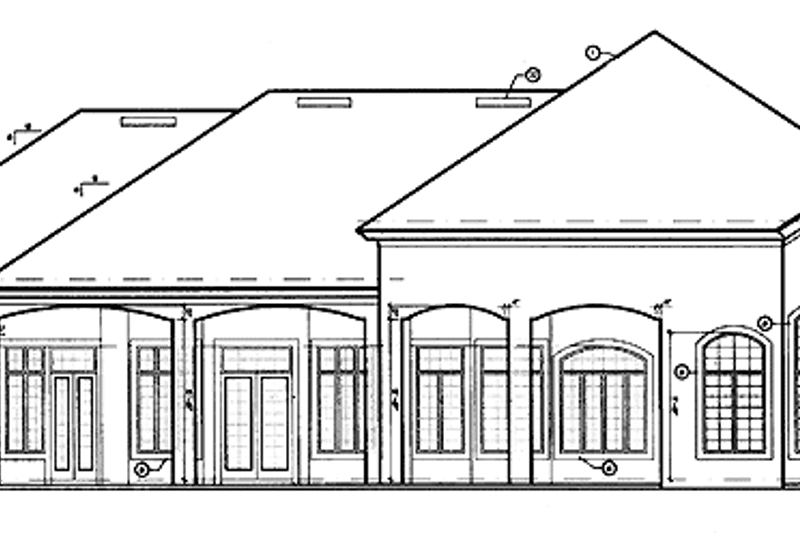

Home Plan - Mediterranean Exterior - Rear Elevation Plan #417-536

Home Plan - Mediterranean Floor Plan - Main Floor Plan #417-536

Home Plan - Mediterranean Floor Plan - Upper Floor Plan #417-536

Jump to:
All (7)
Exterior (5)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

4517
sq ft

4
Beds

5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$30.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1800.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 417-536

Home > Style > Mediterranean

Key Specs

4517
sq ft

4
Beds

5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This estate embraces the style of southern France. Double doors open to a formal columned foyer and give views of the octagonal living room beyond. To the left is the formal dining room that connects to the kitchen via a butler's pantry. To the right is an unusual den with octagonal reading space. The master wing is immense, featuring a wet bar, a private garden, and an exercise area. Two secondary bedrooms have private baths; Bedroom 2 has a private terrace. An additional bedroom with a private bath resides on the second floor, making it a perfect student's retreat. Also on the second floor are a game loft and a storage area.

Floor Plans

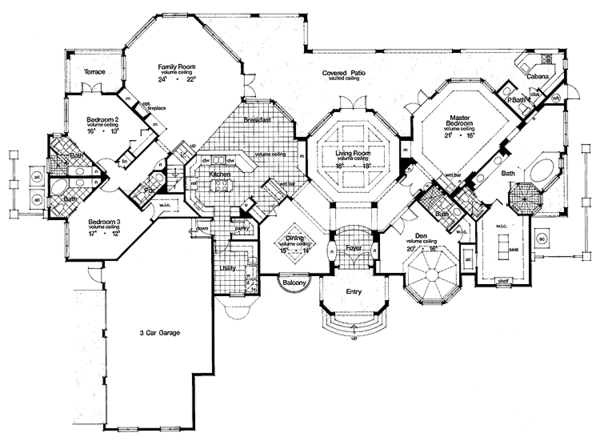

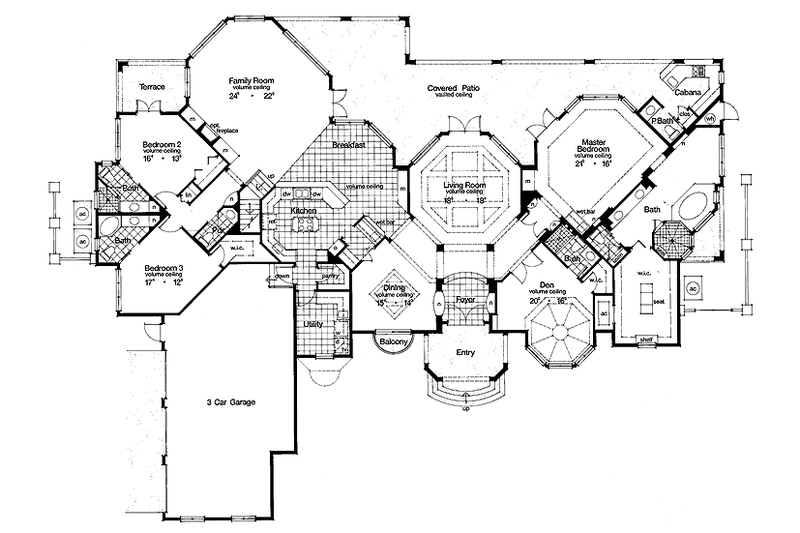

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

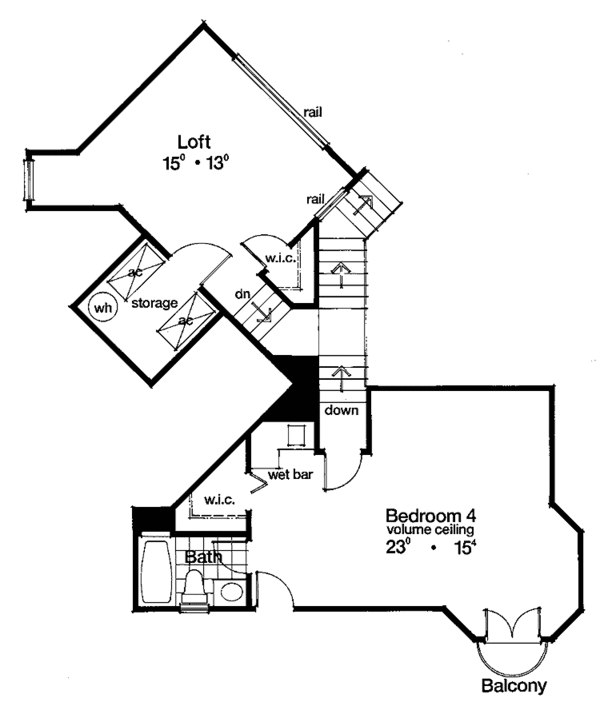

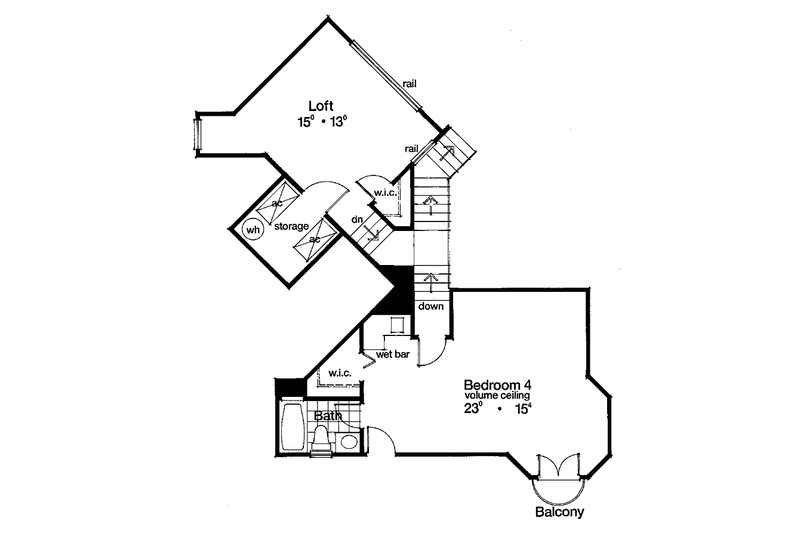

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 84'

Height : 33'

Width : 105'

Area

First Floor: 3739 sq/ft

Second Floor: 778 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Master Sitting Area

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Rooms

Bedroom 2:

202 sq/ft width 12' 8" x depth 16'

Bedroom 3:

218 sq/ft width 12' 9" x depth 17' 2"

Bedroom 4:

322 sq/ft width 21' 2" x depth 15' 3"

Breakfast Room:

123 sq/ft width 12' x depth 10' 3"

Den/Office or Bedroom 1:

324 sq/ft width 16' x depth 20' 3"

Dining Room:

213 sq/ft width 14' x depth 15' 3"

Foyer:

110 sq/ft width 9' 6" x depth 11' 8"

Garage:

722 sq/ft width 21' 6" x depth 33' 7"

Gathering Room:

597 sq/ft width 23' 11" x depth 25'

Kitchen:

200 sq/ft width 15' 3" x depth 13' 2"

Living Room:

339 sq/ft width 18' 6" x depth 18' 4"

Master Bathroom:

218 sq/ft width 11' 6" x depth 19'

Master Bedroom:

347 sq/ft width 16' 9" x depth 20' 9"

Master Closet:

144 sq/ft width 10' 6" x depth 13' 9"

Pantry:

23 sq/ft width 5' 4" x depth 4' 4"

Porch - Front:

131 sq/ft width 13' 10" x depth 9' 6"

Porch - Left:

102 sq/ft width 8' 9" x depth 11' 8"

Porch - Rear:

495 sq/ft width 12' x depth 41' 3"

Utility Room:

92 sq/ft width 8' 10" x depth 10' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1800.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$2000.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$2150.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$3600.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$900.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$30.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
