PLAN 1021-16

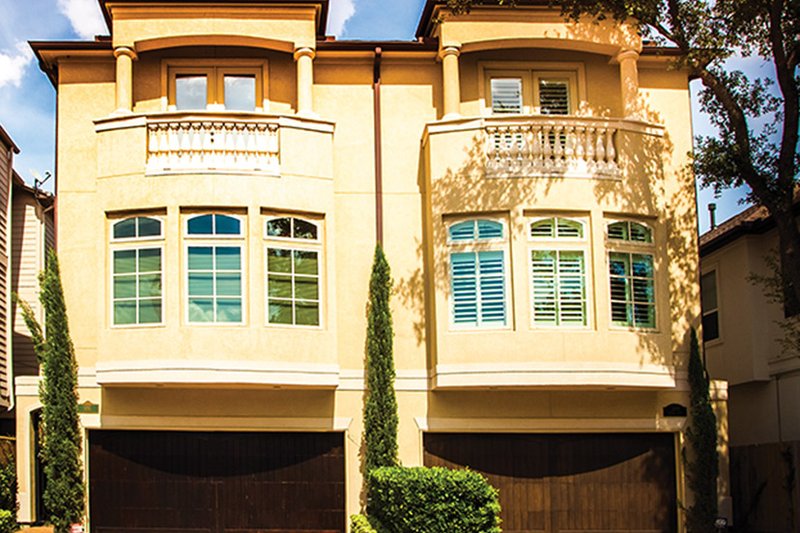

Photographs may show modified designs.
- Jump to:
- All (7)
- Floor plans (3)
Get Personalized Help
Key Specs
5806
sq ft
4
Beds
6
Baths
3
Floors
4
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1021-16
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

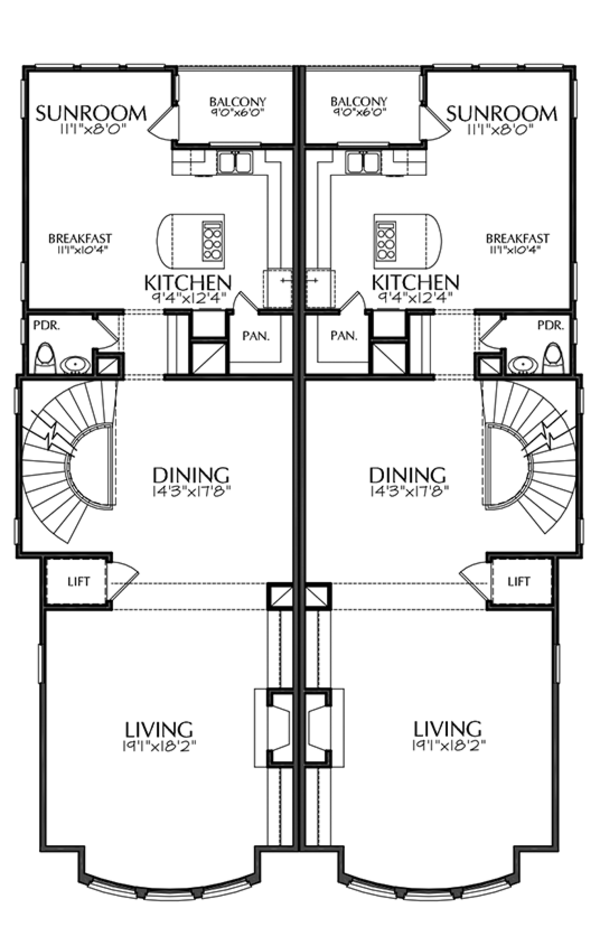

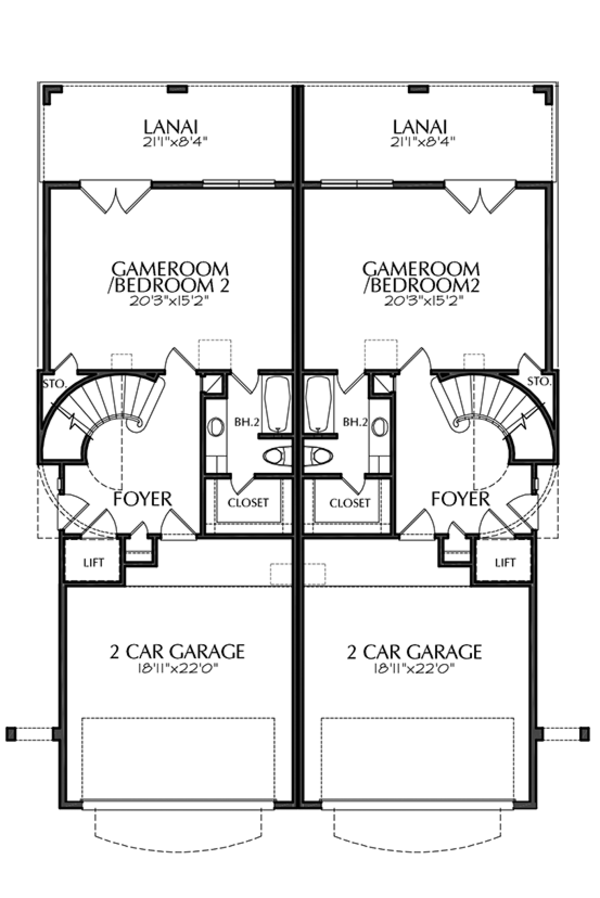

Floor Plan - Main Floor

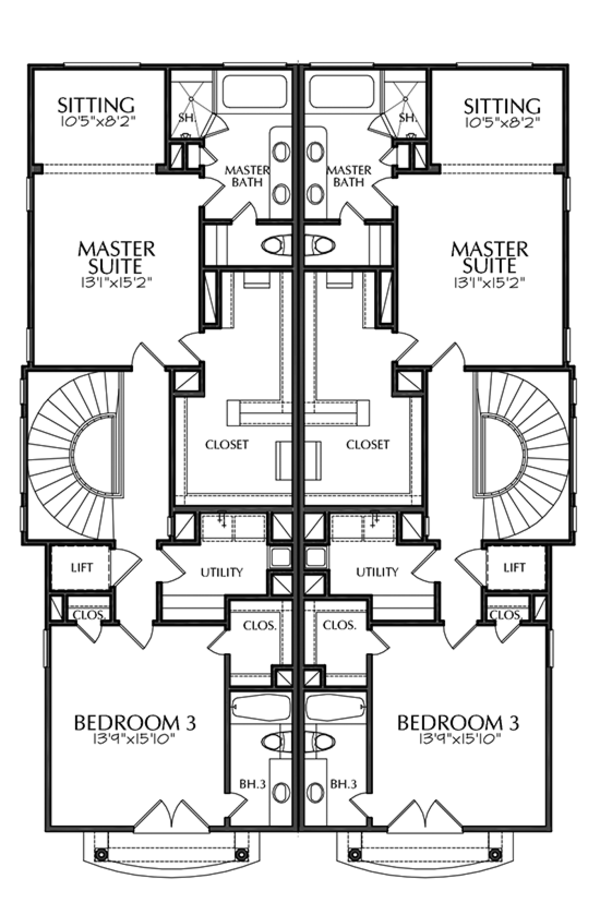

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 60' 6"
Height : 37' 1"
Width : 43' 4"
Area
First Floor: 649 sq/ft height 10'
First Floor: 649 sq/ft height 10'
Garage: 416 sq/ft
Garage: 416 sq/ft
Second Floor: 1129 sq/ft height 10'
Second Floor: 1129 sq/ft height 10'
Third Floor: 1125 sq/ft height 10'
Third Floor: 1125 sq/ft height 10'
Roof
Primary Pitch : 37:12
Roof Framing : Conventional
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Hobby Rec Room Game Room
Loft
Master Sitting Area
Sunroom
Garage Features
Front Entry Garage
Outdoor Spaces
Balcony
Courtyard
Screened Porch
More
Wheelchair Adaptable
Rooms
Unit 1 Game Rm/ Bdrm 2:
307 sq/ft width 20' 3" x depth 15' 2"
Unit 1 Bedroom 3:
218 sq/ft width 13' 9" x depth 15' 10"
Unit 1 Breakfast:
115 sq/ft width 11' 1" x depth 10' 4"
Unit 1 Dining Room:
252 sq/ft width 14' 3" x depth 17' 8"
Unit 1 Garage:
416 sq/ft width 18' 11" x depth 22'
Unit 1 Kitchen:
115 sq/ft width 9' 4" x depth 12' 4"
Unit 1 Living Room:
347 sq/ft width 19' 1" x depth 18' 2"
Unit 1 Master Sitting:
85 sq/ft width 10' 5" x depth 8' 2"
Unit 1 Master Suite:
198 sq/ft width 13' 1" x depth 15' 2"
Unit 1 Rear Balcony:
54 sq/ft width 9' x depth 6'
Unit 1 Rear Lanai:
178 sq/ft width 21' 1" x depth 8' 4"
Unit 1 Sunroom:
89 sq/ft width 11' 1" x depth 8'
Unit 2 Bedroom 3:
218 sq/ft width 13' 9" x depth 15' 10"
Unit 2 Breakfast:
115 sq/ft width 11' 1" x depth 10' 4"
Unit 2 Game Rm/ Bdrm 2:
307 sq/ft width 20' 3" x depth 15' 2"
Unit 2 Garage:
416 sq/ft width 18' 11" x depth 22'
Unit 2 Kitchen:
115 sq/ft width 9' 4" x depth 12' 4"
Unit 2 Living Room:
347 sq/ft width 19' 1" x depth 18' 2"
Unit 2 Master Sitting:
85 sq/ft width 10' 5" x depth 8' 2"
Unit 2 Master Suite:
198 sq/ft width 13' 1" x depth 15' 2"
Unit 2 Rear Balcony:
54 sq/ft width 9' x depth 6'
Unit 2 Rear Lanai:
178 sq/ft width 21' 1" x depth 8' 4"
Unit 2 Sunroom:
89 sq/ft width 11' 1" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1500.00
$2000.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
$200.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
