PLAN 569-1

Photographs may show modified designs.

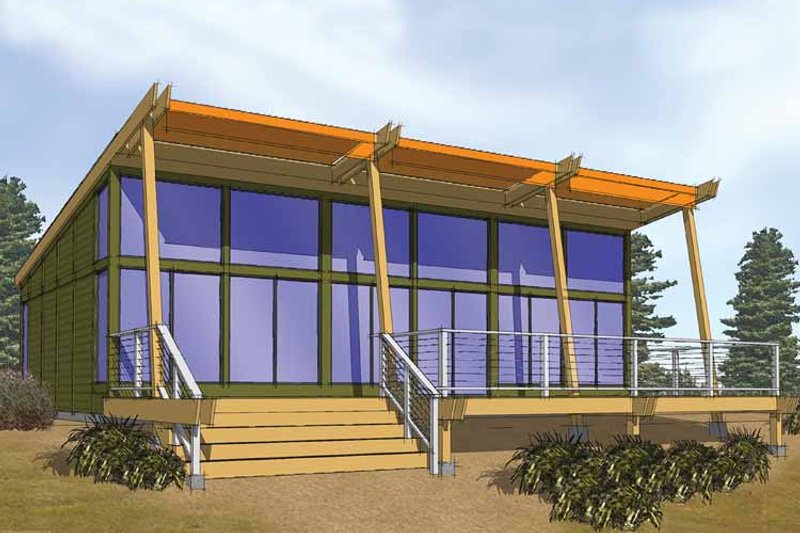

Home Plan - Contemporary Exterior - Front Elevation Plan #569-1

Home Plan - Contemporary Floor Plan - Main Floor Plan #569-1

Jump to:
All (4)
Exterior (3)
Floor plans (1)

Get Personalized Help

Home > Style > Contemporary

Key Specs

864
sq ft

2
Beds

1
Baths

1
Floors

0
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$650.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 569-1

Home > Style > Contemporary

Key Specs

864
sq ft

2
Beds

1
Baths

1
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

The designer of this modern style vacation home chose to focus on quality over quantity in this 864 sq.ft. home. The days of generic, cabin are long past. Today's second homes truly reflect their owners' style, and this one was created to be cozy and affordable making it useful and simple for it's owners. Modeled after mid-century classic waterfront homes the architecture can be integrated into any landscape of what surrounds it.

Floor Plans

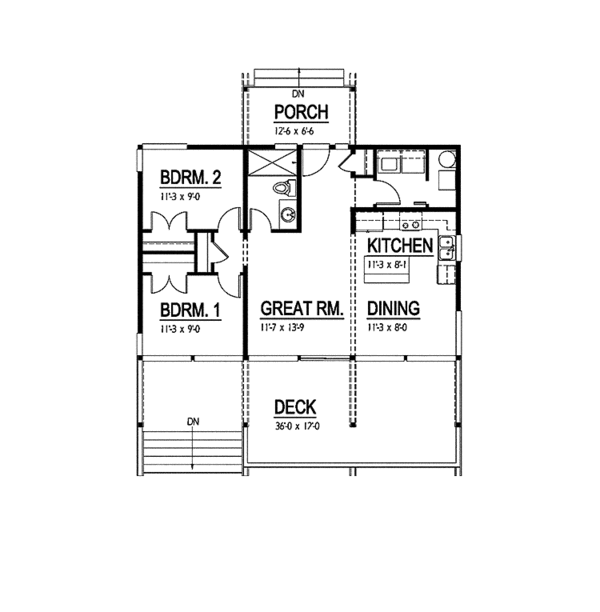

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 36'

Height : 16'

Width : 36'

Area

First Floor: 864 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 2:12

Roof Framing : Conventional

Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Outdoor Spaces

Covered Front Porch

Deck

Jack & Jill Bath

Rooms

Bedroom 1:

101 sq/ft width 11' 3" x depth 9'

Bedroom 2:

101 sq/ft width 11' 3" x depth 9'

Deck:

612 sq/ft width 36' x depth 17'

Dining Room:

90 sq/ft width 11' 3" x depth 8'

Great Room:

151 sq/ft width 11' x depth 13' 9"

Kitchen:

90 sq/ft width 11' 3" x depth 8' 1"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$650.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1300.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
