PLAN 895-160
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

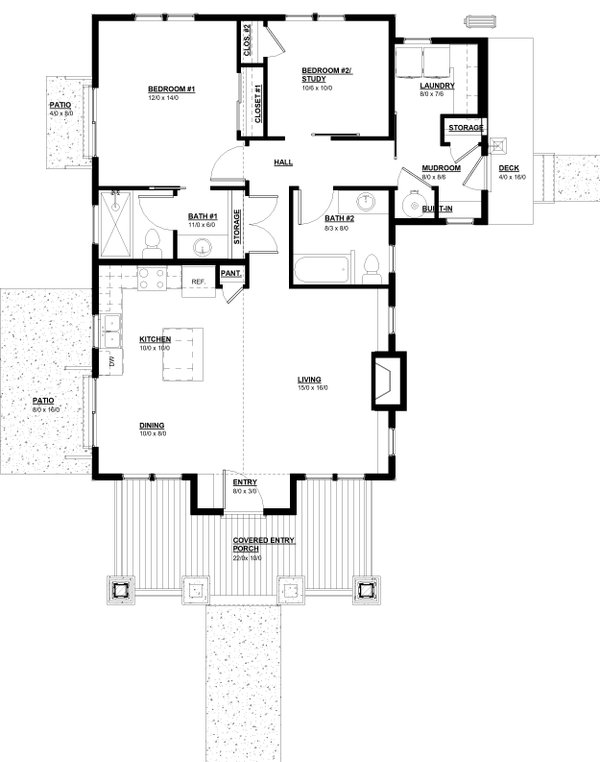

Floor Plans
Full Specs & Features
Dimension
Depth : 51'
Height : 19' 10"
Width : 40'
Area
Decks : 64 sq/ft
Main Floor : 1198 sq/ft
Patios : 160 sq/ft
Porch : 193 sq/ft
Ceiling
Ceiling Details : vaulted
Main Ceiling : 9'
Roof
Primary Pitch : 8/12
Roof Framing : truss
Roof Load : 25
Roof Type : composition
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : lap and shingles
Framing : 2x6
Insulation : Batt
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Main Floor Laundry
Mud Room
Storage Area
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
What's Included In This Plan Set
- Cover Sheet
- General Notes
- Energy Notes
- Energy Detail; drawings
- Foundation Plan: 1/4" - 1'0"
- Main and Upper Level Floor Framing: 1/4" - 1'0"
- Main and Upper Level Floor Plan: 1/4" - 1'0"
- Roof Framing Plan: 1/4" - 1'0"
- Building Sections: 1/4" - 1' 0"
- Typical Wall Section: 1/2" - 1' 0"
- Exterior Elevations
- Exterior Details
- Electrical switch and outlet plan: 1/4" - 1'0"
Plan Set
$1150.00
$1300.00
$1450.00
$1600.00
$2700.00
$950.00
$950.00
Foundation
$0.00
Framing
$0.00
Additional Options
$450.00
$165.00
$295.00
$39.00
$165.00
$150.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
