PLAN 513-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

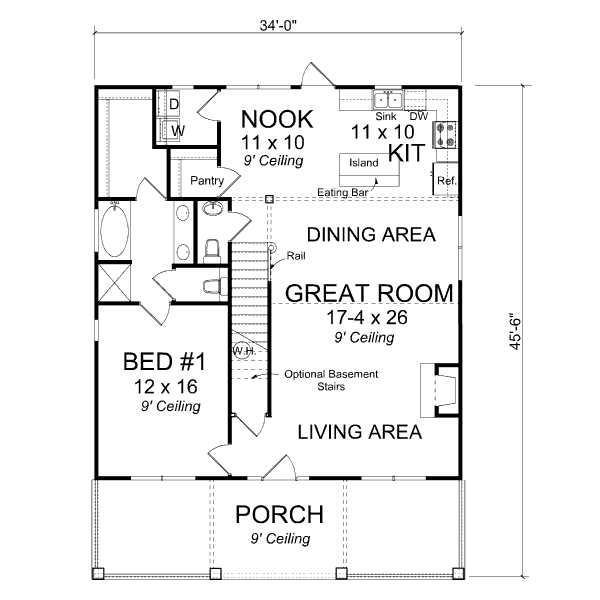

Floor Plan - Main Floor

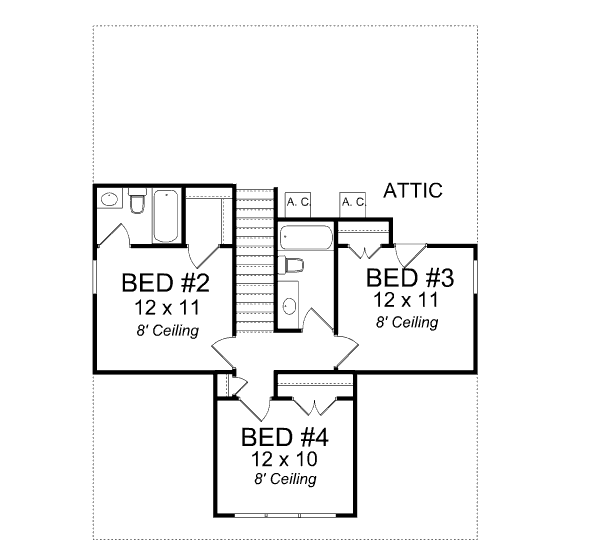

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 45' 6"
Height : 26'
Width : 34'
Area
First Floor: 1241 sq/ft
Porch: 272 sq/ft
Second Floor: 630 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Load : 30
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bathroom 2:
18 sq/ft width 3' x depth 6'
Bathroom 3:
50 sq/ft width 5' x depth 10'
Bedroom 1:
192 sq/ft width 12' x depth 16'
Bedroom 2:
132 sq/ft width 12' x depth 11'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 4:
120 sq/ft width 12' x depth 10'
Foyer:
22 sq/ft width 3' 8" x depth 6'
Great Room:
450 sq/ft width 17' 4" x depth 26'
Kitchen:
110 sq/ft width 11' x depth 10'
Kitchen Island:
16 sq/ft width 5' 6" x depth 3'
Master Bathroom:
90 sq/ft width 9' 4" x depth 9' 8"
Master Closet:
59 sq/ft width 5' 8" x depth 10' 6"
Nook:
110 sq/ft width 11' x depth 10'
Pantry:
27 sq/ft width 4' 8" x depth 5' 10"
Porch - Screened:
40 sq/ft width 5' x depth 8'
Utility Room:
33 sq/ft width 6' x depth 5' 6"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1005.00
$1300.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
