PLAN 513-2081
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

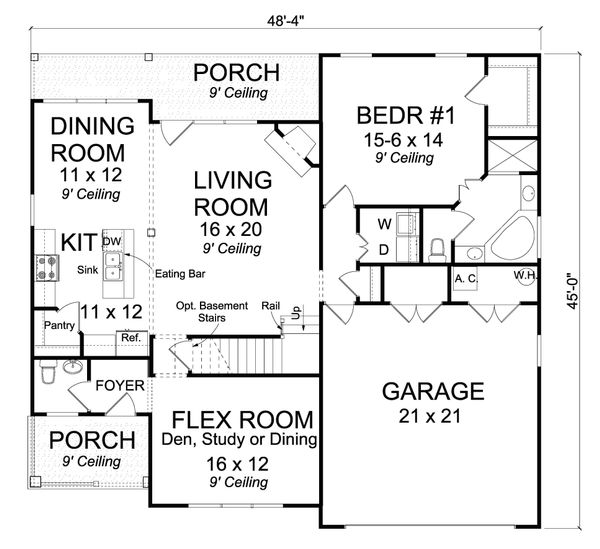

Floor Plan - Main Floor

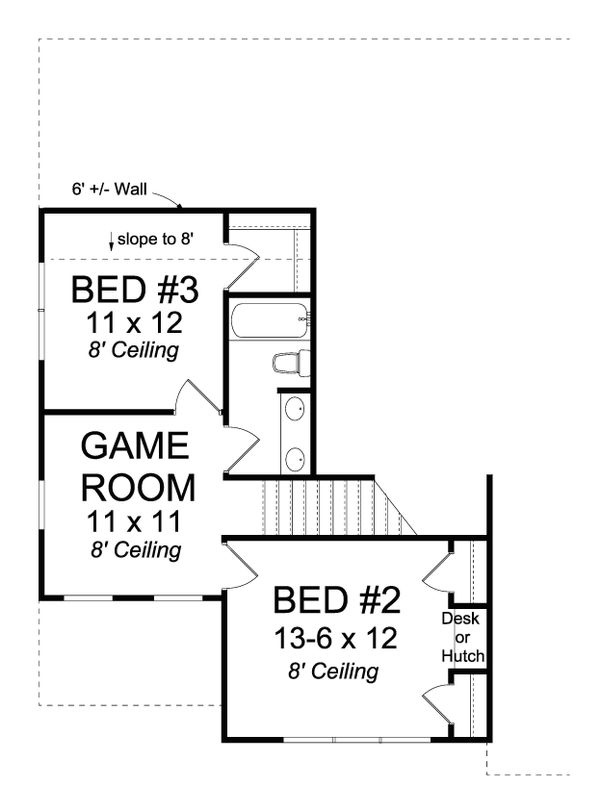

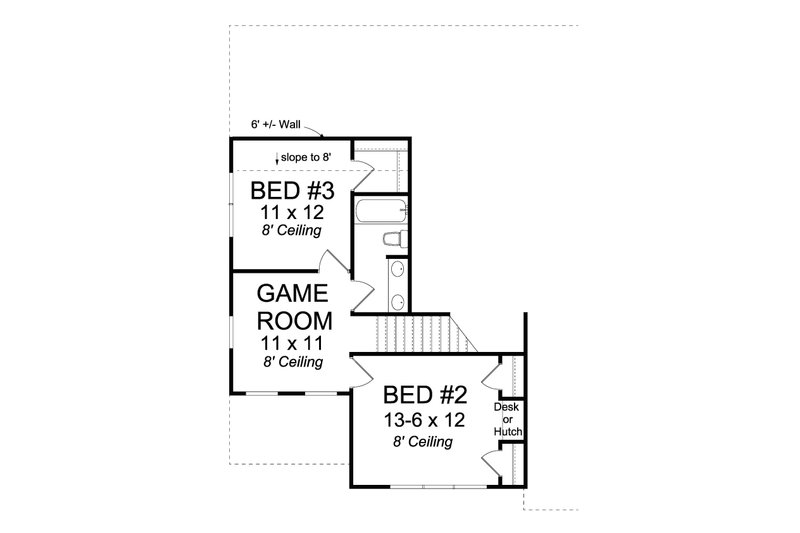

Floor Plan - Upper Floor

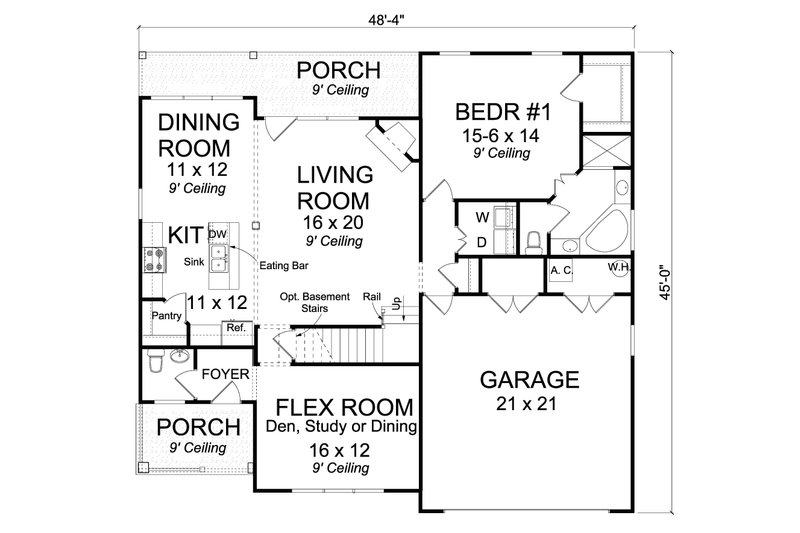

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 45'
Height : 26'
Width : 48' 4"
Area
First Floor: 1357 sq/ft height 9'
Garage: 495 sq/ft
Second Floor: 581 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Play Flex Room
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
width 5' x depth 5'
Bathroom 3:
width 5' x depth 5'
Bedroom 2:
width 13' 6" x depth 12'
Bedroom 3:
width 11' x depth 12'
Dining Room:
width 11' x depth 12'
Flex Space:
width 16' x depth 12'
Gameroom:
width 11' x depth 11'
Garage:
495 sq/ft width 21' x depth 21'
Kitchen:
width 11' x depth 12'
Kitchen Island:
width 6' 6" x depth 3'
Living Room:
width 16' x depth 20'
Master Bathroom:
width 11' x depth 11'
Master Bedroom:
width 15' 6" x depth 14'
Master Closet:
width 4' 8" x depth 7' 6"
Pantry:
width 4' 4" x depth 4' 4"
Utility Room:
width 5' 8" x depth 5' 2"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1005.00
$1300.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
