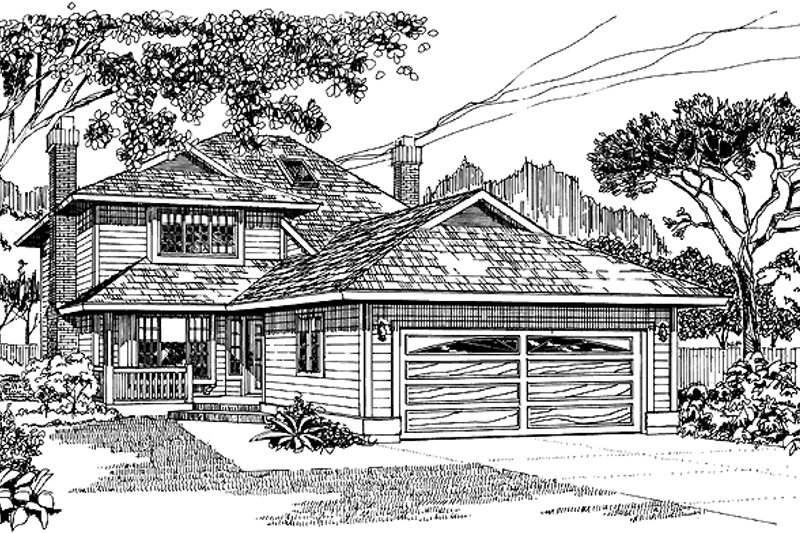

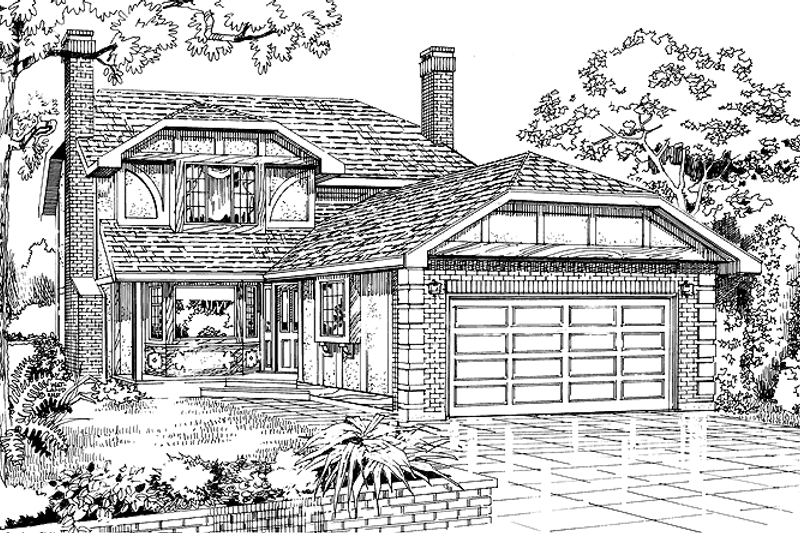

Home Plan - Craftsman Exterior - Front Elevation Plan #47-985

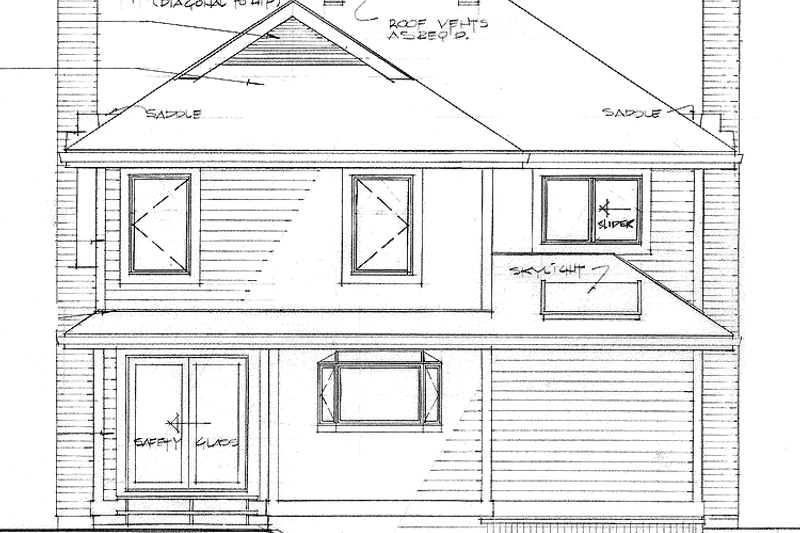

Home Plan - Craftsman Exterior - Rear Elevation Plan #47-985

Home Plan - Craftsman Floor Plan - Main Floor Plan #47-985

Home Plan - Craftsman Floor Plan - Upper Floor Plan #47-985

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1924
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$156.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$48.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$396.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$120.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$236.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$120.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$68.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$796.00

Allows you to build this home as many times as you want.

Subtotal

$1056.00 NOW $844.80

You save $211.20 (20% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-985

Home > Style > Craftsman

Key Specs

1924
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

With two exteriors to choose from--one a country cousin and one a Tudor version--this narrow lot home is designed for flexibility. Inside, the floor plan accommodates both formal and casual get-togethers. To the left, a bayed living room with a fireplace extends into a skylit dining room. Informal spaces are to the right: a cozy family room with fireplace flows into a breakfast room with sliding glass doors to the rear yard. The kitchen is conveniently central, and has a step-saving U-shaped work area. Three bedrooms are on the second floor: two family bedrooms share a full bath, and a master suite enjoys a private bath. The second-floor hall is brightened by a skylight.

Floor Plans

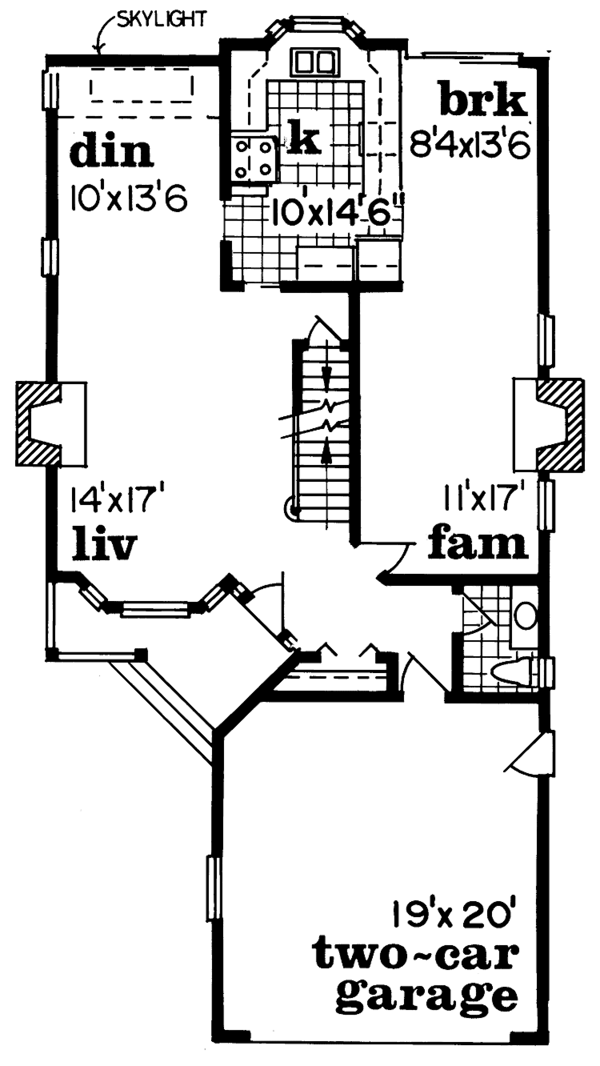

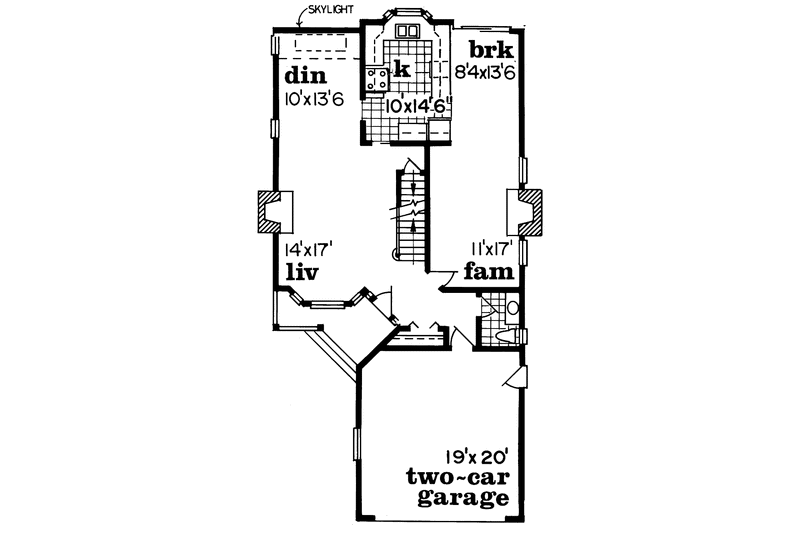

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

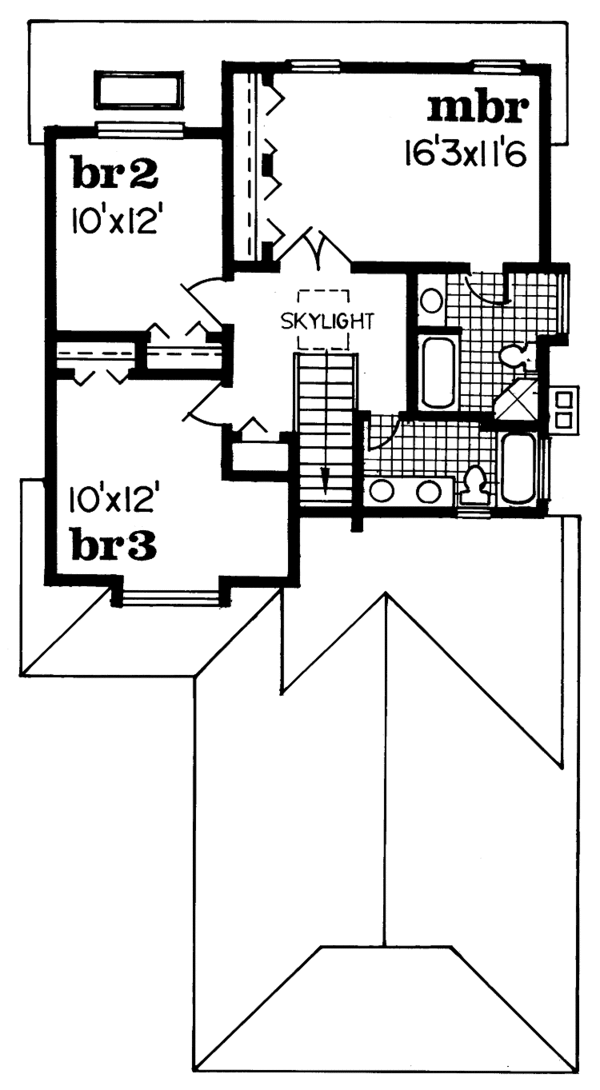

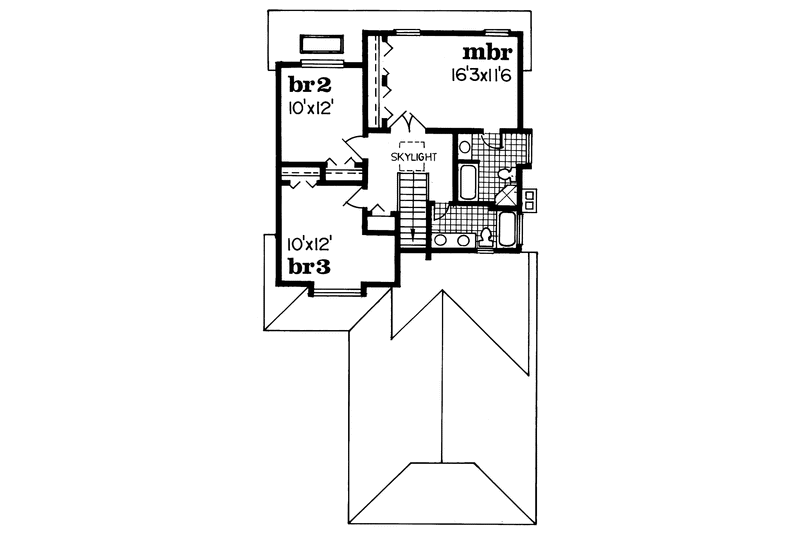

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 60'

Height : 31'

Width : 30'

Area

First Floor: 1084 sq/ft height 8'

Second Floor: 840 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Additional Room Features

Family Room Keeping Room

Outdoor Spaces

Covered Front Porch

Rooms

3rd BR Closet:

10 sq/ft width 2' 2" x depth 4' 11"

Basement Foundation:

1190 sq/ft width 39' 8" x depth 30'

Bedroom 2:

120 sq/ft width 12' x depth 10'

Bedroom 2 Closet:

10 sq/ft width 2' 2" x depth 4' 10"

Bedroom 3:

120 sq/ft width 12' x depth 10'

Bedroom 3 Closet:

10 sq/ft width 2' 2" x depth 4' 10"

Breakfast Room:

112 sq/ft width 13' 6" x depth 8' 4"

Dining Room:

135 sq/ft width 13' 6" x depth 10'

Foyer:

75 sq/ft width 7' 6" x depth 10'

Garage:

382 sq/ft width 20' 4" x depth 18' 10"

Gathering Room:

187 sq/ft width 17' x depth 11'

Hall Bathroom:

66 sq/ft width 6' x depth 11'

Hall Closet:

12 sq/ft width 2' 2" x depth 5' 8"

Kitchen:

145 sq/ft width 14' 6" x depth 10'

Master Bathroom:

74 sq/ft width 9' 8" x depth 7' 9"

Master Bedroom:

186 sq/ft width 11' 6" x depth 16' 3"

Master Closet:

23 sq/ft width 11' 6" x depth 2'

Powder Room:

37 sq/ft width 6' 8" x depth 5' 7"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
