PLAN 314-232
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 42' 4"
Height : 26'
Width : 57' 6"
Area
Bonus: 770 sq/ft height 8' 1"
First Floor: 1994 sq/ft height 10'
Garage: 424 sq/ft
Porch: 205 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry

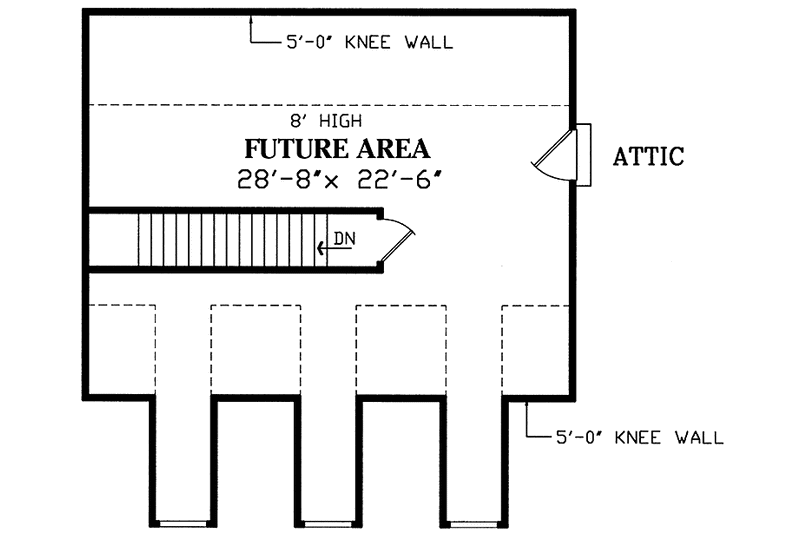

Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
10 sq/ft width 5' 4" x depth 2'
Bedroom 2:
133 sq/ft width 12' 2" x depth 11'
Bedroom 2 Closet:
12 sq/ft width 6' 4" x depth 2'
Bedroom 3:
121 sq/ft width 11' x depth 11'
Bedroom 3 Closet:
12 sq/ft width 6' 4" x depth 2'

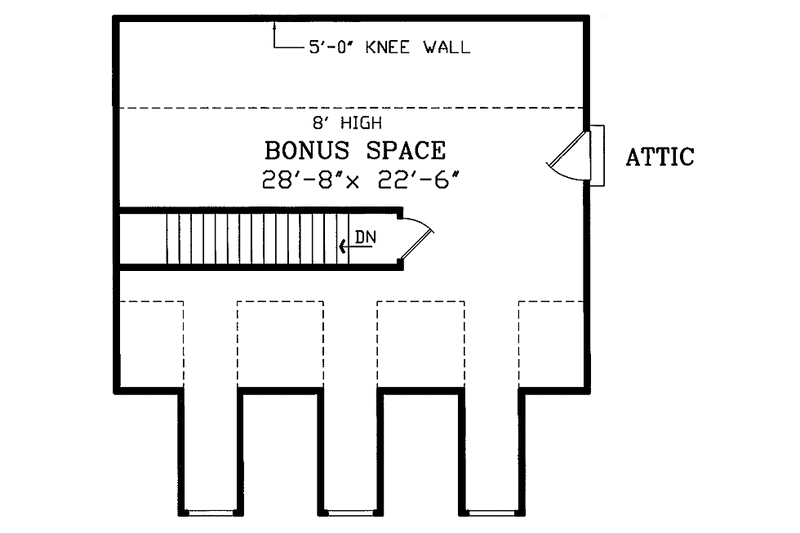

Bonus Room - Finished:
645 sq/ft width 28' 8" x depth 22' 6"
Breakfast Room:
99 sq/ft width 10' 6" x depth 9' 6"
Dining Room:
153 sq/ft width 11' 6" x depth 13' 4"
Foyer:
74 sq/ft width 5' x depth 14' 10"
Garage:
400 sq/ft width 20' x depth 20'
Gathering Room:
357 sq/ft width 18' 2" x depth 19' 8"
Hall:
width 3' 2" x depth 0"
Hall Bathroom:
40 sq/ft width 8' x depth 5'
Hall Closet:
6 sq/ft width 3' 4" x depth 2'
Kitchen:
153 sq/ft width 11' 10" x depth 13'
Laundry Room:
48 sq/ft width 6' x depth 8'
Master Bathroom:
160 sq/ft width 10' x depth 16'
Master Bedroom:
221 sq/ft width 13' x depth 17'
Master Closet:
61 sq/ft width 7' 8" x depth 8'
Parlor:
126 sq/ft width 11' 6" x depth 11'
Porch - Front:
205 sq/ft width 29' 4" x depth 7'
Walk-In Closet:
49 sq/ft width 6' 6" x depth 7' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

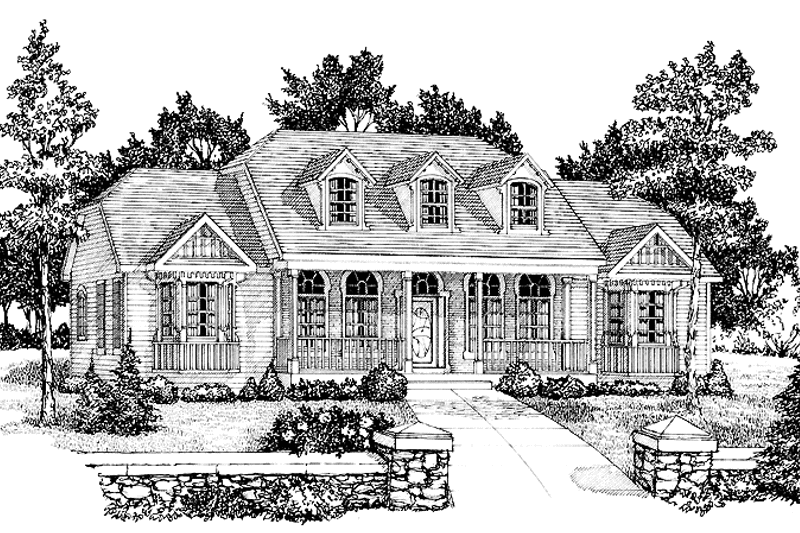

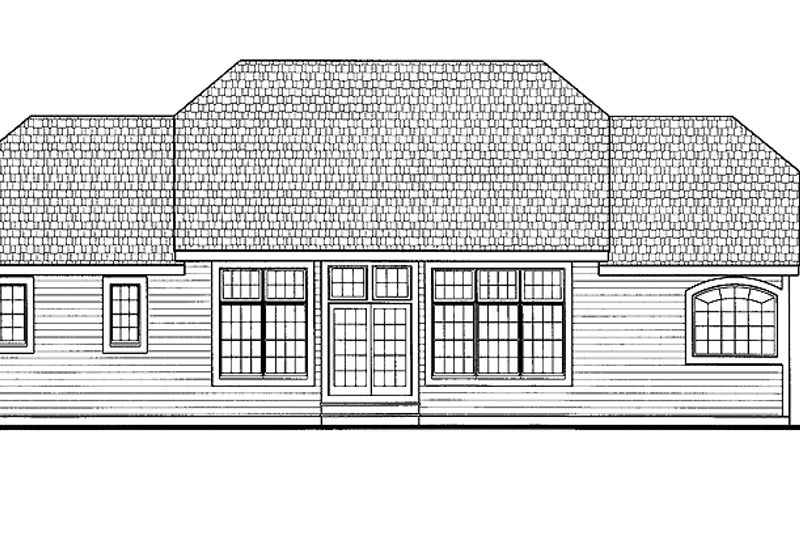

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

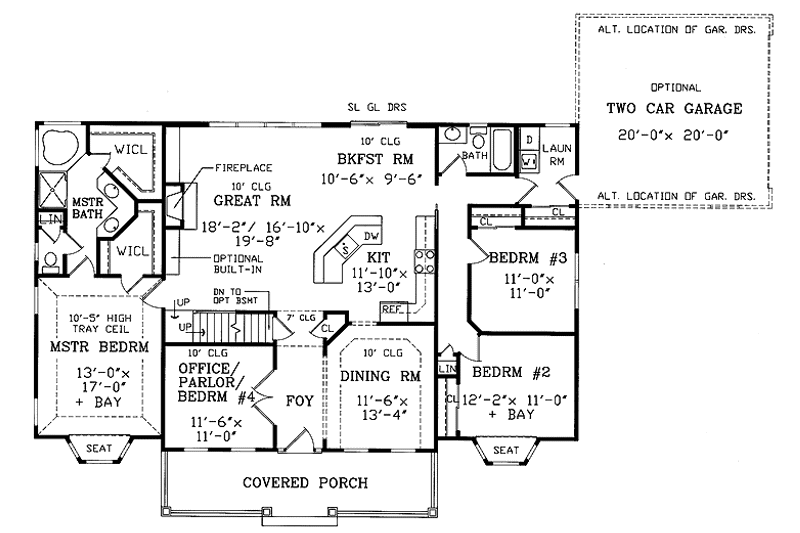

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$845.75
$939.25
$1003.00
$1011.50
$1610.75
Foundation
$0.00
$0.00
$85.00
Framing
$0.00
$127.50
Additional Options
$297.50
$42.50
$85.00
$33.15
$80.75
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
