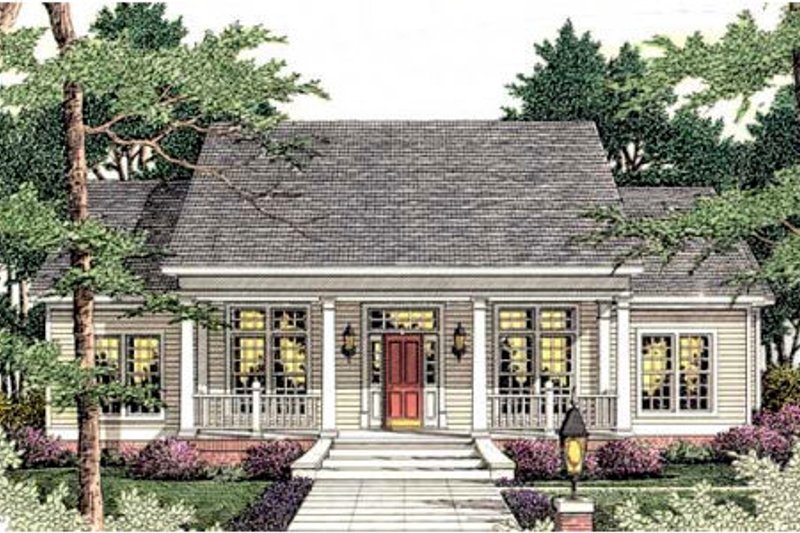

Home Plan - Southern Exterior - Front Elevation Plan #406-284

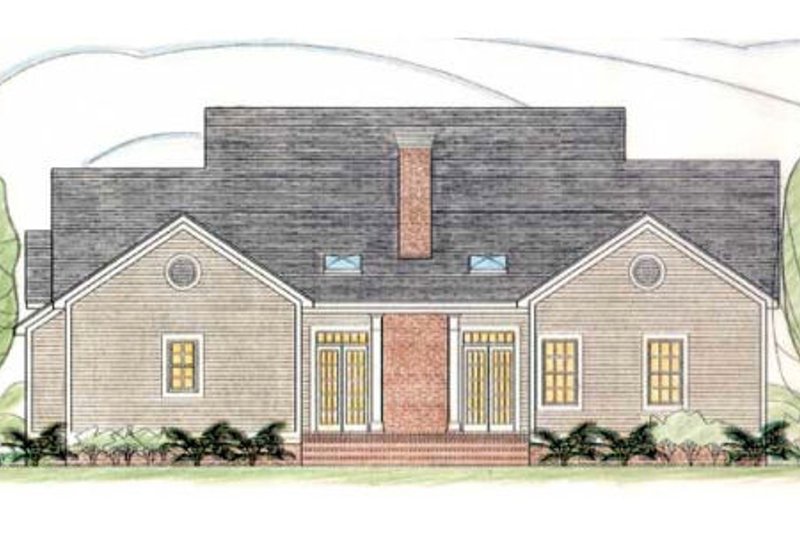

Home Plan - Southern Exterior - Rear Elevation Plan #406-284

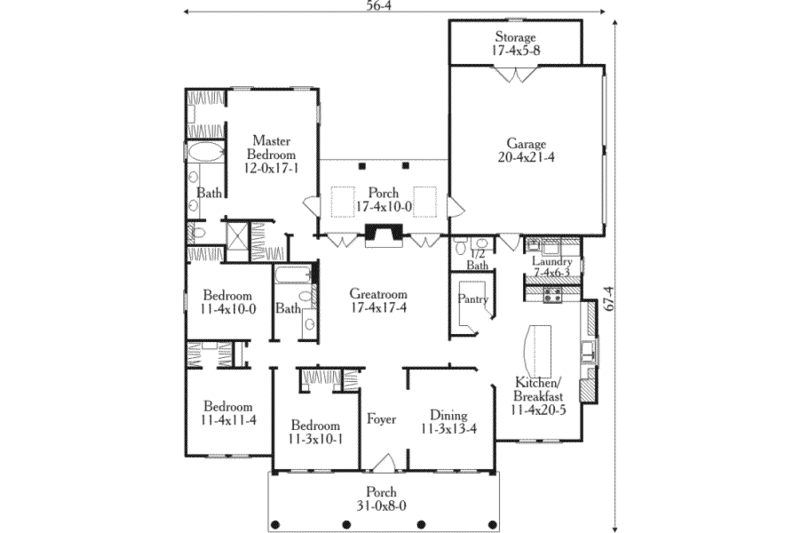

Home Plan - Southern Floor Plan - Main Floor Plan #406-284

Jump to:
All (4)
Exterior (3)
Floor plans (1)

Get Personalized Help

Home > Style > Southern

Key Specs

1997
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$255.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1160.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 406-284

Home > Style > Southern

Key Specs

1997
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This southern design floor plan is 1997 sq ft and has 4 bedrooms and 2.5 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 67' 4"

Height : 25'

Width : 56' 4"

Area

First Floor: 1997 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

113 sq/ft width 11' 3" x depth 10' 1"

Bedroom 3:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 4:

113 sq/ft width 11' 4" x depth 10'

Dining Room:

153 sq/ft width 11' 3" x depth 13' 8"

Garage:

433 sq/ft width 20' 4" x depth 21' 4"

Garage Storage:

98 sq/ft width 17' 4" x depth 5' 8"

Hall Bathroom:

58 sq/ft width 5' 10" x depth 10'

Laundry Room:

45 sq/ft width 7' 4" x depth 6' 3"

Living Room:

300 sq/ft width 17' 4" x depth 17' 4"

Master Bathroom:

70 sq/ft width 14' x depth 5'

Master Bedroom:

204 sq/ft width 12' x depth 17' 1"

Porch - Front:

248 sq/ft width 31' x depth 8'

Porch - Rear:

173 sq/ft width 17' 4" x depth 10'

Powder Room:

25 sq/ft width 4' 6" x depth 5' 8"
