PLAN 20-1874
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

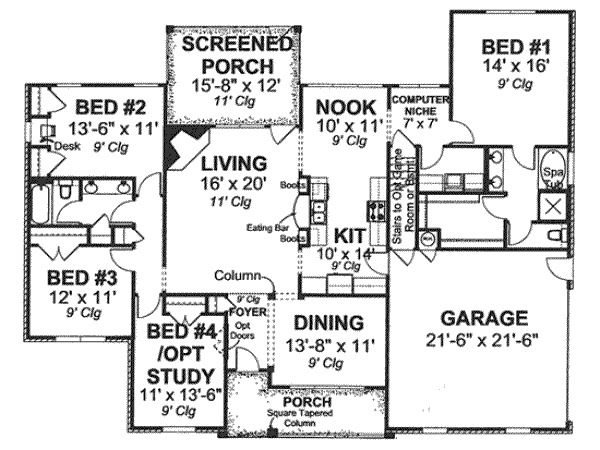

Floor Plans
Full Specs & Features
Dimension
Depth : 52'
Height : 23'
Width : 65'
Area
Bonus: 280 sq/ft
First Floor: 2017 sq/ft
Garage: 534 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Rooms
Bathroom 2:
66 sq/ft width 12' x depth 5' 6"
Bedroom 1:
224 sq/ft width 14' x depth 16'
Bedroom 2:
148 sq/ft width 13' 6" x depth 11'
Bedroom 3:
132 sq/ft width 12' x depth 11'
Bedroom 4:
224 sq/ft width 14' x depth 16'
Bonus Room - Finished:
264 sq/ft width 12' x depth 22'
Computer Room:
49 sq/ft width 7' x depth 7'
Dining Room:
150 sq/ft width 13' 8" x depth 11'
Foyer:
45 sq/ft width 5' x depth 9'
Garage:
462 sq/ft width 21' 6" x depth 21' 6"
Kitchen:
140 sq/ft width 10' x depth 14'
Living Room:
320 sq/ft width 16' x depth 20'
Master Bathroom:
114 sq/ft width 9' 6" x depth 12'
Master Closet:
67 sq/ft width 10' 4" x depth 6' 6"
Nook:
110 sq/ft width 10' x depth 11'
Porch - Screened:
192 sq/ft width 16' x depth 12'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

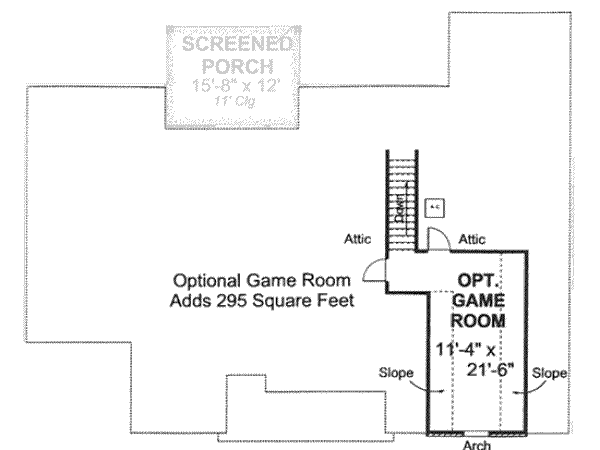

- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$871.25
$1122.00
Foundation
$0.00
$165.75
$165.75
Framing
$0.00
$165.75
Additional Options
$165.75
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
