Key Specs
2048
sq ft
3
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 569-16
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

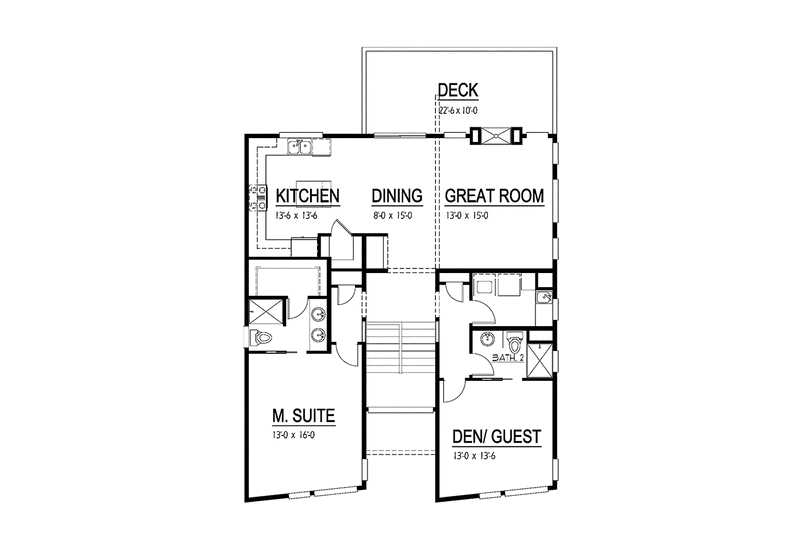

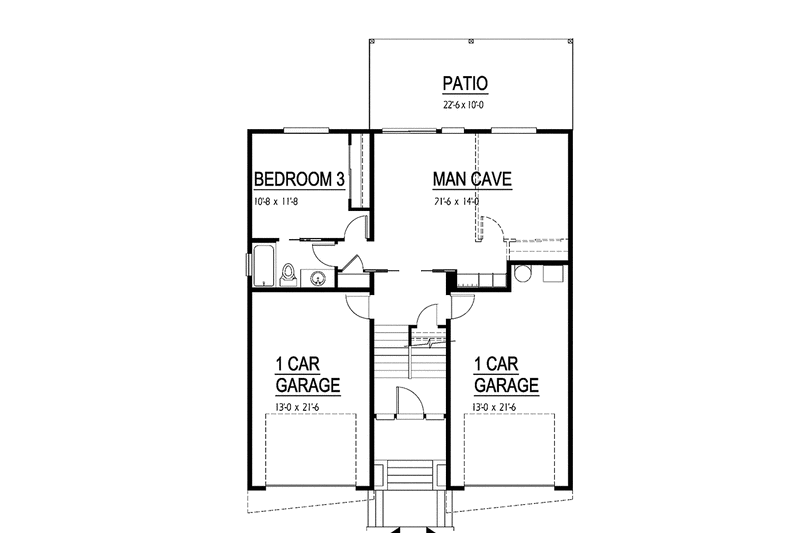

Floor Plans
Full Specs & Features
Dimension
Depth : 36'
Height : 24' 3"
Width : 36'
Area
First Floor: 753 sq/ft height 9'
Garage: 624 sq/ft height 9'
Second Floor: 1295 sq/ft height 9'
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Siding/Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Guest Suite
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Media Room
Open Floor Plan
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch
Deck
Outdoor Fireplace
Rooms
Bedroom 3:
124 sq/ft width 10' 8" x depth 11' 8"
Deck:
225 sq/ft width 22' 6" x depth 10'
Dining Room:
120 sq/ft width 8' x depth 15'
Garage:
279 sq/ft width 13' x depth 21' 6"
Garage Two:
279 sq/ft width 13' x depth 21' 6"
Great Room:
195 sq/ft width 13' x depth 15'
Guest Bedroom:
175 sq/ft width 13' x depth 13' 6"
Kitchen:
182 sq/ft width 13' 6" x depth 13' 6"
Master Suite:
208 sq/ft width 13' x depth 16'
Patio:
225 sq/ft width 22' 6" x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$860.00
$1720.00
Foundation
$0.00
Framing
$0.00
Additional Options
$165.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
