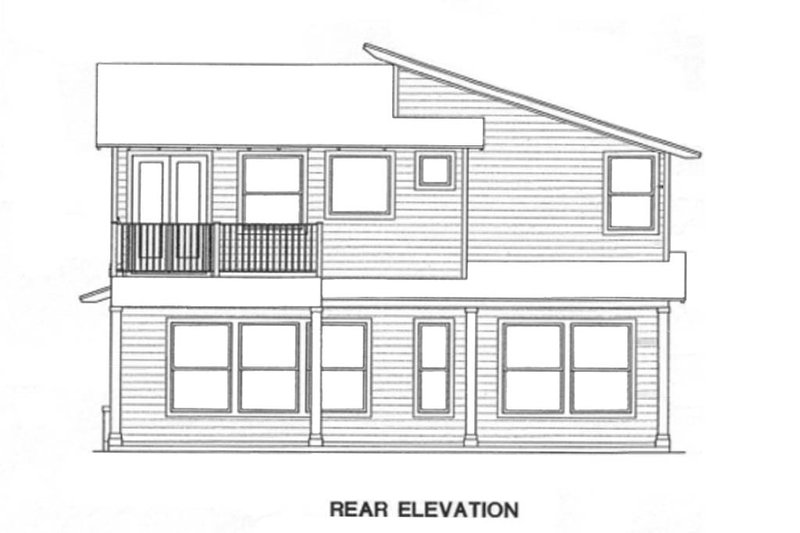

Home Plan - Modern Exterior - Rear Elevation Plan #472-8

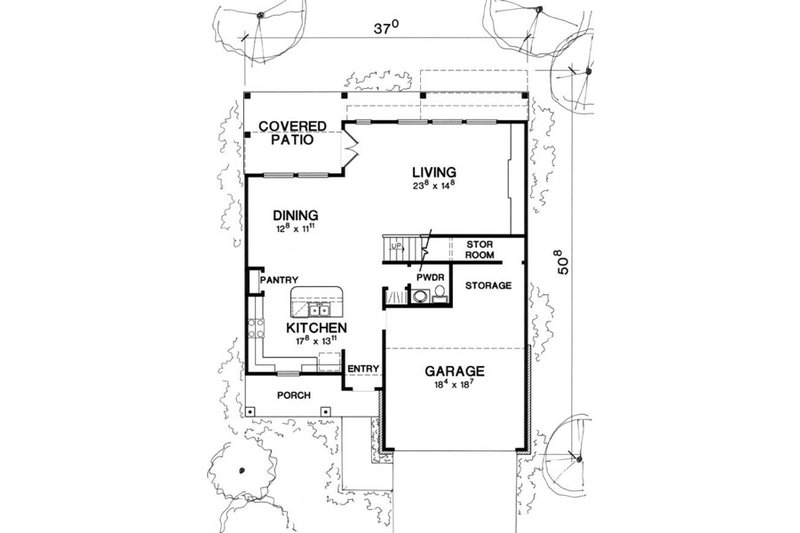

Home Plan - Modern Floor Plan - Main Floor Plan #472-8

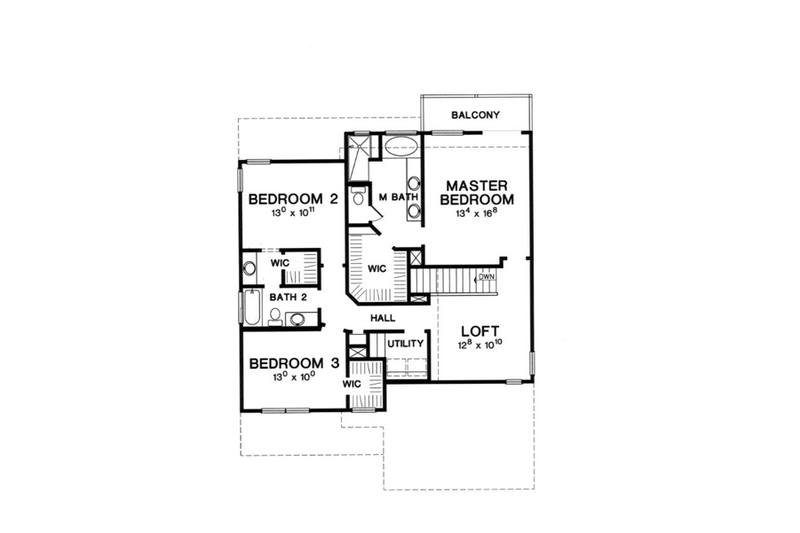

Home Plan - Modern Floor Plan - Upper Floor Plan #472-8

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Modern

Key Specs

2090
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1445.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 472-8

Home > Style > Modern

Key Specs

2090
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Stand out on a smallish lot with this fun modern home design. The main level flows out from the living room to a back covered patio for easy indoor-outdoor movement. An island in the kitchen overlooks the casual dining room. On the second level, the master suite boasts a big shower, two sinks, separate tub, and even a private balcony. Two additional bedrooms share the hall bath and each include a walk-in closet. The loft can become a reading area or open office.

Floor Plans

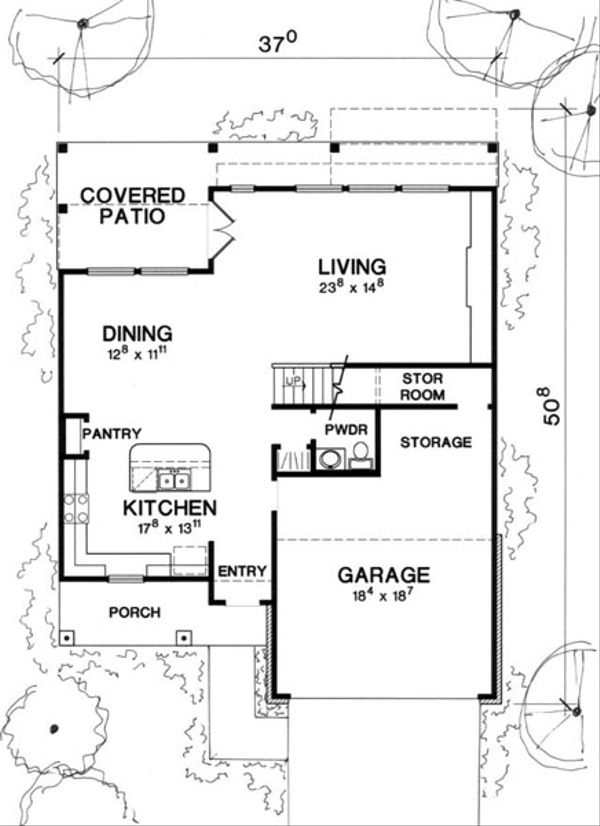

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

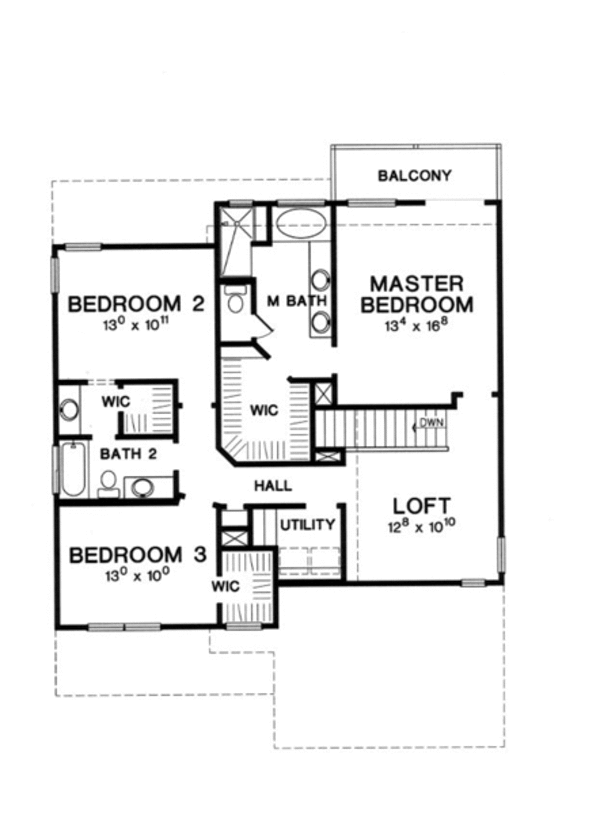

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 50' 8"

Height : 27' 6"

Width : 37'

Area

First Floor: 923 sq/ft height 10'

Garage: 448 sq/ft height 10'

Second Floor: 1167 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 4:12

Roof Framing : stick

Exterior Wall Framing

Exterior Wall Finish : Siding/Stucco

Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Loft

Storage Area

Upstairs Laundry

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Structural Information Provided

Foundation Drawing

Rooms

Bedroom 2:

141 sq/ft width 13' x depth 10' 11"

Bedroom 3:

130 sq/ft width 13' x depth 10'

Dining Room:

150 sq/ft width 12' 8" x depth 11' 11"

Garage:

340 sq/ft width 18' 4" x depth 18' 7"

Kitchen:

245 sq/ft width 17' 8" x depth 13' 11"

Living Room:

347 sq/ft width 23' 8" x depth 14' 8"

Loft:

137 sq/ft width 12' 8" x depth 10' 10"

Master Bedroom:

222 sq/ft width 13' 4" x depth 16' 8"
