PLAN 314-188
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

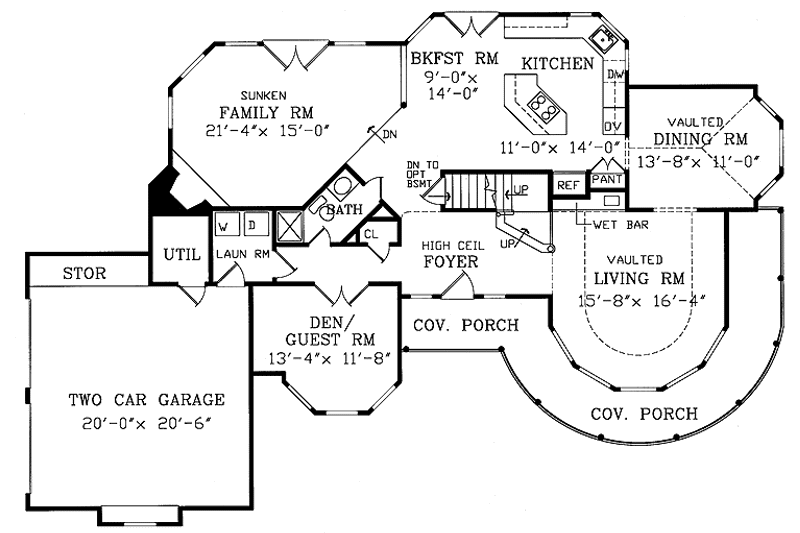

Floor Plans
Full Specs & Features
Dimension
Depth : 47' 6"
Height : 27'
Width : 69' 2"
Area
First Floor: 1499 sq/ft height 8'
Second Floor: 956 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Wrap Around Porch
Rooms
3rd BR Closet:
9 sq/ft width 4' 6" x depth 2'
Bathroom 2:
37 sq/ft width 8' 5" x depth 4' 6"
Bedroom 2:
135 sq/ft width 10' x depth 13' 6"
Bedroom 2 Closet:
21 sq/ft width 6' 8" x depth 3' 2"
Bedroom 3:
124 sq/ft width 11' x depth 11' 4"
Bedroom 3 Closet:
21 sq/ft width 6' 8" x depth 3' 2"
Breakfast Room:
125 sq/ft width 8' 10" x depth 14' 2"
Den/Office or Bedroom 1:
155 sq/ft width 13' 4" x depth 11' 8"
Dining Room:
150 sq/ft width 13' 8" x depth 11'
Foyer:
103 sq/ft width 13' 6" x depth 7' 8"
Garage:
410 sq/ft width 20' x depth 20' 6"
Garage Storage:
35 sq/ft width 12' 8" x depth 2' 10"
Gathering Room:
312 sq/ft width 21' 4" x depth 14' 8"
Hall Bathroom:
40 sq/ft width 5' x depth 8'
Hall Closet:
6 sq/ft width 3' 4" x depth 2'
Kitchen:
155 sq/ft width 11' x depth 14' 2"
Living Room:
255 sq/ft width 15' 8" x depth 16' 4"
Master Bathroom:
93 sq/ft width 8' 2" x depth 11' 6"
Master Bedroom:
299 sq/ft width 20' 8" x depth 14' 6"
Master Closet:
69 sq/ft width 6' x depth 11' 6"
Porch - Front:
174 sq/ft width 34' 10" x depth 5'
Porch - Right:
83 sq/ft width 16' 8" x depth 5'
Utility Room:
34 sq/ft width 5' 2" x depth 6' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

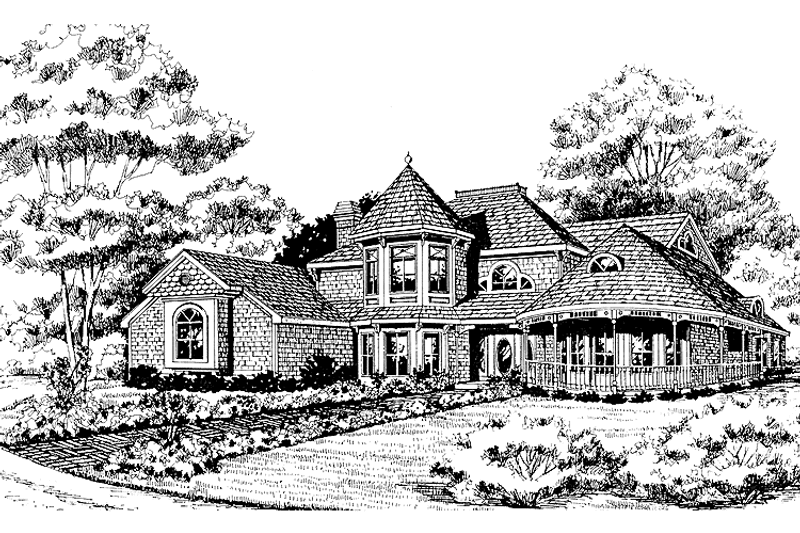

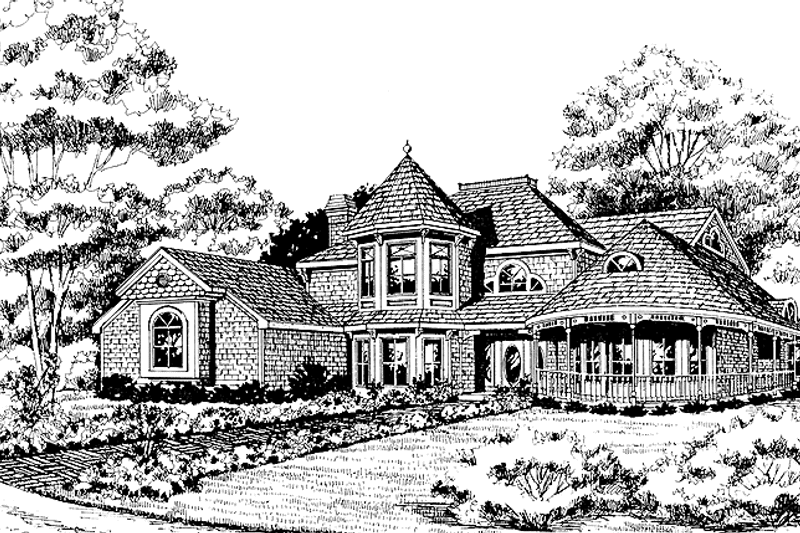

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

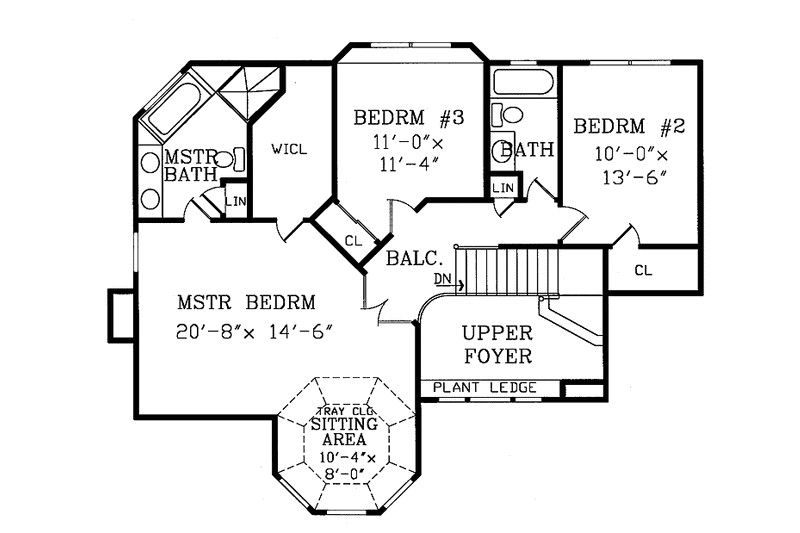

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$956.25
$1049.75
$1113.50
$1122.00
$1780.75
Foundation
$0.00
$0.00
$127.50
Framing
$0.00
$127.50
Additional Options
$297.50
$42.50
$85.00
$33.15
$80.75
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
