PLAN 927-541
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Check out the optional third floor of this smart family home: with so much space, it could house a variety of recreational activites, or perhaps a home-based business. Family quarters are one floor below, including the luxurious master suite and its extensive bathroom. One of the other bedrooms has its own bath, and the other two enjoy walk-in closets. Everyone accesses the convenient second-floor laundry room. Head downstairs to the open gathering rooms, which include the cozy grand room and the island kitchen with a nearby deck. Best of all, this plan fits onto a small lot with a simple footprint that's easy to build.Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

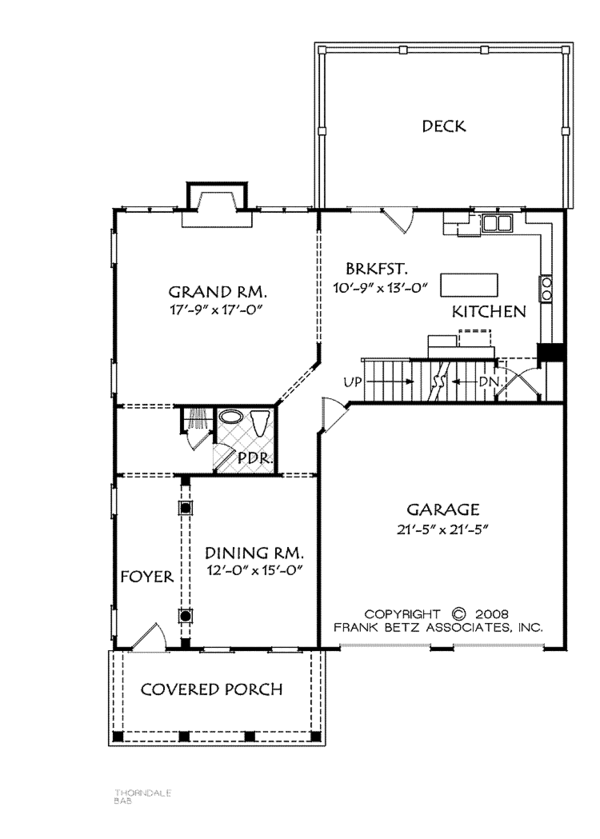

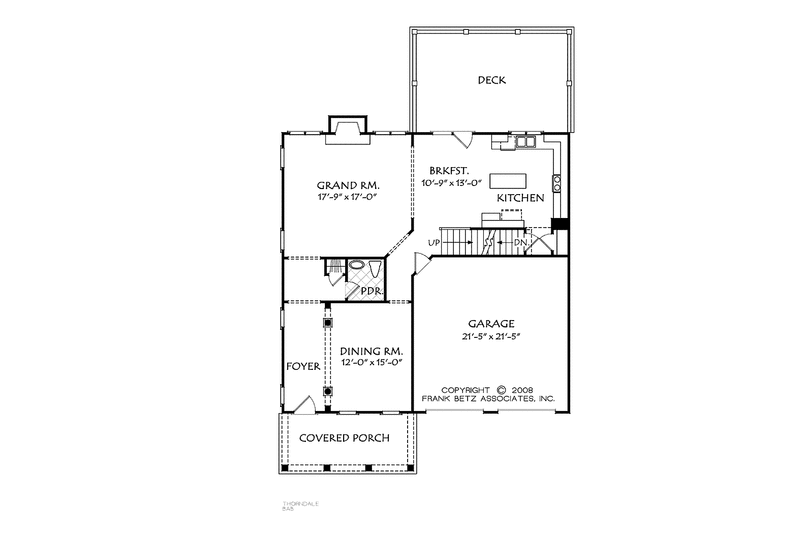

Floor Plan - Main Floor

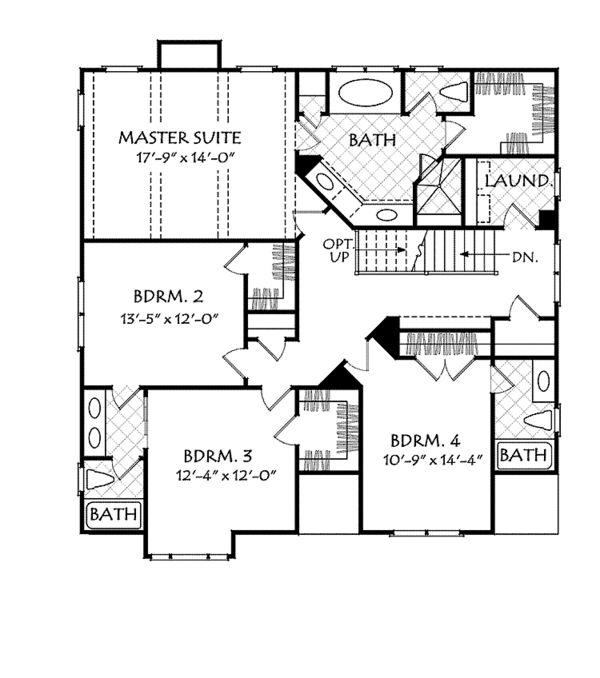

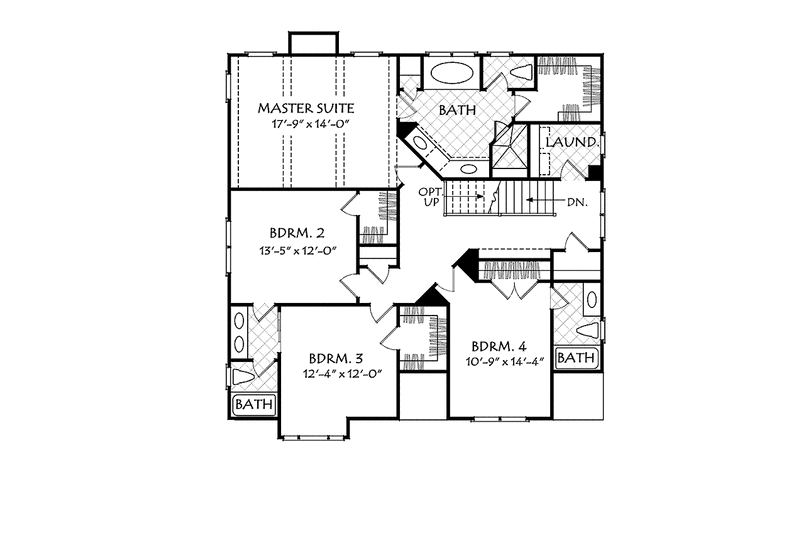

Floor Plan - Upper Floor

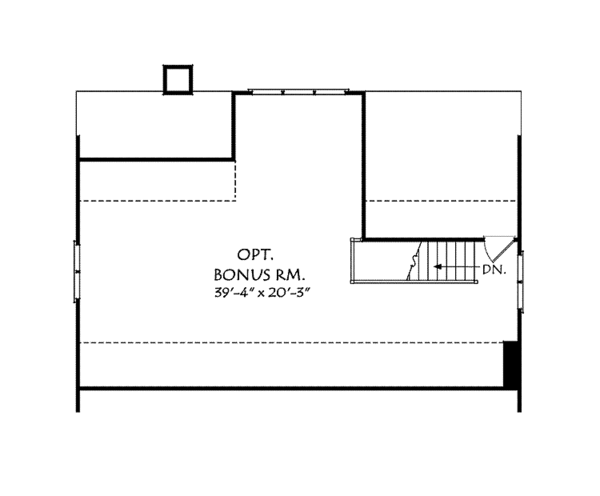

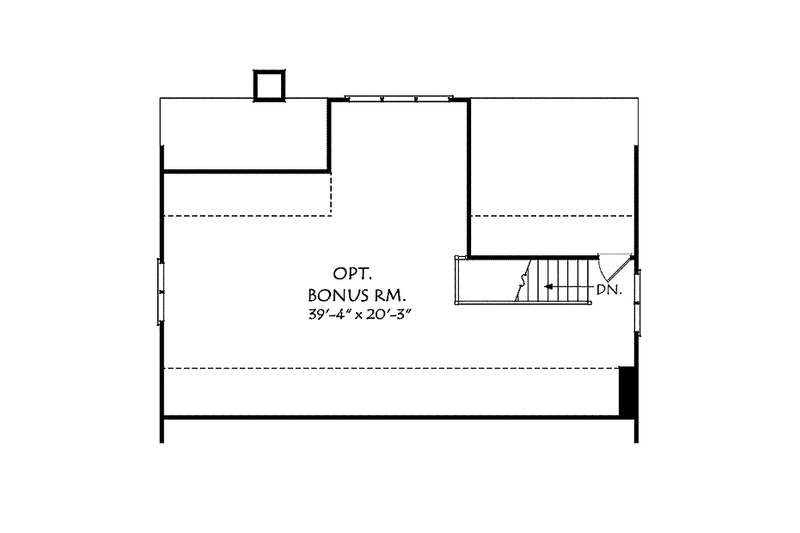

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 49' 4"
Height : 35'
Width : 40'
Area
Basement Unfinished: 1092 sq/ft height 9'
Bonus: 799 sq/ft height 9'
First Floor: 1092 sq/ft height 9'
Garage: 468 sq/ft height 9'
Second Floor: 1484 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Upstairs Master Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Open Floor Plan
Unfinished Future Space
Upstairs Laundry
Outdoor Spaces
Covered Front Porch
Deck
More
Jack & Jill Bath
Rooms
Bedroom 2:
161 sq/ft width 13' 5" x depth 12'
Bedroom 3:
147 sq/ft width 12' 4" x depth 12'
Bedroom 4:
154 sq/ft width 10' 9" x depth 14' 4"
Bonus Room - Finished:
796 sq/ft width 39' 4" x depth 20' 3"
Breakfast:
139 sq/ft width 10' 9" x depth 13'
Dining Room:
180 sq/ft width 12' x depth 15'
Foyer:
86 sq/ft width 5' 9" x depth 15'
Garage:
458 sq/ft width 21' 5" x depth 21' 5"
Grand Room:
301 sq/ft width 17' 9" x depth 17'
Kitchen:
156 sq/ft width 12' x depth 13'
Laundry Room:
43 sq/ft width 7' 6" x depth 5' 9"
Master Bathroom:
156 sq/ft width 12' x depth 13'
Master Bedroom:
248 sq/ft width 17' 9" x depth 14'
Master Closet:
47 sq/ft width 6' 9" x depth 7'
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
