PLAN 17-2193
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Front Porch with 8 inch columns and 11 ft ceiling Foyer with 10 ft
ceiling and open to Dining and Great Rooms Dining Room with 8 inch
columns and 10 ft ceiling Great Room with 10 ft ceiling, fireplace and
Media Center with French doors to Grilling Porch Ktichen with island bar
seating open to Hearth Room Hearth Room with optional Computer Center
and fireplace Breakfast Room with access to Grilling Porch Bedroom
4/In-laws Suite with private bath Master Suite with Sitting Room Master
Bath with split vanities, walkin closet and corner whirlpool tub Bedroom
3 and 4 with access to bath.
Room Sizes:
Front Porch 18'-0"x5'-0" 11' Ceiling
Foyer 7'-0"x12'-6" 10' Ceiling
Dining Room 11'-0"x12'-6" 10' Ceiling
Great Room 18'-0"x21'-4" 10' Ceiling
Kitchen 10'-4"x15'-0"
Hearth Room 11'-0"x14'-0"
Breakfast Room 11'-0"x11'-0"
Bedroom 4/In-law 15'-2'x13'-6"
Bdrm 4 Bath 10'-8"x15'-8"
Grilling Porch 28'-4"x7'-8" 10' Columns
Bedroom 2/Study 14'-0"x12'-0"
Bedroom 3 11'-4"x12'-0"
Jack & Jill Bath 11'-4"x14'-0"
Master Suite 13'-6"x18'-9"
Sitting Room 9'-4"x9'-4"
Mstr. Bath 11'-8"x22'-0"
2 car garage 21'-4"x23'-0"
1 car garage 21'-4"x11'-0"

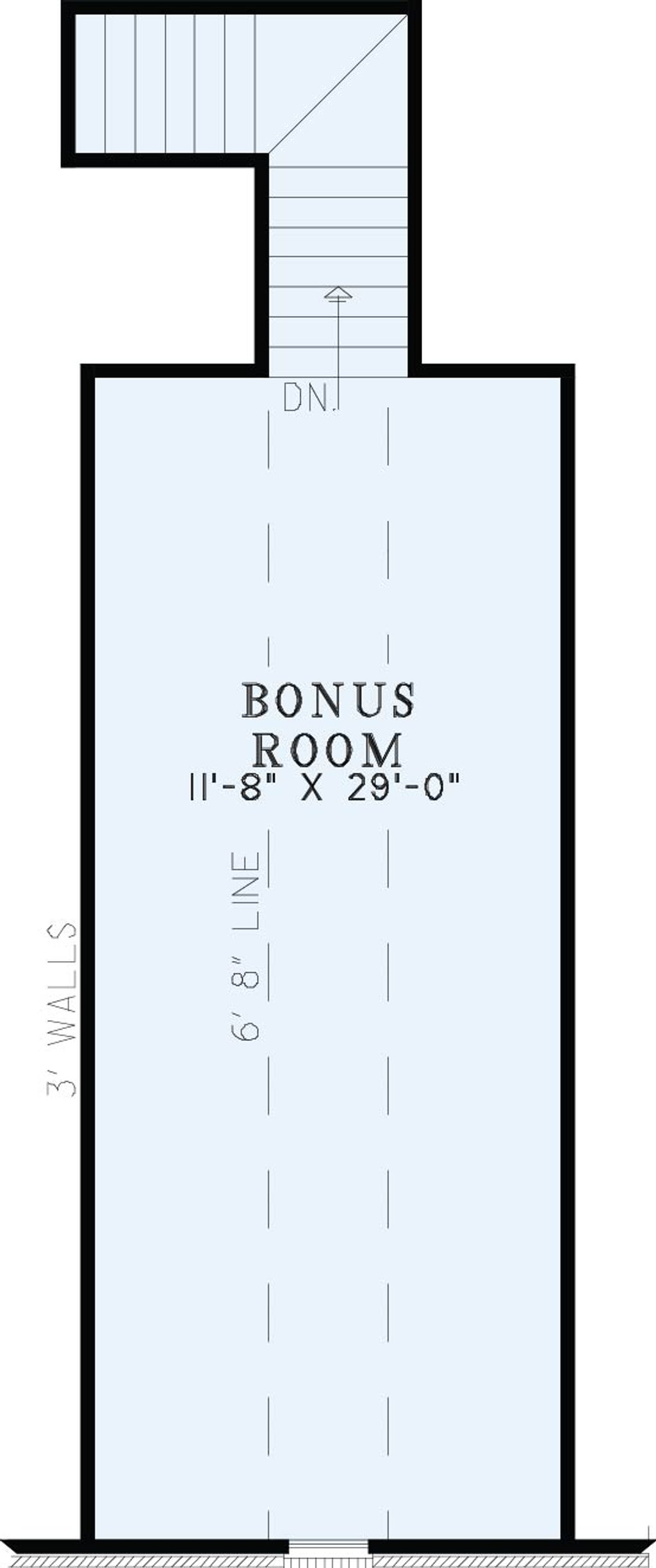

Bonus Room 11'-8"x29'-0" 6'-8" ceiling
Floor Plans

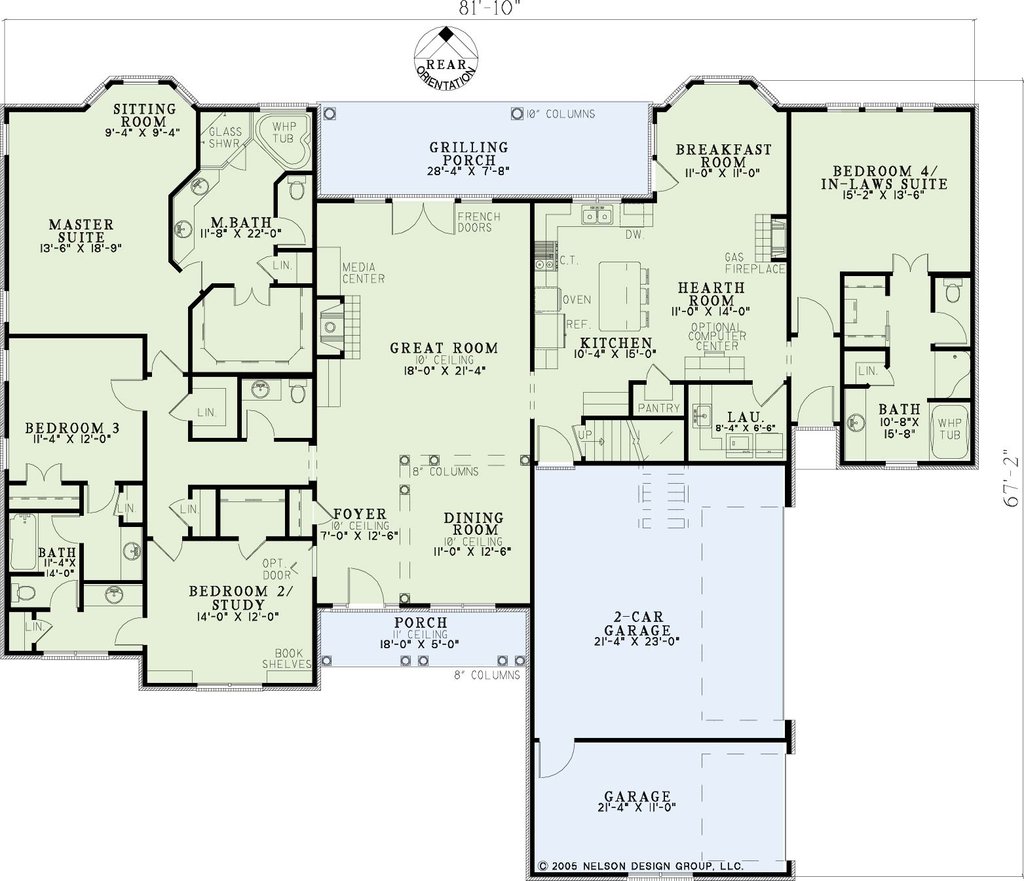

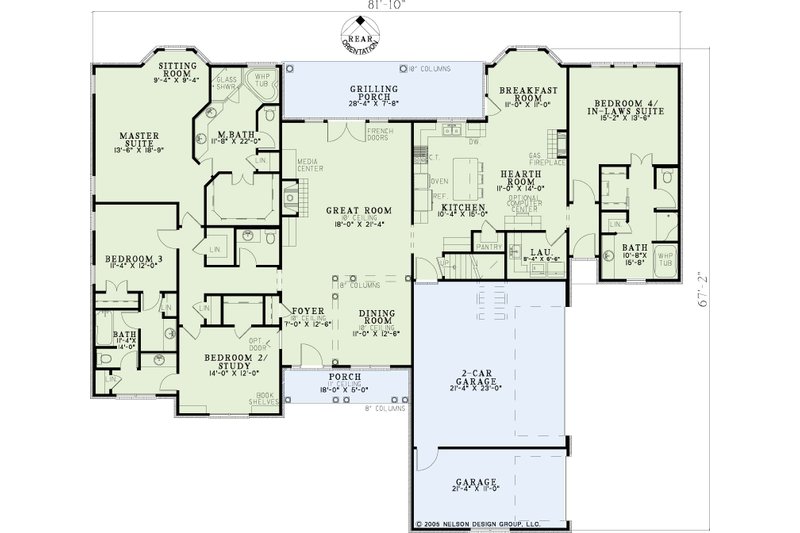

Floor Plan - Main Floor

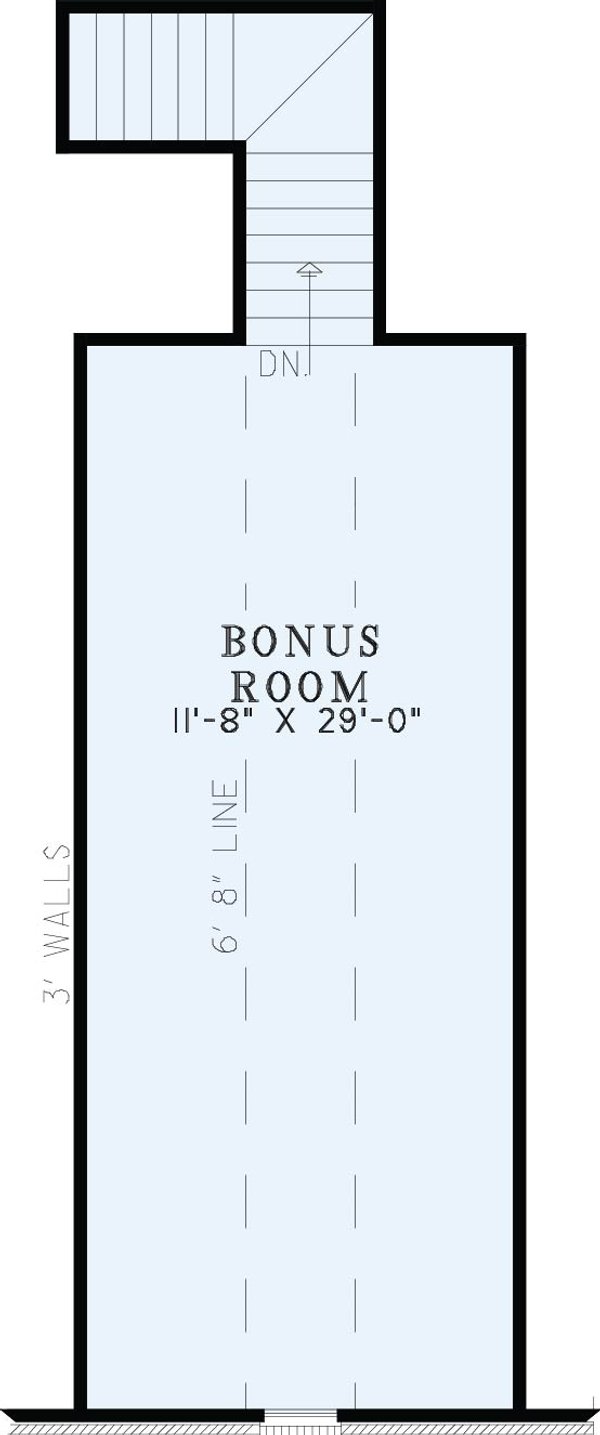

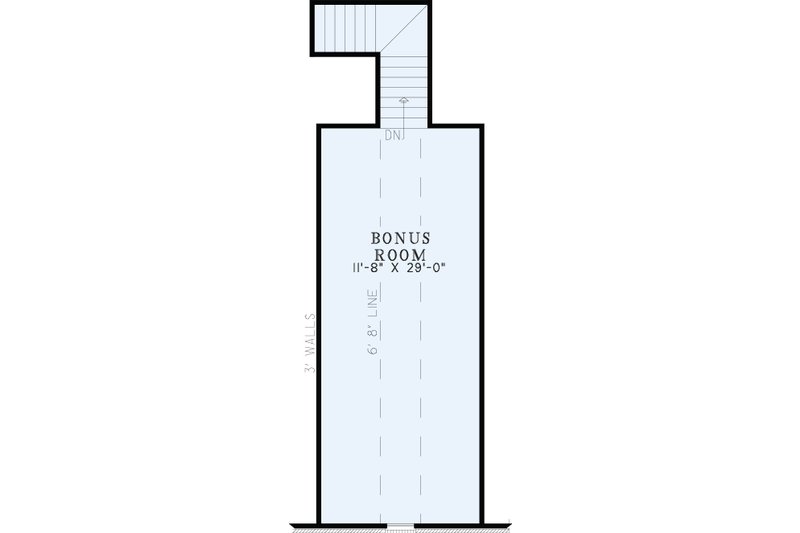

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 67'
Width : 82'
Area
Bonus : 359 sq/ft
Garage : 759 sq/ft
Main Floor : 2952 sq/ft
Porch : 321 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Master Sitting Area
Play Flex Room
Garage Features
Oversized Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

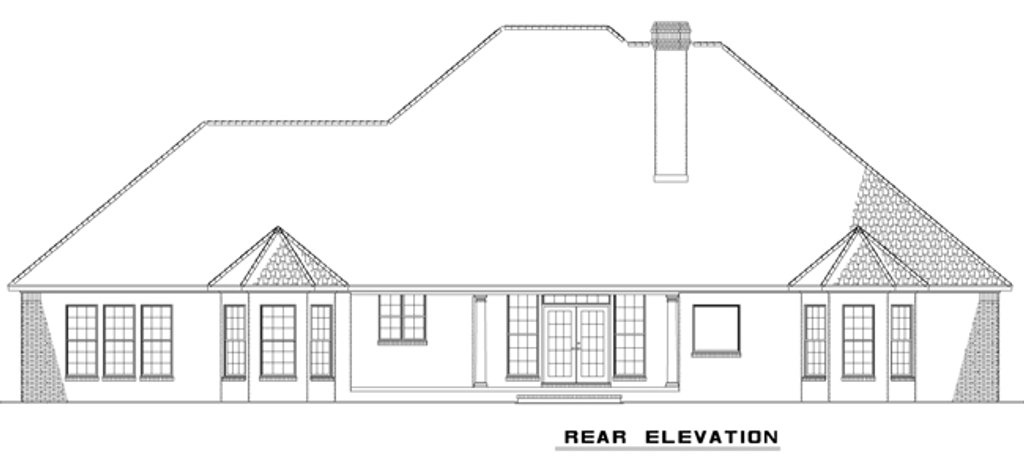

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
