PLAN 51-1060

Photographs may show modified designs.

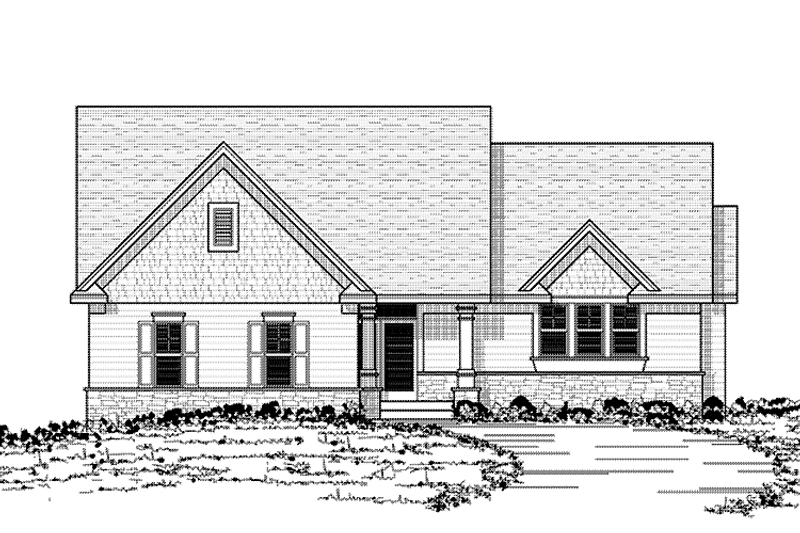

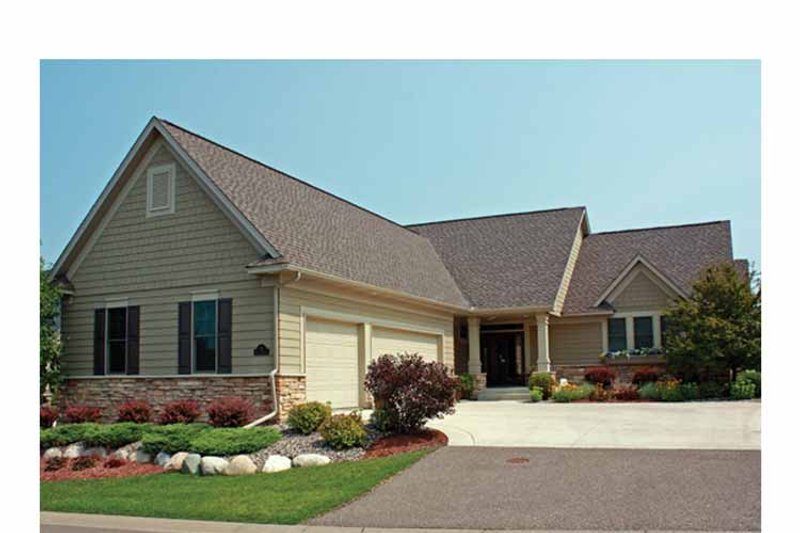

Home Plan - Ranch Exterior - Front Elevation Plan #51-1060

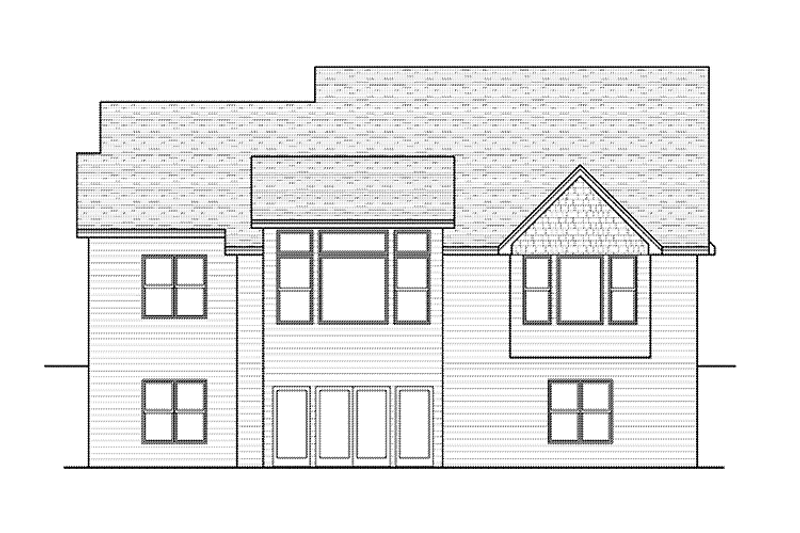

Home Plan - Ranch Exterior - Rear Elevation Plan #51-1060

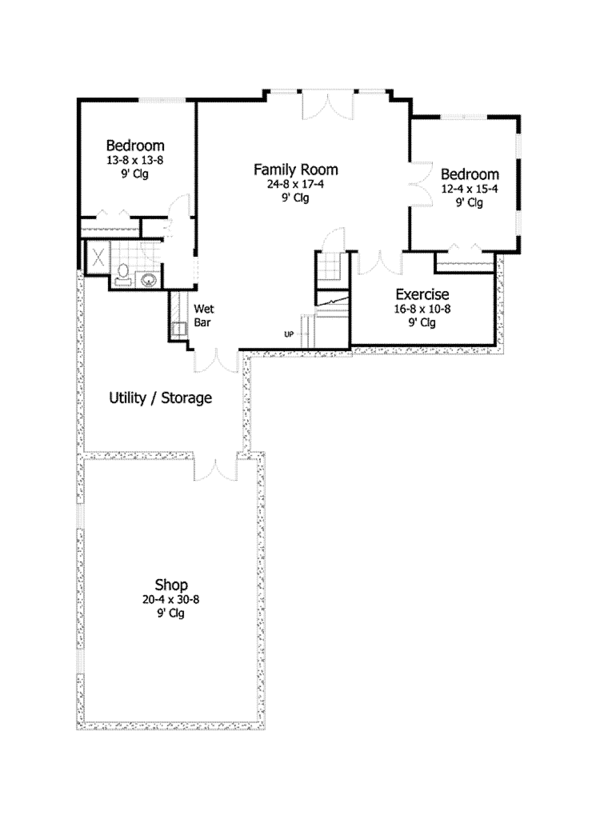

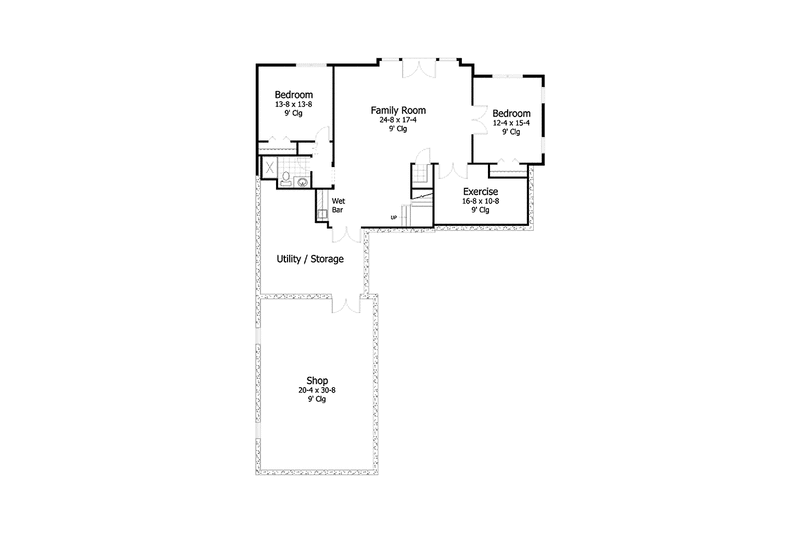

Home Plan - Ranch Floor Plan - Lower Floor Plan #51-1060

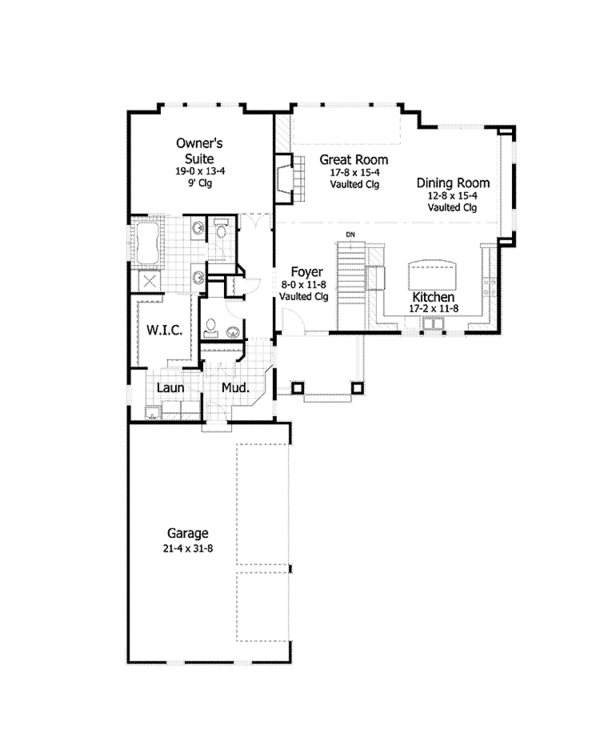

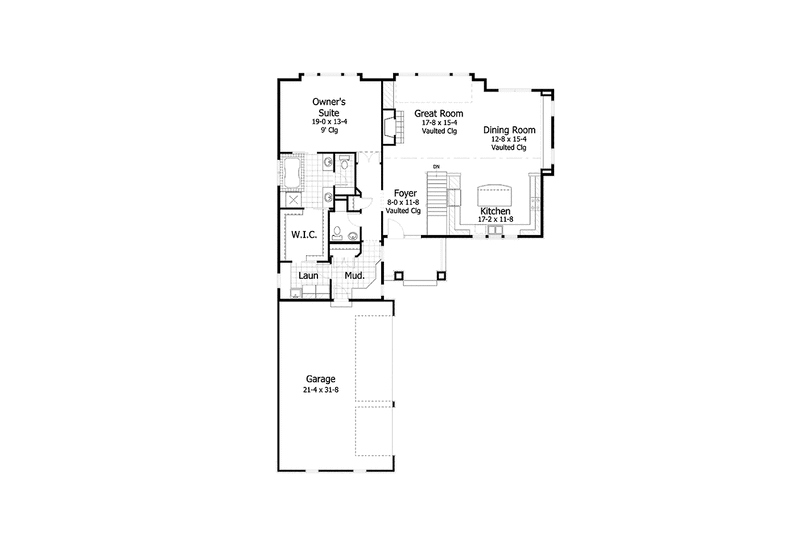

Home Plan - Ranch Floor Plan - Main Floor Plan #51-1060

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Ranch

Key Specs

3194
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$50.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1500.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 51-1060

Home > Style > Ranch

Key Specs

3194
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 3194 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 75'

Height : 24'

Width : 52'

Area

Basement Living: 1414 sq/ft height 9'

First Floor: 1780 sq/ft height 9'

Garage: 711 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Exercise Room

Family Room Keeping Room

Main Floor Laundry

Mud Room

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

186 sq/ft width 13' 8" x depth 13' 8"

Bedroom 3:

189 sq/ft width 12' 4" x depth 15' 4"

Dining Room:

194 sq/ft width 12' 8" x depth 15' 4"

Exercise Room:

177 sq/ft width 16' 8" x depth 10' 8"

Family Room:

427 sq/ft width 24' 8" x depth 17' 4"

Foyer:

93 sq/ft width 8' x depth 11' 8"

Garage:

675 sq/ft width 21' 4" x depth 31' 8"

Great Room:

270 sq/ft width 17' 8" x depth 15' 4"

Kitchen:

200 sq/ft width 17' 2" x depth 11' 8"

Master Suite:

253 sq/ft width 19' x depth 13' 4"

Shop:

623 sq/ft width 20' 4" x depth 30' 8"

What's Included In This Plan Set

See a sample plan set

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
Note: These plans will not contain an electrical layout.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$1500.00

5 printed plan sets mailed to you.

8 Copy Set:
$1750.00

8 printed plan sets mailed to you.

PDF Set:
$1775.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2300.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Wood 2x4:
$250.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$50.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
