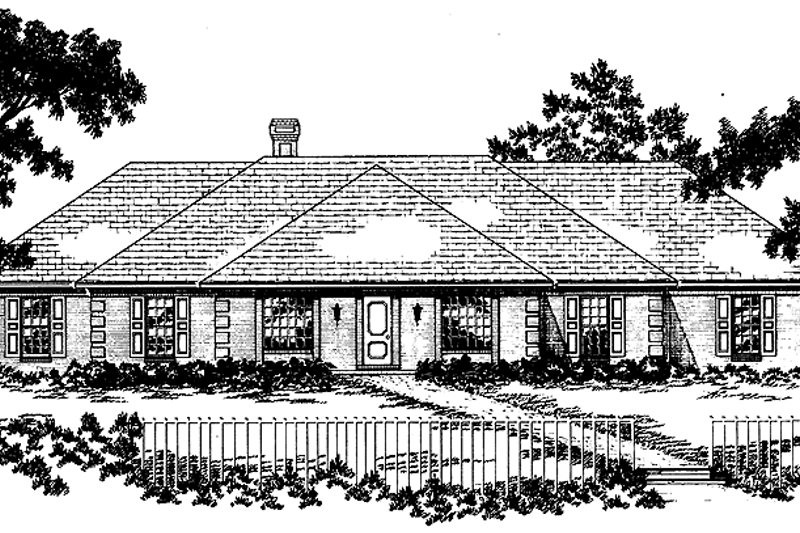

Home Plan - Ranch Exterior - Front Elevation Plan #36-541

Home Plan - Ranch Floor Plan - Main Floor Plan #36-541

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch

Key Specs

3231
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$25.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$795.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 36-541

Home > Style > Ranch

Key Specs

3231
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 3231 sq ft and has 4 bedrooms and 3 bathrooms.

Floor Plans

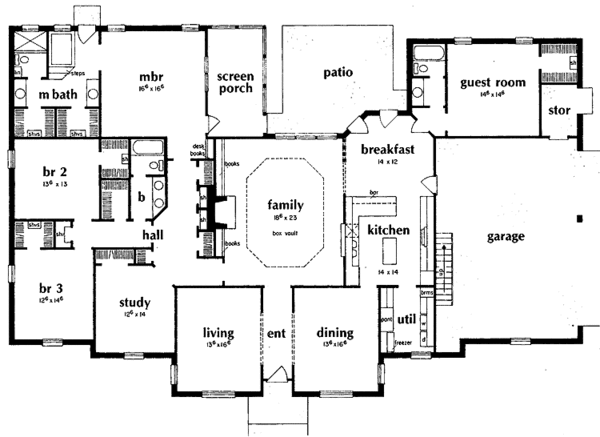

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 56' 10"

Height : 21' 9"

Width : 87' 10"

Area

First Floor: 3231 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Open Floor Plan

Sunroom

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Screened Porch

Rooms

Bedroom 3 Closet:

24 sq/ft width 6' x depth 4'

Entry:

63 sq/ft width 4' 6" x depth 14'

Garage:

691 sq/ft width 22' x depth 31' 5"

Garage Storage:

45 sq/ft width 5' 10" x depth 7' 10"

Master Bathroom:

149 sq/ft width 13' x depth 11' 6"

Master Closet - Hers:

27 sq/ft width 6' 4" x depth 4' 4"

Master Closet - His:

27 sq/ft width 6' 4" x depth 4' 4"

Porch - Screened:

148 sq/ft width 9' x depth 16' 6"

What's Included In This Plan Set

See a sample plan set

Floor plan with dimensions.
Electrical layout showing fixtures and switches, but not circuits.
Elevations from all 4 sides and top.
Framing details including cornices and at least one section.
Foundation with footing details. Plumbing is repeated on slab foundation.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$795.00

5 printed plan sets mailed to you.

8 Copy Set:
$855.00

8 printed plan sets mailed to you.

Reproducible Set:
$1065.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Single Set:
$715.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$25.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
