PLAN 51-995
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 59' 8"
Height : 25'
Width : 67' 8"
Area
Basement Living: 1367 sq/ft height 8' 2"
Basement Unfinished: 707 sq/ft height 8' 2"
First Floor: 2074 sq/ft height 9'
Garage: 670 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
149 sq/ft width 13' 4" x depth 11' 3"
Bedroom 3:
148 sq/ft width 13' x depth 11' 5"
Bedroom 4:
180 sq/ft width 11' 8" x depth 15' 6"
Bedroom 5:
186 sq/ft width 12' x depth 15' 6"
Breakfast:
141 sq/ft width 12' 8" x depth 11' 2"
Dining Room:
143 sq/ft width 11' x depth 13'
Garage:
668 sq/ft width 31' 4" x depth 21' 4"
Great Room:
248 sq/ft width 16' x depth 15' 6"
Kitchen:
130 sq/ft width 12' 8" x depth 10' 4"
Master Bedroom:
209 sq/ft width 13' 10" x depth 15' 2"
Recreation Room:
483 sq/ft width 31' 2" x depth 15' 6"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

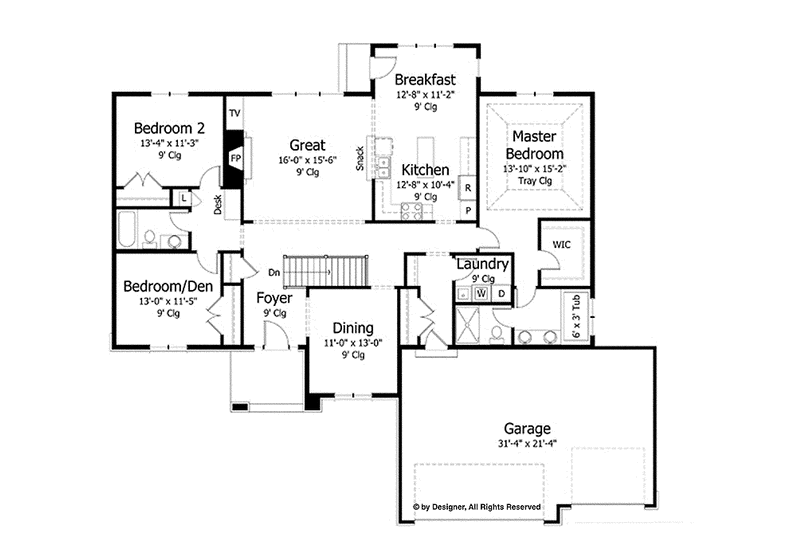

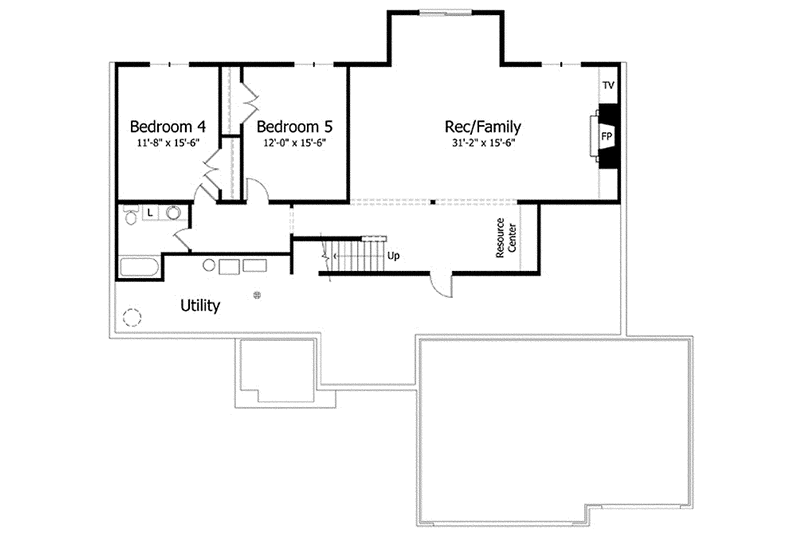

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1650.00
$1925.00
$1953.00
$2530.00
Foundation
$0.00
$0.00
Framing
$0.00
$250.00
Additional Options
$200.00
$60.00
$165.00
$39.00
$165.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
