Plan Description

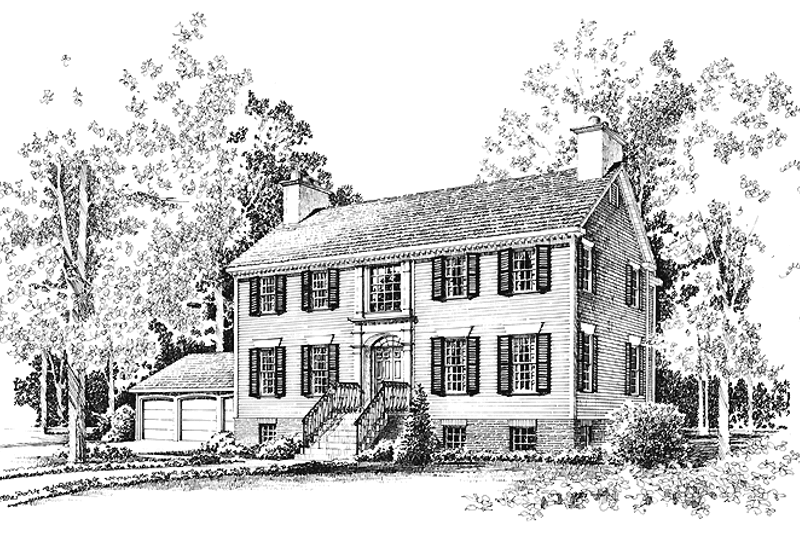

Twin chimneys adorn the gable ends of this dignified residence while the
louvered shutters and detailed entry with its wrought iron railings implies the
elegance that can be found within. From the entry hall one can see the unique
rear stair and hall, and to the left, the formal dining room with its corner
fireplace. To the right, there is a spacious living room and a warming
fireplace adjoining the library. At the rear of the house is an island kitchen
with a morning room, and a family entry with a lavatory and a guest closet. The
second floor is comprised of three bedrooms and a full bath. The master suite
contains a large bedroom warmed by a fireplace, a sitting room, a generous
master bath and a walk-in closet. As an option, the lower level can be finished
as a sumptuous family room with a guest room and a hobby room as additional
space is needed.
Floor Plans

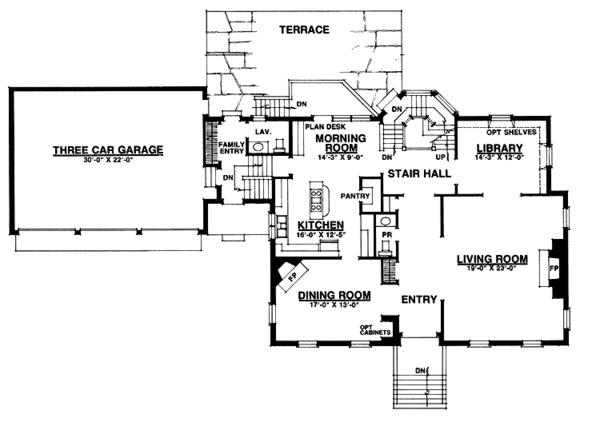

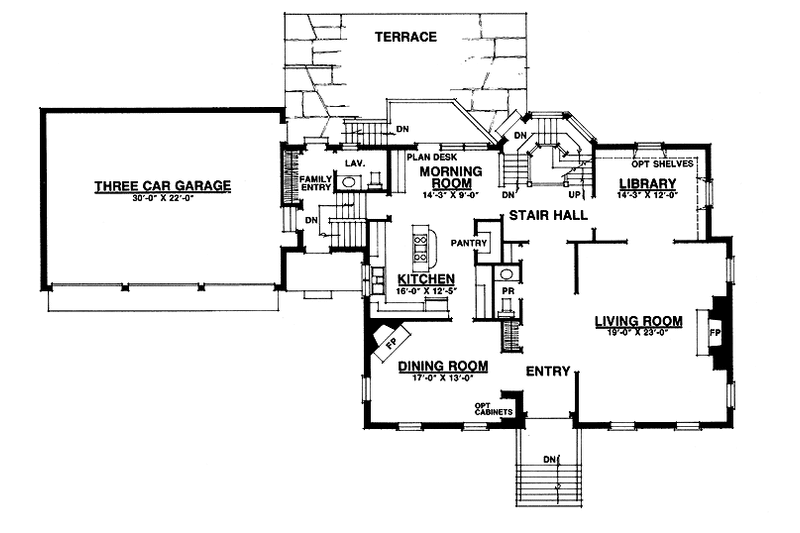

Floor Plan - Main Floor

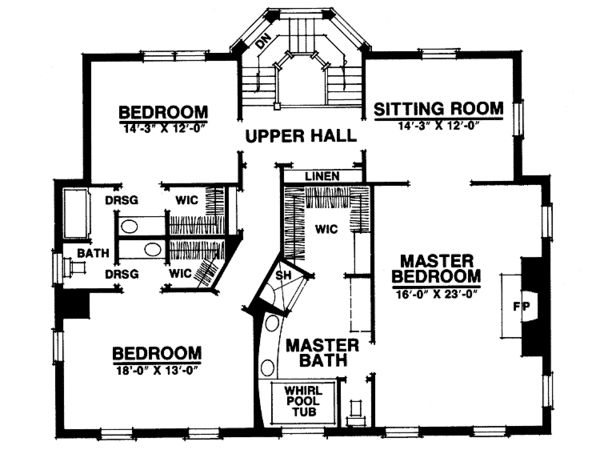

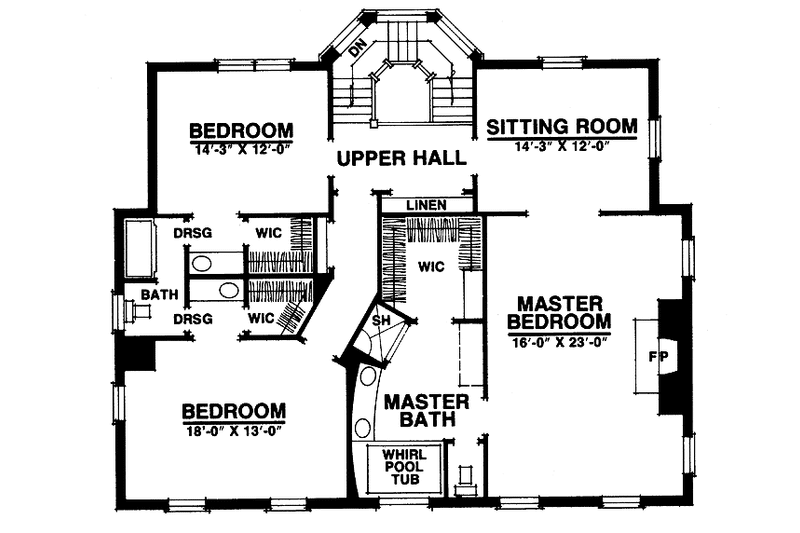

Floor Plan - Upper Floor

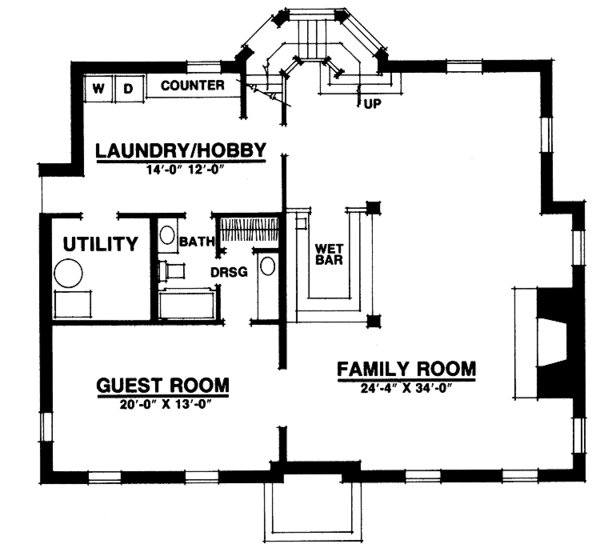

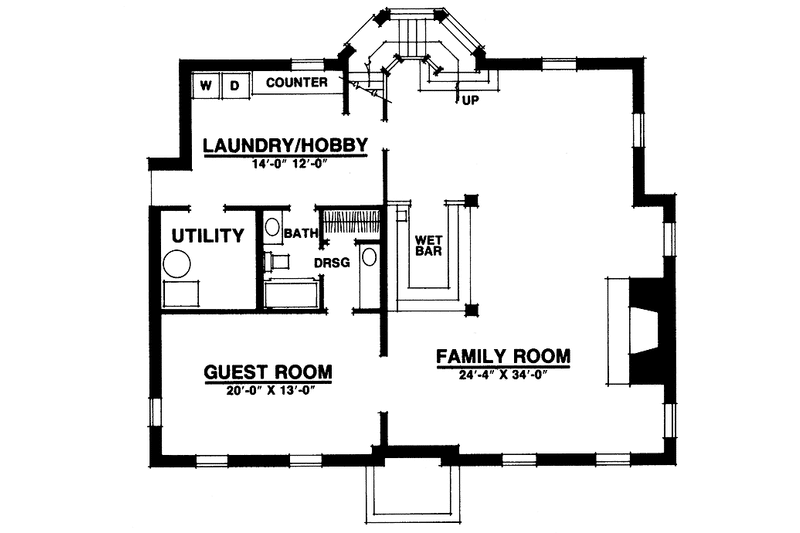

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 45' 8"
Height : 33'
Width : 88'
Area
First Floor: 1805 sq/ft
Second Floor: 1652 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$916.00
$916.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Audio Video Design:
$80.00
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$160.00
$160.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$48.00
$48.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
