Plan Description

This colonial design floor plan is 797 sq ft and has 2 bedrooms and 1 bathrooms.

Floor Plans

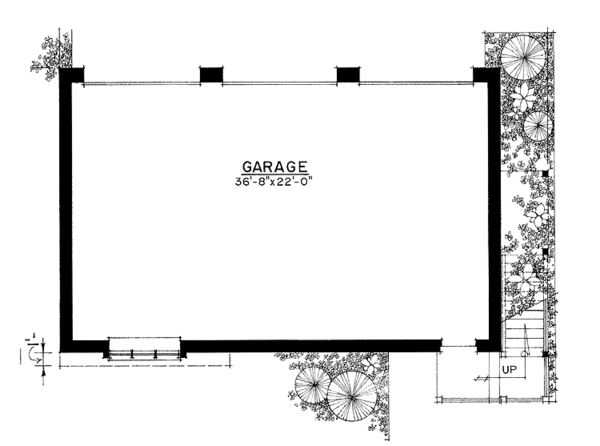

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

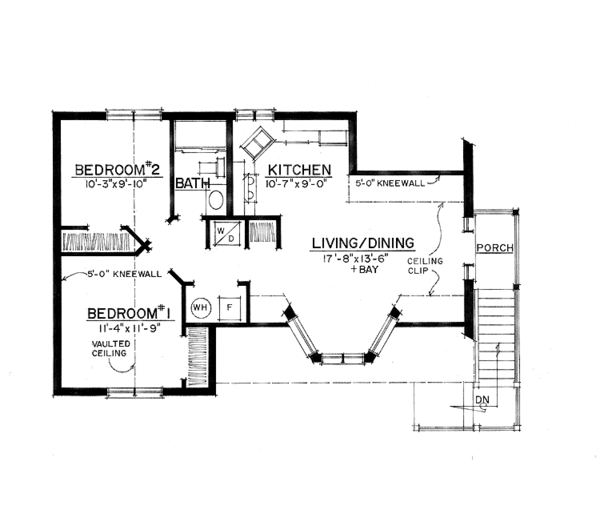

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 28' 9"

Height : 22' 8"

Width : 43'

Area

Garage: 928 sq/ft

Porch: 32 sq/ft

Second Floor: 797 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Block

Bedroom Features

Guest Suite

Rooms

Bedroom 1:

133 sq/ft width 11' 4" x depth 11' 9"

Bedroom 2:

100 sq/ft width 10' 3" x depth 9' 10"

Garage:

806 sq/ft width 36' 8" x depth 22'

Hall:

22 sq/ft width 4' x depth 5' 6"

Hall Bathroom:

44 sq/ft width 5' x depth 8' 11"

Kitchen:

95 sq/ft width 10' 7" x depth 9'

Living Room:

238 sq/ft width 17' 8" x depth 13' 6"

Master Closet:

11 sq/ft width 2' x depth 5' 9"
