Plan Description
Designed as a pool house, this plan could easily be a residence for in-laws or boomerang children. The plan offers unique features like a covered front porch with a fireplace for entertaining. The entry from the covered porch accesses the activity room with a full kitchen and an eat-at island bar. A bedroom is off of the kitchen with a full bathroom and walk-in closet. A laundry room and a half bath share a hall way from the activity room to the garage with the half bath having convenient access to outside. A second smaller garage is off the main garage with a large storage room.
Floor Plans

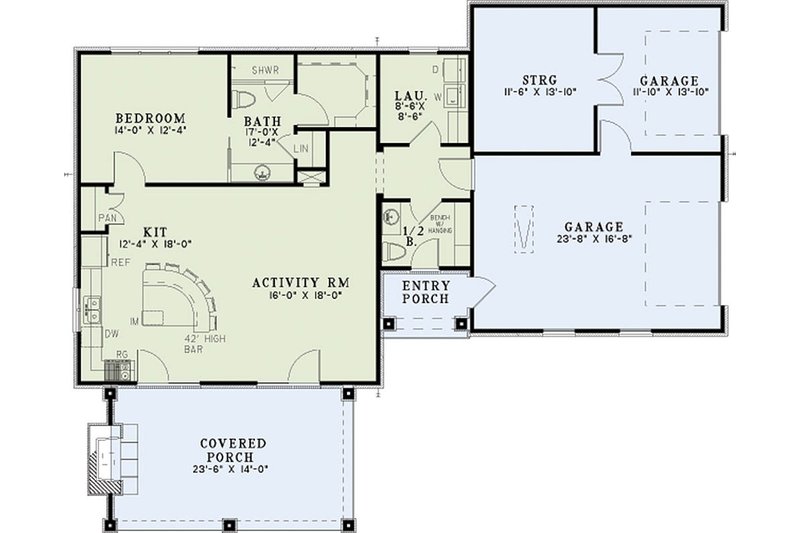

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 50' 6"
Height : 24' 10"
Width : 62'
Area
Garage : 730 sq/ft
Main Floor : 1117 sq/ft
Porch : 373 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Framing : Stick
Roof Load : 45 lbs
Exterior Wall Framing
Framing : 2x4
Insulation : R-13
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
