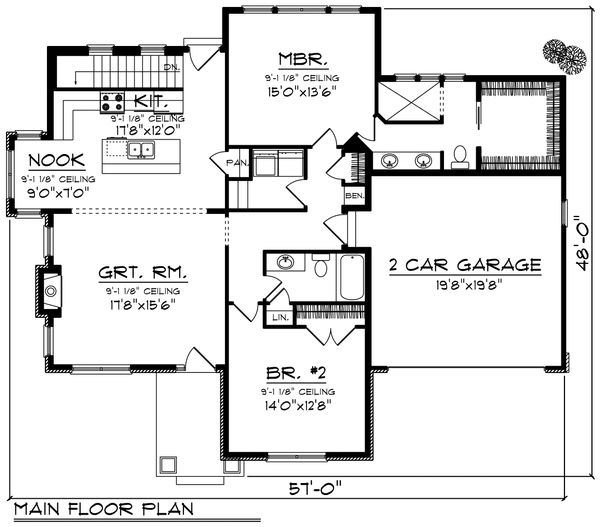

Home Plan - Ranch Floor Plan - Main Floor Plan #70-1189

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch

Key Specs

1518
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$973.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1189

Home > Style > Ranch

Key Specs

1518
sq ft

2
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

• Stone, horizontal siding, shutters and flower boxes add charm to this smart ranch design. • An open-concept living area includes a great room with fireplace, kitchen with center-island and cozy nook. • 9’ ceilings add volume to the feel of the living space. • The master suite lies to the back of the home and includes a spacious walk-in closet. • The second bedroom is found just off the entry to the right of the home. • The two-stall garage accesses the home just outside the laundry area with a storage bench and closet.

Floor Plans

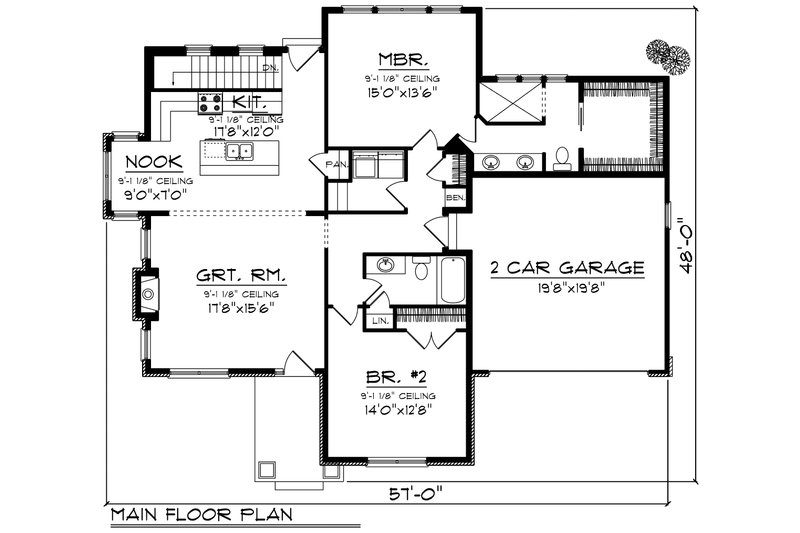

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 48'

Height : 20' 10"

Width : 57'

Area

First Floor: 1518 sq/ft height 9' 1"

Garage: 410 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 8'

Main Ceiling : 9'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Unfinished Future Space

Garage Features

Front Entry Garage

Rooms

Bedroom 2:

117 sq/ft width 14' x depth 12' 8"

Bedroom 2 Closet:

14 sq/ft width 7' x depth 2'

Covered Front Porch:

71 sq/ft width 6' 8" x depth 10' 8"

Garage:

410 sq/ft width 19' 8" x depth 19' 8"

Great Room:

274 sq/ft width 17' 8" x depth 15' 6"

Hall:

34 sq/ft width 3' 8" x depth 9' 4"

Hall Bath:

50 sq/ft width 10' x depth 5'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

212 sq/ft width 17' 8" x depth 12'

Laundry Room:

46 sq/ft width 7' 8" x depth 6'

Linen Closet:

5 sq/ft width 2' 8" x depth 2'

Master Bath:

96 sq/ft width 10' 8" x depth 9'

Master Bedroom:

203 sq/ft width 15' x depth 13' 6"

Master Closet:

72 sq/ft width 8' x depth 9'

Nook:

63 sq/ft width 9' x depth 7'

Pantry:

6 sq/ft width 2' x depth 3'

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
