PLAN 70-1414
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
• Traditional in style, this cute ranch home is affordable to build but still has plenty of charm. • An open concept design combines the kitchen, dining room and great room into one usable space large enough for entertaining. • A walk-in pantry is sure to please the chef of the house. • Step ceilings in the dining area and great room define the space. • The split bedrooms have the master on the right side of the home along with a walk-in closet, and dual sinks. • Two additional bedrooms lie behind the garage to the left and share a full bath off the hall.
Floor Plans

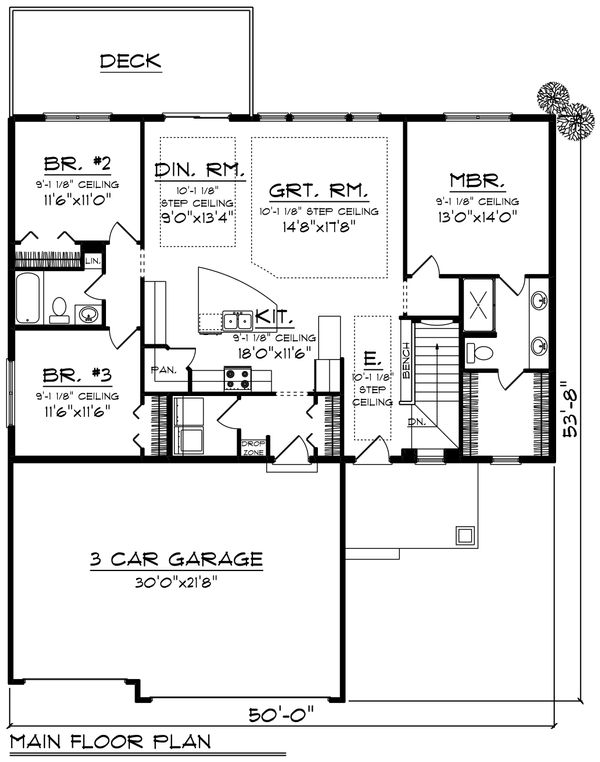

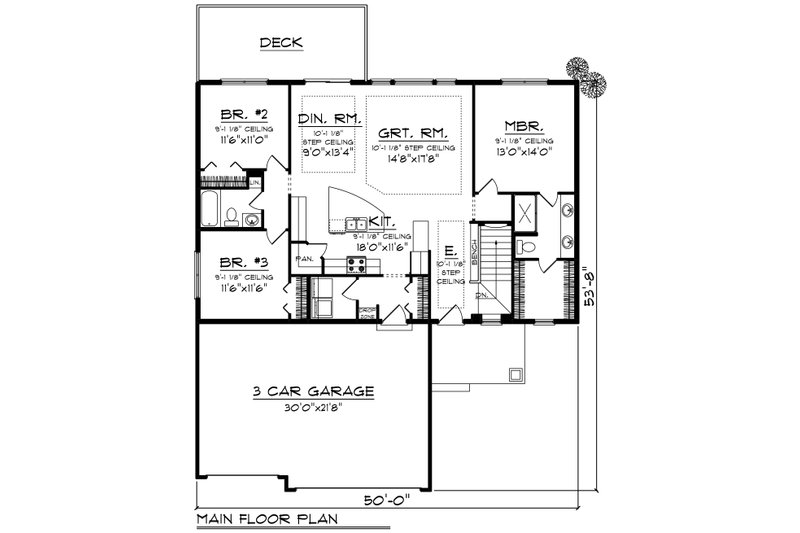

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 53' 8"
Height : 23'
Width : 50'
Area
Garage : 655 sq/ft
Main Floor : 1583 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Entry, Dining, Great 10' Step.
Lower Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shake, Horizontal Siding.
Framing : 2x6
Insulation : R-20
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
More
Suited For Vacation Home
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
