PLAN 120-168

Photographs may show modified designs.

Home Plan - Mountain lodge craftsman style home by David Wiggins 1,700 sft

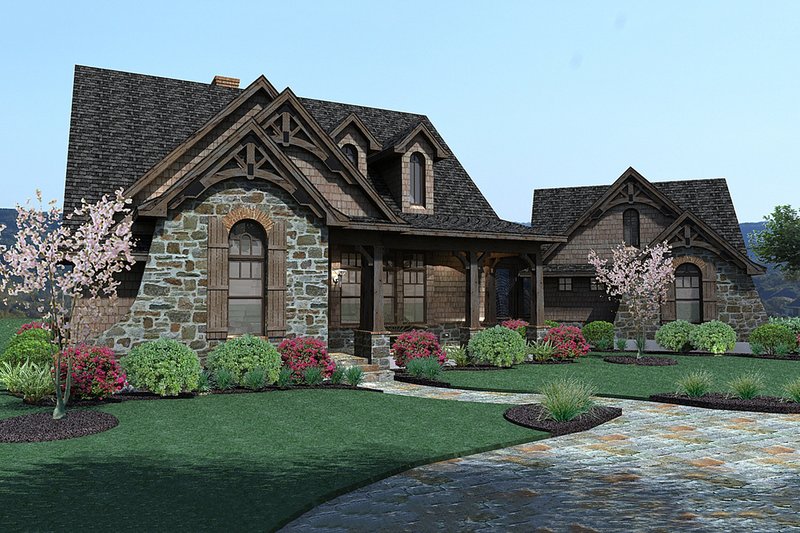

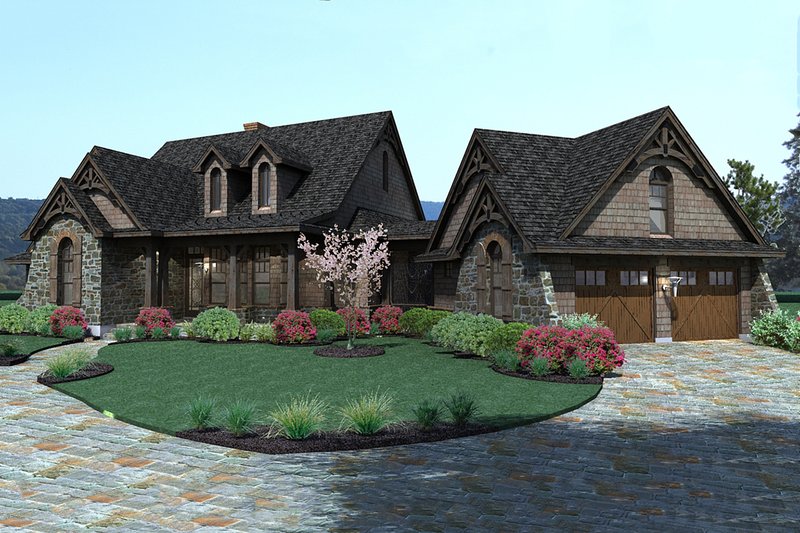

Home Plan - Craftsman Exterior - Other Elevation Plan #120-168

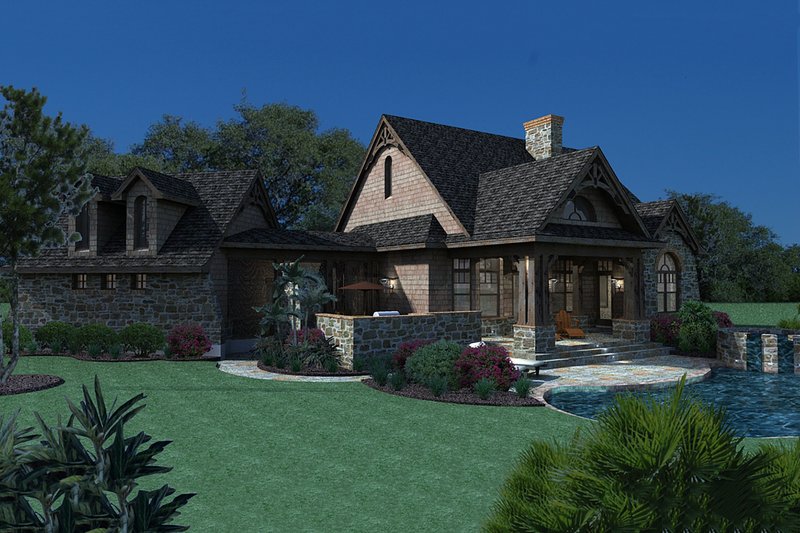

Home Plan - Craftsman Exterior - Outdoor Living Plan #120-168

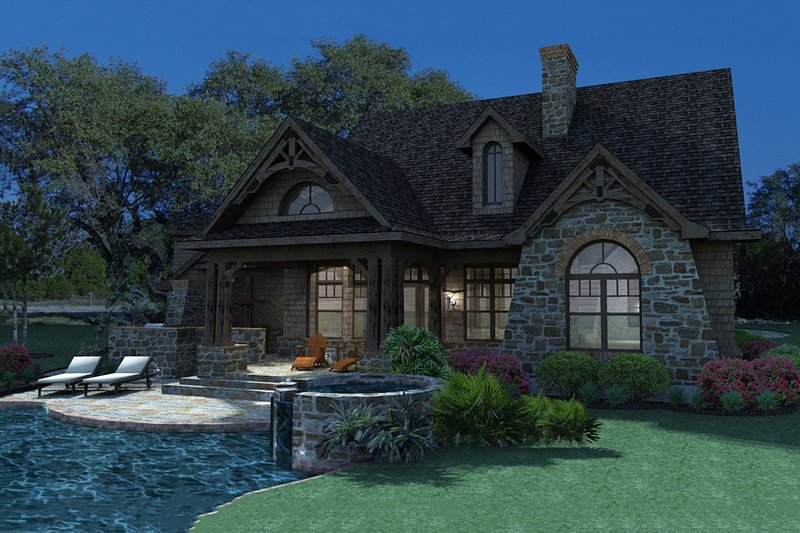

Home Plan - Craftsman Exterior - Rear Elevation Plan #120-168

Home Plan - Mountain lodge craftsman style home plan by David Wiggins 1,700 sft

Home Plan - Craftsman Floor Plan - Upper Floor Plan #120-168

Jump to:
All (9)
Exterior (7)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1698
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

3 Car Side-Loading Garage

$195.00

Changes garage to side load

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$395.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License

$395.00

Allows you to build this home as many times as you want.

Subtotal

$895.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 120-168

Home > Style > Craftsman

Key Specs

1698
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This interesting design can be built with or without the detached garage. Without, it can be built in a space as tight as 48'-0" wide. With the garage included as shown the width becomes 92'-0" or the floor plan can be rotated behind the home for narrower conditions. Plenty of future expansion potential upstairs makes this home a good starter with room to grow. The upper Garage also makes it great candidate for an isolated Game Rm.

Floor Plans

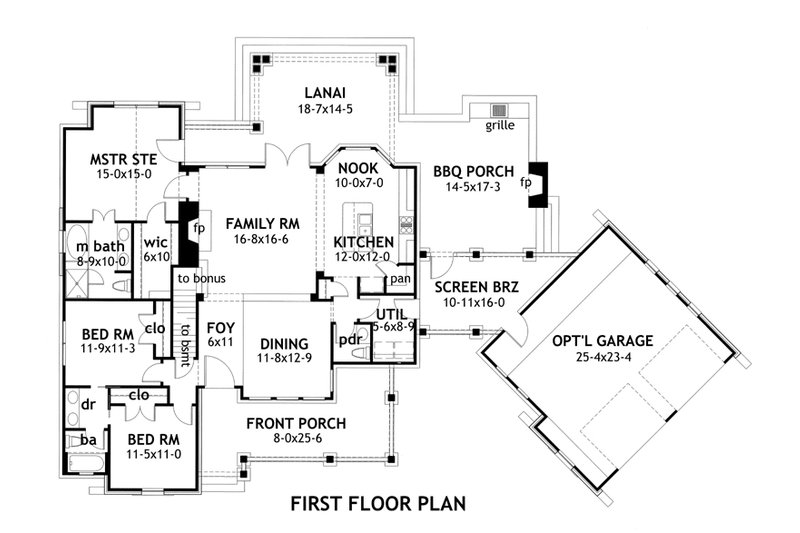

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

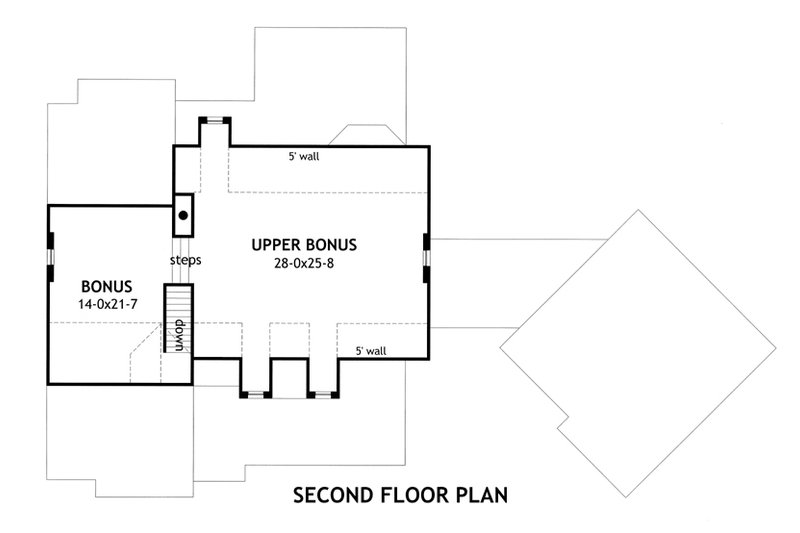

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 58' 2"

Height : 31' 5"

Width : 48'

Area

Bonus: 831 sq/ft

First Floor: 1698 sq/ft

Garage: 600 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9'

Ceiling Details : Master Bedroom: Vaulted, Master Bath: 10'-0", Bedroom 3: 10'-0", Bedroom 2: 9'-0"

Garage Ceiling : 9'

Main Ceiling : 12'

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Load : 20

Roof Type : Composition

Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Shingle

Framing : 2"x4"

Insulation : 15

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Master Sitting Area

Media Room

Mud Room

Play Flex Room

Sunroom

Unfinished Future Space

Garage Features

Detached Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Balcony

Breezeway

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Outdoor Kitchen Grill

Screened Porch

Wrap Around Porch

Empty Nester

Jack & Jill Bath

Suited For Vacation Home

Unusual Shape

Code Compliance

Irc 2006

Structural Information Provided

Structural 1st Floor Framing

Structural Roof Framing

Rooms

Bedroom 2:

125 sq/ft width 11' 5" x depth 11'

Bedroom 3:

132 sq/ft width 11' 9" x depth 11' 3"

Bonus Room - Unfinished:

718 sq/ft width 28' x depth 25' 8"

Bonus Room - Unfinished:

302 sq/ft width 14' x depth 21' 7"

Dining Room:

148 sq/ft width 11' 8" x depth 12' 9"

Family Room:

275 sq/ft width 16' 8" x depth 16' 6"

Foyer:

66 sq/ft width 6' x depth 11'

Garage:

591 sq/ft width 25' 4" x depth 23' 4"

Grilling Porch:

248 sq/ft width 14' 5" x depth 17' 3"

Kitchen:

144 sq/ft width 12' x depth 12'

Lanai:

267 sq/ft width 18' 7" x depth 14' 5"

Master Suite:

225 sq/ft width 15' x depth 15'

Nook:

70 sq/ft width 10' x depth 7'

Porch - Front:

204 sq/ft width 8' x depth 25' 6"

Utility Room:

48 sq/ft width 5' 6" x depth 8' 9"

What's Included In This Plan Set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$895.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$895.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set:
$1045.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1145.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1695.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$395.00

Ideal for level lot, lower level of home partially or fully underground.

Walk Out Basement:
$395.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$245.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

3 Car Side-Loading Garage:
$195.00

Changes garage to side load

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$395.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License:
$395.00

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
