PLAN 120-157
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

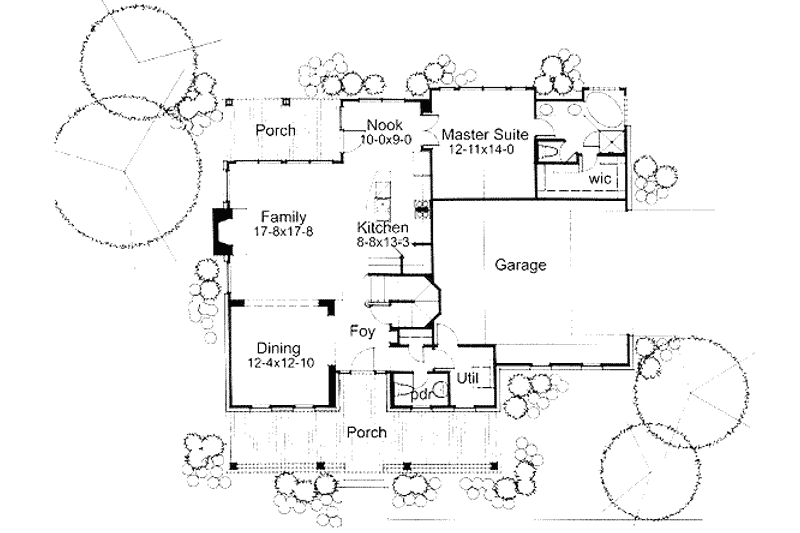

Floor Plan - Main Floor

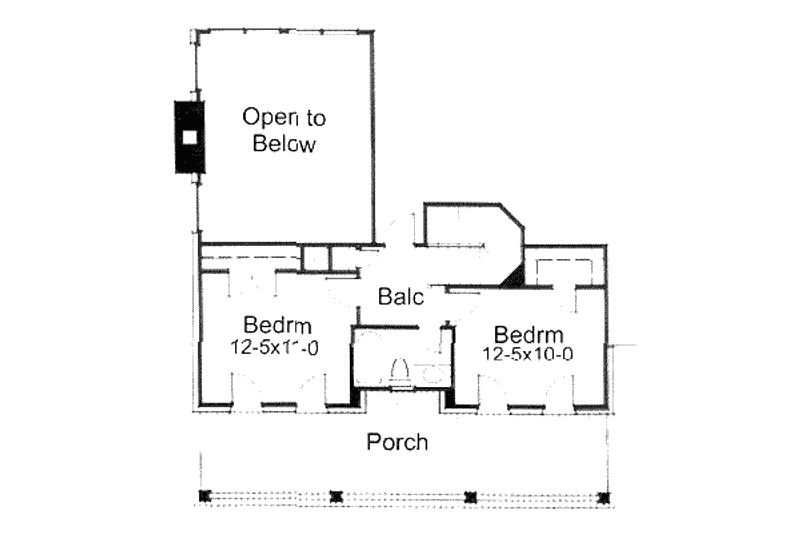

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 28'
Width : 51' 11"
Area
Bonus: 209 sq/ft
First Floor: 1320 sq/ft height 9'
Second Floor: 433 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Loft
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
3rd BR Closet:
20 sq/ft width 6' 6" x depth 3' 2"
Basement Foundation:
2595 sq/ft width 51' 11" x depth 50'
Bathroom 2:
40 sq/ft width 8' x depth 5'
Bedroom 2:
137 sq/ft width 12' 5" x depth 11' 1"
Bedroom 2 Closet:
16 sq/ft width 8' 4" x depth 2'
Bedroom 3:
124 sq/ft width 12' 5" x depth 10'
Bedroom 3 Closet:
16 sq/ft width 8' 4" x depth 2'
Breakfast Room:
80 sq/ft width 10' x depth 8'
Crawlspace Foundation:
2595 sq/ft width 51' 11" x depth 50'
Dining Room:
158 sq/ft width 12' 4" x depth 12' 10"
Foyer:
64 sq/ft width 7' x depth 9' 2"
Garage:
455 sq/ft width 24' 5" x depth 18' 8"
Garage Storage:
40 sq/ft width 16' 8" x depth 2' 5"
Gathering Room:
256 sq/ft width 14' 6" x depth 17' 8"
Hall Closet:
8 sq/ft width 4' 2" x depth 2'
Kitchen:
159 sq/ft width 11' 2" x depth 14' 3"
Master Bathroom:
92 sq/ft width 11' 2" x depth 8' 3"
Master Bedroom:
182 sq/ft width 13' x depth 14'
Master Closet:
60 sq/ft width 11' 2" x depth 5' 5"
Porch - Front:
280 sq/ft width 35' x depth 8'
Porch - Rear:
120 sq/ft width 15' x depth 8'
Powder Room:
29 sq/ft width 7' x depth 4' 2"
Slab Foundation:
2550 sq/ft width 51' x depth 50'
Storage:
95 sq/ft width 7' 5" x depth 12' 11"
Utility Room:
42 sq/ft width 5' 6" x depth 7' 8"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
