PLAN 120-172

Photographs may show modified designs.

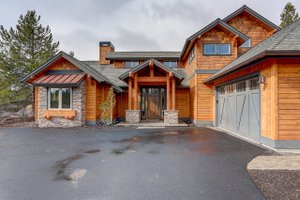

Home Plan - Lodge craftsman house by David Wiggins - 2900 sft with great indoor and outdoor living Houseplans #120-172

Home Plan - Craftsman Exterior - Other Elevation Plan #120-172

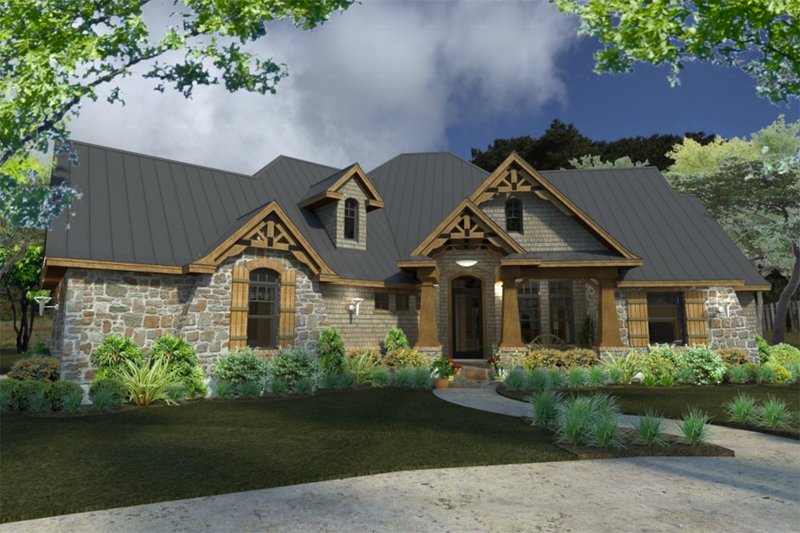

Home Plan - Craftsman Exterior - Front Elevation Plan #120-172

Home Plan - Craftsman Exterior - Rear Elevation Plan #120-172

Home Plan - Craftsman Interior - Dining Room Plan #120-172

Home Plan - Craftsman Interior - Other Plan #120-172

Home Plan - Craftsman Interior - Family Room Plan #120-172

Home Plan - Craftsman Interior - Kitchen Plan #120-172

Home Plan - Craftsman Interior - Master Bedroom Plan #120-172

Home Plan - Craftsman Interior - Bathroom Plan #120-172

Home Plan - Craftsman Interior - Laundry Plan #120-172

Home Plan - Craftsman Interior - Master Bathroom Plan #120-172

Home Plan - Craftsman Floor Plan - Upper Floor Plan #120-172

Jump to:
All (32)
Exterior (15)
Interior (15)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

2847
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$395.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License

$395.00

Allows you to build this home as many times as you want.

Subtotal

$1345.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 120-172

Home > Style > Craftsman

Key Specs

2847
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Meet a Storybook Craftsman style design that lives for today. The gabled porch, ornamental brackets, wood shutters and friendly stone and shingle outline add character and curb appeal. Inside, the surprise is the way the house connects to the backyard through a series of increasingly open spaces, from the Family Room to the Nook to the Lanai to the BBQ Patio. The floor plan is all about easy indoor-outdoor living. View more Craftsman style house plans.

Floor Plans

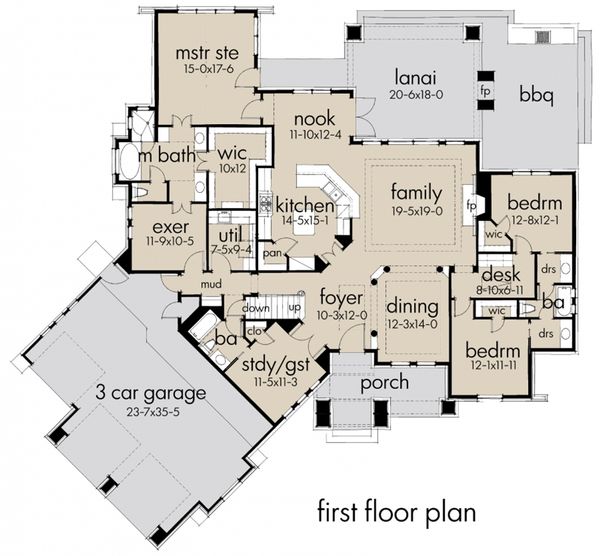

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

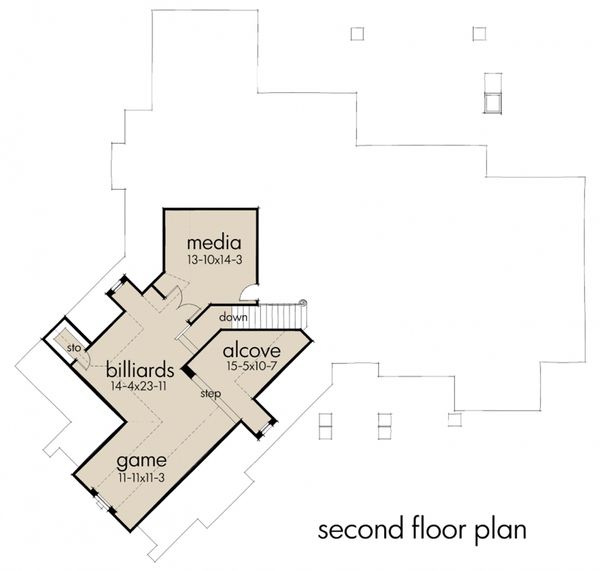

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 84' 10"

Height : 34' 10"

Width : 88' 8"

Area

Basement Unfinished: 2847 sq/ft

Bonus: 934 sq/ft height 9'

First Floor: 2847 sq/ft

Garage: 896 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9'

Ceiling Details : Stepped ceiling in Dining and Family Vaulted in Master

Garage Ceiling : 9'

Main Ceiling : 10'

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Load : 20

Roof Type : gable

Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : stone and cedar shake

Framing : 2"x6"

Insulation : 19

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Media Room

Mud Room

Play Flex Room

Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Grill Deck Sundeck

Outdoor Kitchen Grill

Empty Nester

Jack & Jill Bath

Suited For Vacation Home

Unusual Shape

Wheelchair Adaptable

Structural Information Provided

Foundation Drawing

Structural 1st Floor Framing

Structural 2nd Floor Framing

Structural Roof Framing

Energy Efficient Features

Energy Efficient Design

Rooms

Bedroom 2:

143 sq/ft width 12' 1" x depth 11' 11"

Bedroom 3:

153 sq/ft width 12' 8" x depth 12' 1"

Dining Room:

171 sq/ft width 12' 3" x depth 14'

Exercise Room:

122 sq/ft width 11' 9" x depth 10' 5"

Family Room:

368 sq/ft width 19' 5" x depth 19'

Foyer:

123 sq/ft width 10' 3" x depth 12'

Garage:

835 sq/ft width 23' 7" x depth 35' 5"

Kitchen:

217 sq/ft width 14' 5" x depth 15' 1"

Lanai:

369 sq/ft width 20' 6" x depth 18'

Master Bathroom:

160 sq/ft width 13' 9" x depth 11' 8"

Master Suite:

262 sq/ft width 15' x depth 17' 6"

Nook:

145 sq/ft width 11' 10" x depth 12' 4"

Study:

128 sq/ft width 11' 5" x depth 11' 3"

What's Included In This Plan Set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.

» See important information before purchasing.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1345.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1345.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set:
$1495.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1595.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2145.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$395.00

Ideal for level lot, lower level of home partially or fully underground.

Walk Out Basement:
$395.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$395.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unlimited Use License:
$395.00

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
