PLAN 17-2670
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

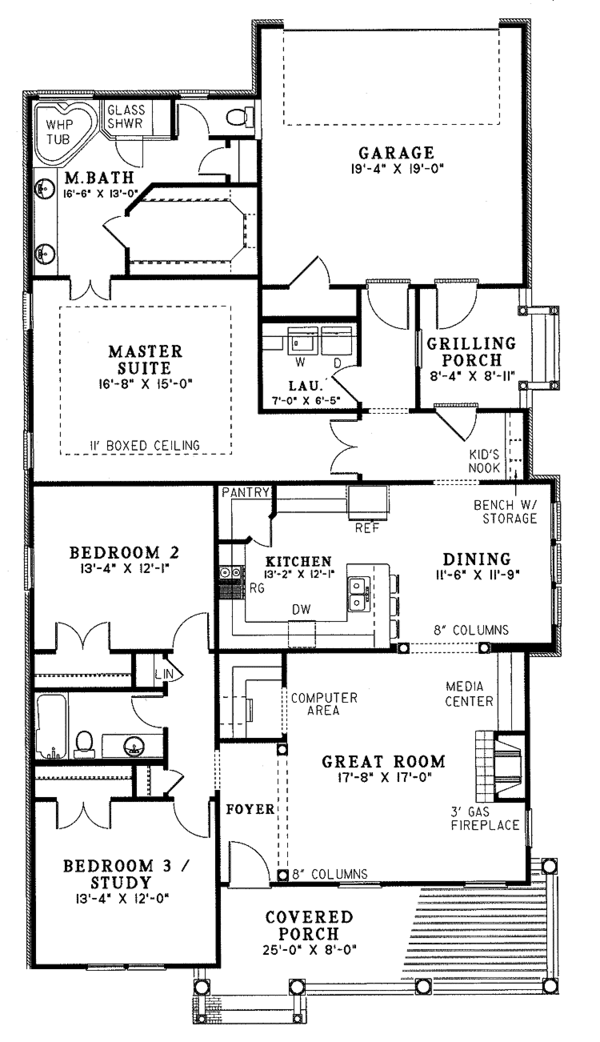

Floor Plans
Full Specs & Features
Dimension
Depth : 72'
Height : 25'
Width : 39'
Area
First Floor: 1915 sq/ft height 10'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Den Office Study Computer
Great Room Living Room
Media Room
Outdoor Spaces
Covered Rear Porch
Rooms
Bedroom 2:
161 sq/ft width 12' 1" x depth 13' 4"
Bedroom 3:
159 sq/ft width 12' x depth 13' 4"
Dining Room:
135 sq/ft width 11' 9" x depth 11' 6"
Gathering Room:
300 sq/ft width 17' x depth 17' 8"
Kitchen:
159 sq/ft width 12' 1" x depth 13' 2"
Master Bathroom:
208 sq/ft width 13' x depth 16'
Master Bedroom:
250 sq/ft width 15' x depth 16' 8"
Porch - Front:
200 sq/ft width 8' x depth 25'
Porch - Right:
74 sq/ft width 8' 11" x depth 8' 4"
Utility Room:
44 sq/ft width 6' 5" x depth 7'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$800.00
$900.00
$1150.00
$1500.00
$1600.00
$1600.00
Foundation
$0.00
$0.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$100.00
$295.00
$39.00
$149.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
