Plan Description
This home is inspired by homes of the South, with its covered porches with boxed columns, and large double-hung windows with decorative lintels. Inside, the great room is cheered by a gas fireplace, which can also be viewed from the dining room. The master suite is on the main floor to provide privacy and features French doors. Please specify crawlspace or slab foundation when ordering.
Floor Plans

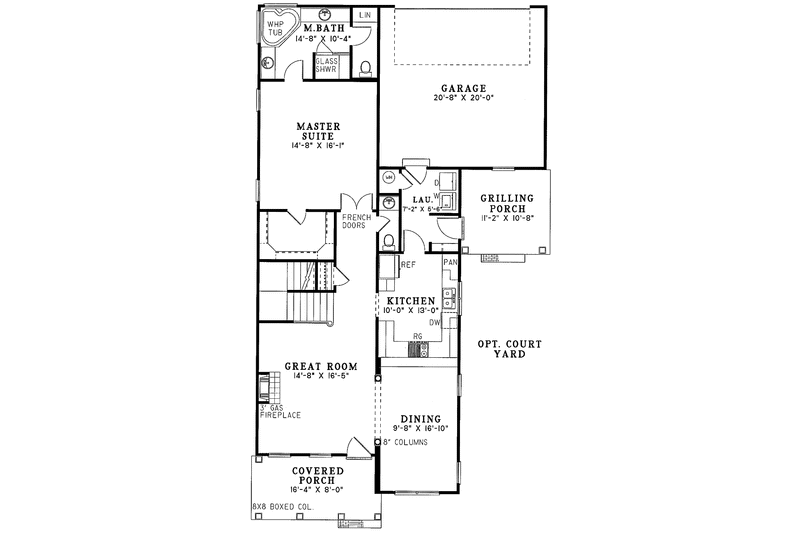

Floor Plan - Main Floor

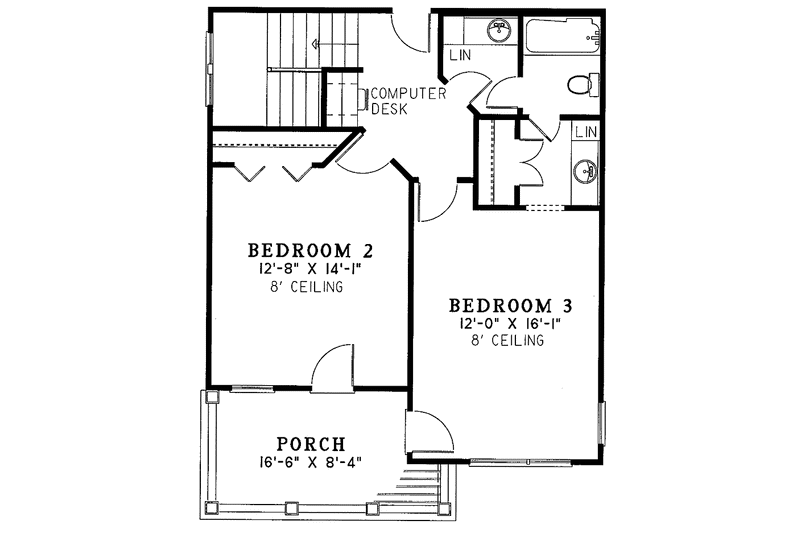

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 64' 10"
Width : 36' 4"
Area
First Floor: 1298 sq/ft height 9'
Second Floor: 624 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
178 sq/ft width 14' 1" x depth 12' 8"
Bedroom 3:
192 sq/ft width 16' 1" x depth 12'
Dining Room:
162 sq/ft width 16' 10" x depth 9' 8"
Gathering Room:
240 sq/ft width 16' 5" x depth 14' 8"
Kitchen:
130 sq/ft width 13' x depth 10'
Master Bathroom:
151 sq/ft width 10' 4" x depth 14' 8"
Master Bedroom:
235 sq/ft width 16' 1" x depth 14' 8"
Porch - Front:
130 sq/ft width 8' x depth 16' 4"
Porch - Rear:
137 sq/ft width 8' 4" x depth 16' 6"
Porch - Right:
119 sq/ft width 10' 8" x depth 11' 2"
Wash Room:
39 sq/ft width 5' 6" x depth 7' 2"
