Plan Description

This ranch design floor plan is 1927 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

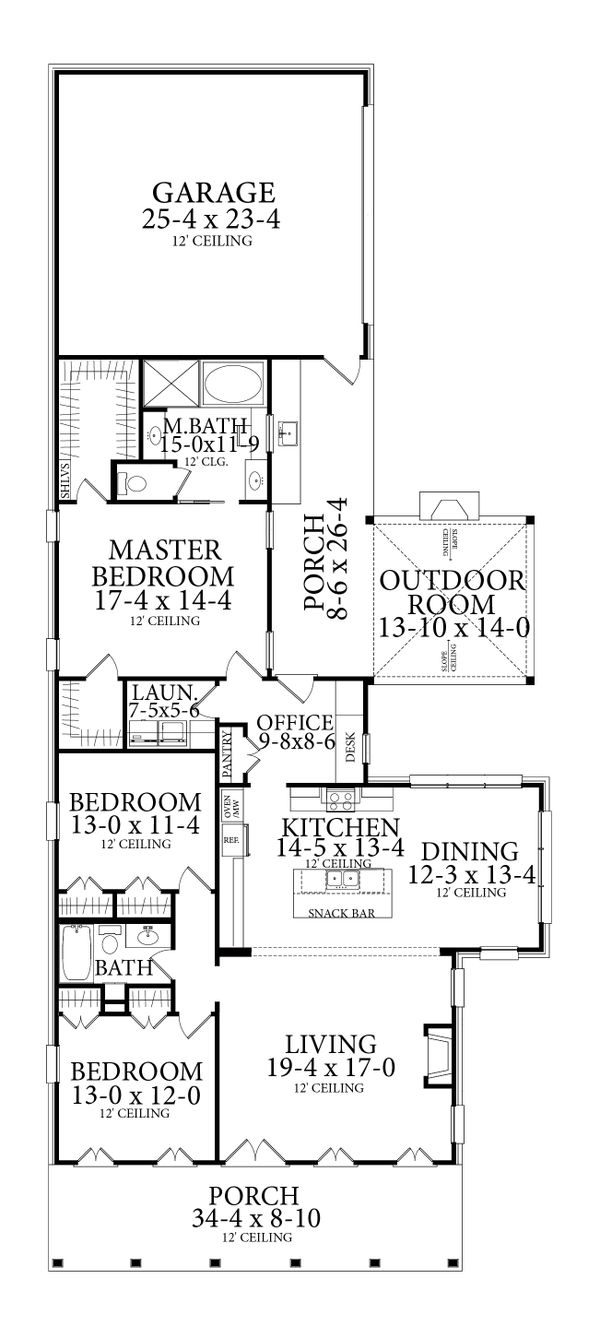

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 100' 2"

Height : 25' 9"

Width : 41' 7"

Area

Garage : 655 sq/ft

Main Floor : 1927 sq/ft

Porch : 696 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Side Porch has vaulted ceiling

Main Ceiling : 12'

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Brick & Stucco

Framing : 2 x 4

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Garage Features

Rear Garage

Side Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Economical To Build

Empty Nester

Rooms

Bedroom 2:

width 13' x depth 11' 4"

Bedroom 3:

width 13' x depth 12'

Covered Front Porch:

width 41' 7" x depth 8' 10"

Dining Room:

width 12' 3" x depth 13' 4"

Garage:

width 25' 4" x depth 23' 4"

Kitchen:

width 14' 5" x depth 13' 4"

Laundry:

width 7' 5" x depth 5' 6"

Living Room:

width 19' 4" x depth 17'

Master Bath:

width 15' x depth 11' 9"

Master Bedroom:

width 17' 4" x depth 14' 4"

Office :

width 9' 8" x depth 8' 6"

Outdoor Room:

width 13' 10" x depth 14'

Side Porch:

width 8' 6" x depth 26' 4"

What's Included In This Plan Set

See a sample plan set

The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
The second sheet is typically the front and side elevation drawn to 1/4" scale.
The third sheet is the rear and side elevation drawn to 1/4" scale.
The foundation of your choice (slab or crawlspace ). Floor Plan 1/4" Scale
Detail and Section Page
Cabinet elevations & Roof Plan
Electrical Plan
Foundation Details
