PLAN 54-206
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

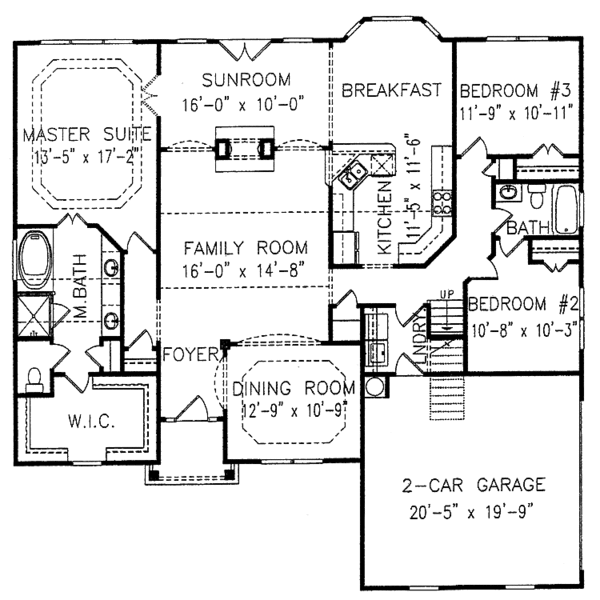

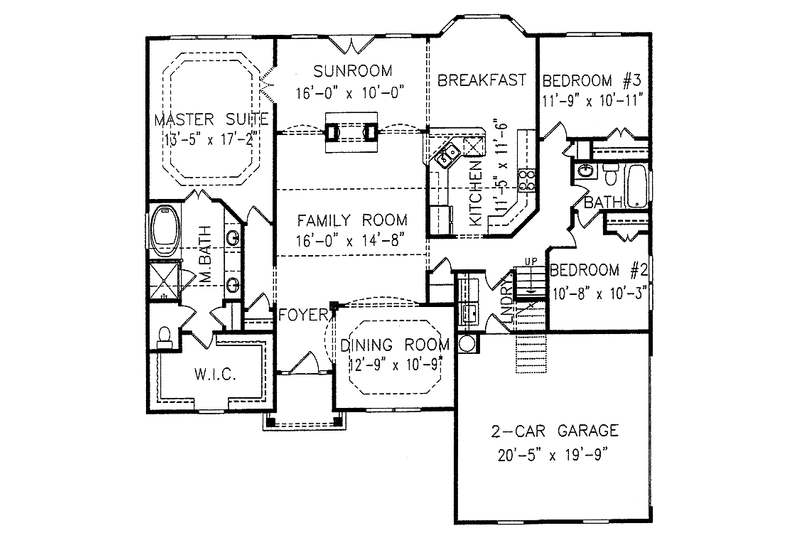

Floor Plans
Full Specs & Features
Dimension
Depth : 54'
Height : 26'
Width : 54'
Area
Bonus: 191 sq/ft
First Floor: 1985 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Sunroom
Outdoor Spaces
Screened Porch
Rooms
Bedroom 2:
109 sq/ft width 10' 8" x depth 10' 3"
Bedroom 3:
128 sq/ft width 11' 9" x depth 10' 11"

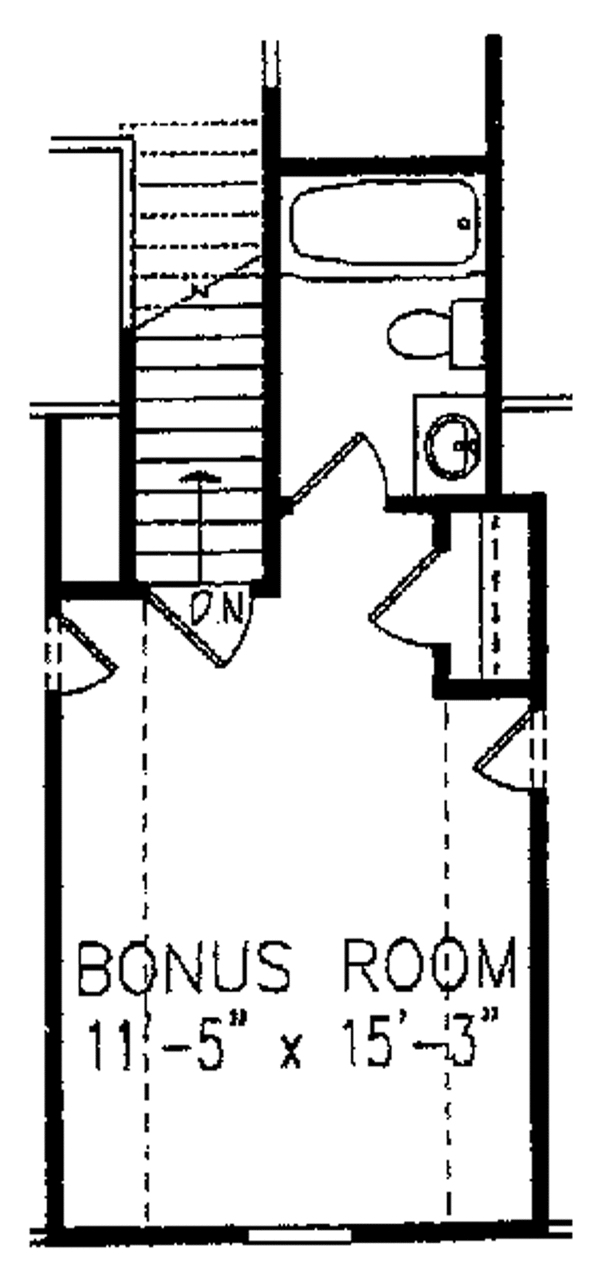

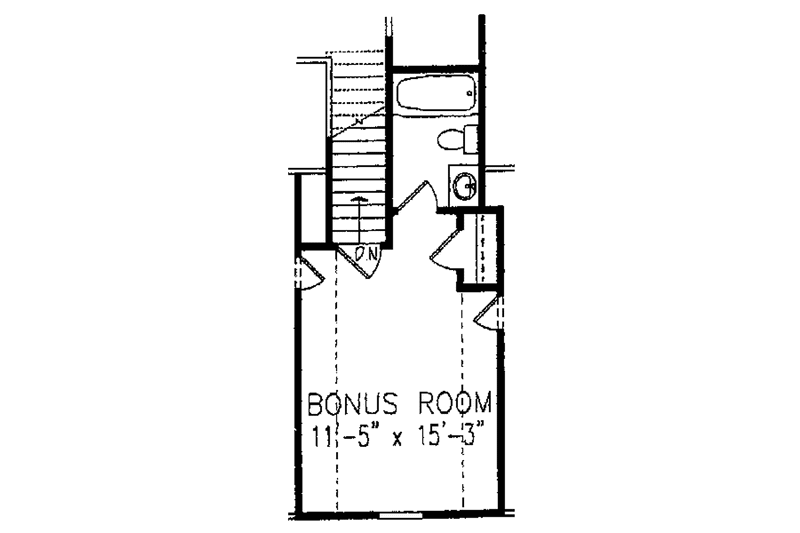

Bonus Room - Finished:
174 sq/ft width 11' 5" x depth 15' 3"
Dining Room:
115 sq/ft width 10' 9" x depth 10' 9"
Family Room:
234 sq/ft width 16' x depth 14' 8"
Garage:
403 sq/ft width 20' 5" x depth 19' 9"
Kitchen:
131 sq/ft width 11' 5" x depth 11' 6"
Master Bedroom:
230 sq/ft width 13' 5" x depth 17' 2"
Sun Room:
160 sq/ft width 16' x depth 10'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$714.00
$1436.50
$1517.25
Foundation
$0.00
$297.50
Framing
$0.00
$297.50
Additional Options
$212.50
$59.50
$140.25
$250.75
$33.15
$140.25
$46.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
