PLAN 406-9609
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

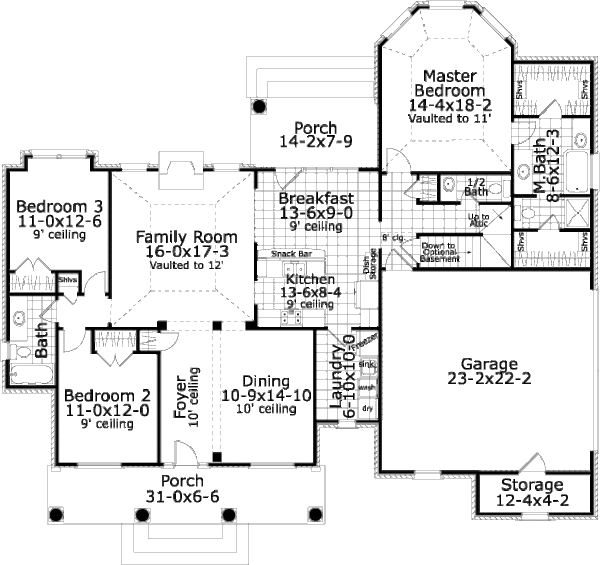

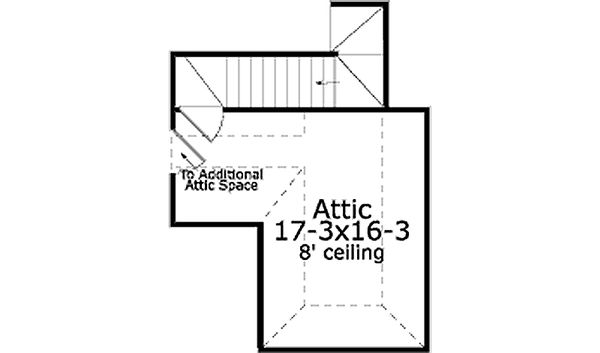

Floor Plans
Full Specs & Features
Dimension
Depth : 57' 10"
Height : 23'
Width : 66' 6"
Area
Bonus: 70 sq/ft
First Floor: 2018 sq/ft
Garage: 557 sq/ft
Ceiling
Ceiling Details : Main Floor Ceilings are 9'- 12'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Roof Framing : 2x8 Framing
Roof Type : Shingle
Secondary Pitch : 18:12
Exterior Wall Framing
Exterior Wall Finish : Brick/stucco
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
50 sq/ft width 5' x depth 10'
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 3:
137 sq/ft width 11' x depth 12' 6"
Breakfast Room:
121 sq/ft width 13' 6" x depth 9'
Dining Room:
150 sq/ft width 10' 9" x depth 14'
Foyer:
101 sq/ft width 6' 10" x depth 14' 10"
Garage:
513 sq/ft width 23' 2" x depth 22' 2"
Garage Storage:
51 sq/ft width 12' 4" x depth 4' 2"
Gathering Room:
276 sq/ft width 16' x depth 17' 3"
Kitchen:
112 sq/ft width 13' 6" x depth 8' 4"
Master Bathroom:
104 sq/ft width 8' 6" x depth 12' 3"
Master Bedroom:
261 sq/ft width 14' 5" x depth 18' 2"
Master Closet:
34 sq/ft width 8' 6" x depth 4'
Master Closet Two:
48 sq/ft width 8' 6" x depth 5' 9"
Porch - Rear:
109 sq/ft width 14' 2" x depth 7' 9"
What's Included In This Plan Set
- The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
- The second sheet is typically the front and side elevation drawn to 1/4" scale.
- The third sheet is the rear and side elevation drawn to 1/4" scale.
- The foundation of your choice (slab or crawlspace ). Floor Plan 1/4" Scale
- Detail and Section Page
- Cabinet elevations & Roof Plan
- Electrical Plan
- Foundation Details
Plan Set
$1260.00
$1455.00
$1630.00
$1760.00
$2215.00
$2715.00
Foundation
$0.00
$350.00
$350.00
Framing
$0.00
Additional Options
$255.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
