PLAN 70-734
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

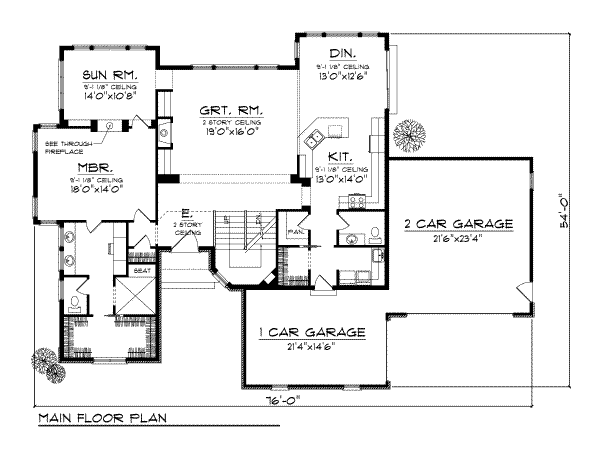

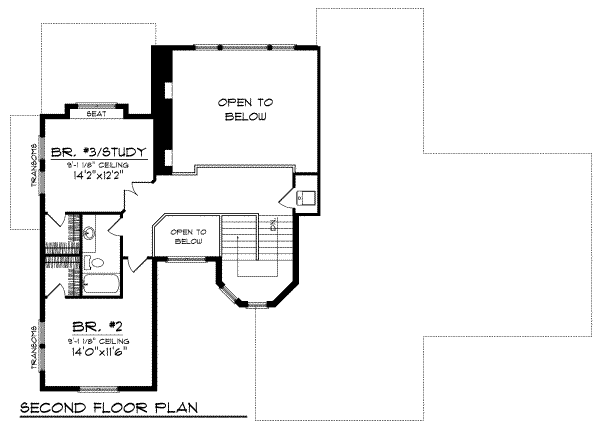

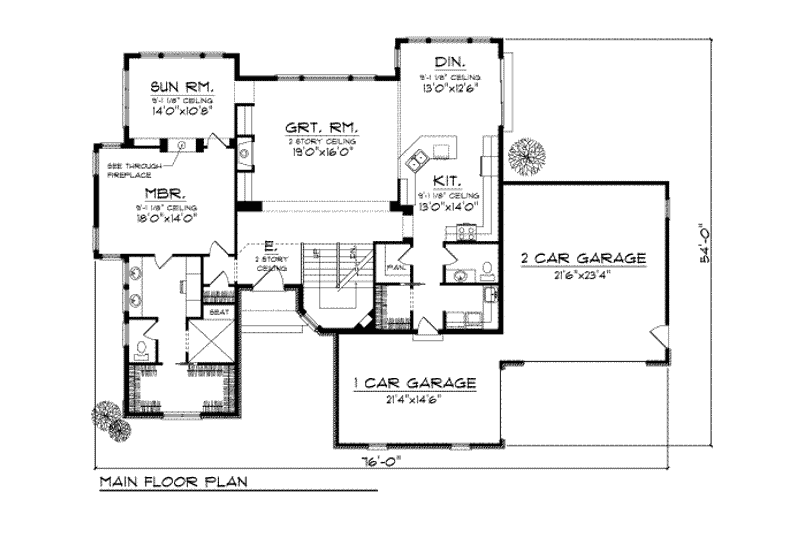

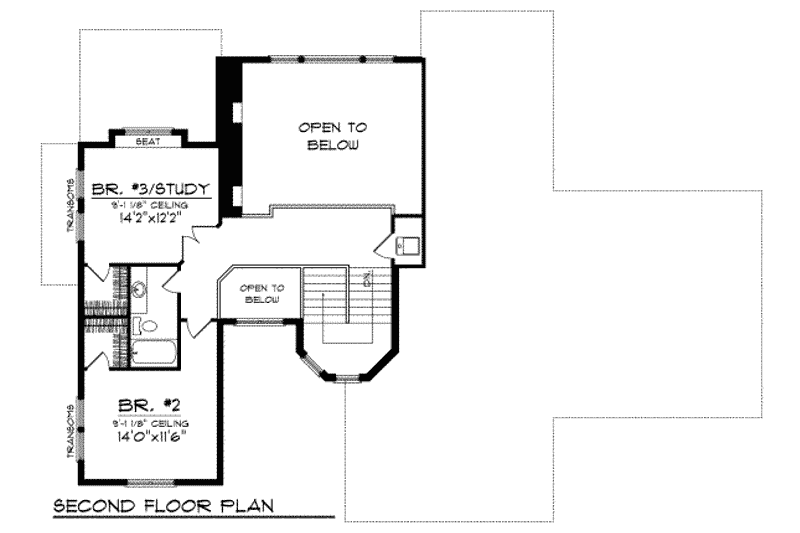

Floor Plans
Full Specs & Features
Dimension
Depth : 54'
Height : 30' 4"
Width : 76'
Area
First Floor: 1988 sq/ft
Second Floor: 685 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Master Sitting Area
Storage Area
Sunroom
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
Screened Porch
Rooms
Basement Foundation:
4104 sq/ft width 76' x depth 54'
Bedroom 2 Closet:
23 sq/ft width 4' 7" x depth 5' 2"
Bedroom 3:
172 sq/ft width 14' 2" x depth 12' 2"
Bedroom 3 Closet:
23 sq/ft width 4' 7" x depth 5' 2"
Dining Room:
162 sq/ft width 13' x depth 12' 6"
Foyer:
82 sq/ft width 8' 6" x depth 9' 9"
Garage:
309 sq/ft width 21' 4" x depth 14' 6"
Garage Two:
501 sq/ft width 21' 6" x depth 23' 4"
Great Room:
304 sq/ft width 19' x depth 16'
Hall Bathroom:
53 sq/ft width 5' x depth 10' 8"
Hall Closet:
8 sq/ft width 4' 2" x depth 2'
Kitchen:
182 sq/ft width 13' x depth 14'
Laundry Room:
42 sq/ft width 7' x depth 6'
Master Bathroom:
289 sq/ft width 14' x depth 20' 8"
Master Bedroom:
252 sq/ft width 18' x depth 14'
Master Closet:
88 sq/ft width 14' x depth 6' 4"
Pantry:
24 sq/ft width 4' 7" x depth 5' 3"
Porch - Front:
40 sq/ft width 8' x depth 5'
Powder Room:
36 sq/ft width 7' x depth 5' 2"
Study:
172 sq/ft width 14' 2" x depth 12' 2"
Sun Room:
149 sq/ft width 14' x depth 10' 8"
Walk-In Closet:
27 sq/ft width 4' 7" x depth 5' 11"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

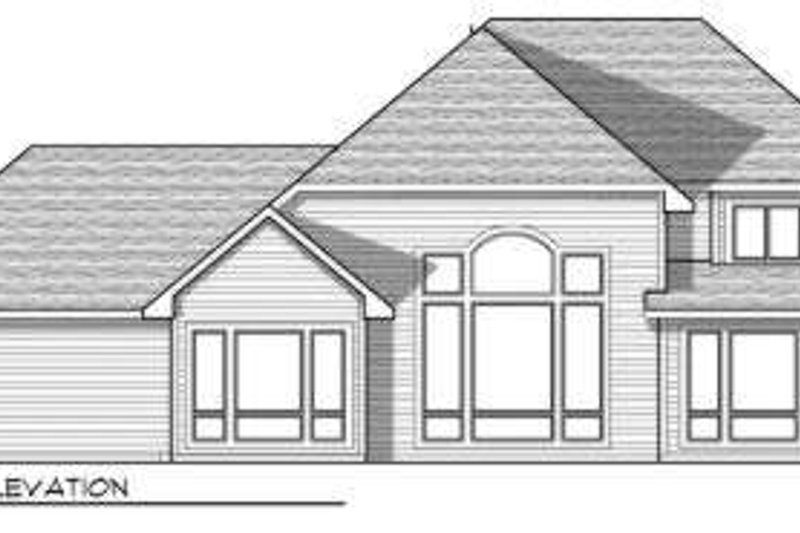

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$935.00
$988.55
$1184.90
$1184.90
$1884.45
Foundation
$0.00
$335.75
$335.75
Additional Options
$335.75
$68.00
$85.00
$250.75
$33.15
$63.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
