PLAN 17-3367

Photographs may show modified designs.

Home Plan - Ranch Exterior - Front Elevation Plan #17-3367

Home Plan - Ranch Exterior - Rear Elevation Plan #17-3367

Home Plan - Ranch Exterior - Other Elevation Plan #17-3367

Home Plan - Ranch Floor Plan - Main Floor Plan #17-3367

Jump to:
All (6)
Exterior (5)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch

Key Specs

2879
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$299.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Roof Framing Detail

$149.00

Get a detailed plan for your roof framing.

Subtotal

$1850.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 17-3367

Home > Style > Ranch

Key Specs

2879
sq ft

3
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 2879 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

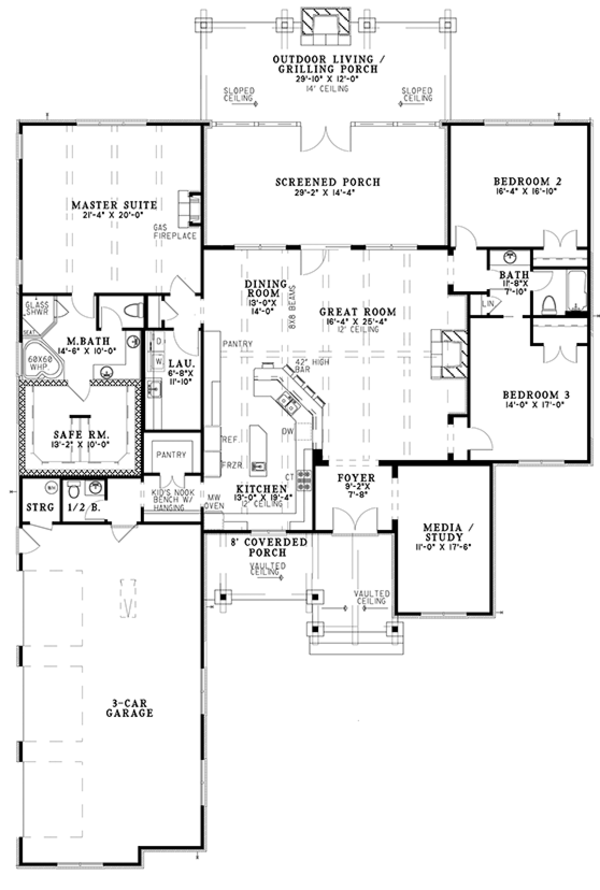

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 100' 9"

Height : 31' 8"

Width : 68' 2"

Area

First Floor: 2879 sq/ft height 10'

Garage: 911 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Media Room

Mud Room

Open Floor Plan

Safe Room / Hidden Room

Storage Area

Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Outdoor Fireplace

Screened Porch

Jack & Jill Bath

Wheelchair Adaptable

Rooms

Bath 2:

91 sq/ft width 11' 8" x depth 7' 10"

Bedroom 2:

275 sq/ft width 16' 4" x depth 16' 10"

Bedroom 3:

238 sq/ft width 14' x depth 17'

Covered Front Porch:

236 sq/ft

Dining Room:

182 sq/ft width 13' x depth 14'

Foyer:

70 sq/ft width 9' 2" x depth 7' 8"

Garage:

911 sq/ft

Great Room:

414 sq/ft width 16' 4" x depth 25' 4"

Kitchen:

251 sq/ft width 13' x depth 19' 4"

Master Bath:

145 sq/ft width 14' 6" x depth 10'

Master Closet/ Safe Room:

132 sq/ft width 13' 2" x depth 10'

Master Suite:

423 sq/ft width 21' 4" x depth 20'

Media/ Study:

193 sq/ft width 11' x depth 17' 6"

Outdoor Living/ Grilling Porch:

346 sq/ft width 28' 10" x depth 12'

Screened Porch:

418 sq/ft width 29' 2" x depth 14' 4"

What's Included In This Plan Set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
CAD Unlimited Build comes with a free PDF.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1850.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1950.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$2200.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build:
$2550.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$3700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD Unlimited Build:
$3700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$299.00

Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement:
$299.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$299.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$299.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Roof Framing Detail:
$149.00

Get a detailed plan for your roof framing.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
