PLAN 70-252
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

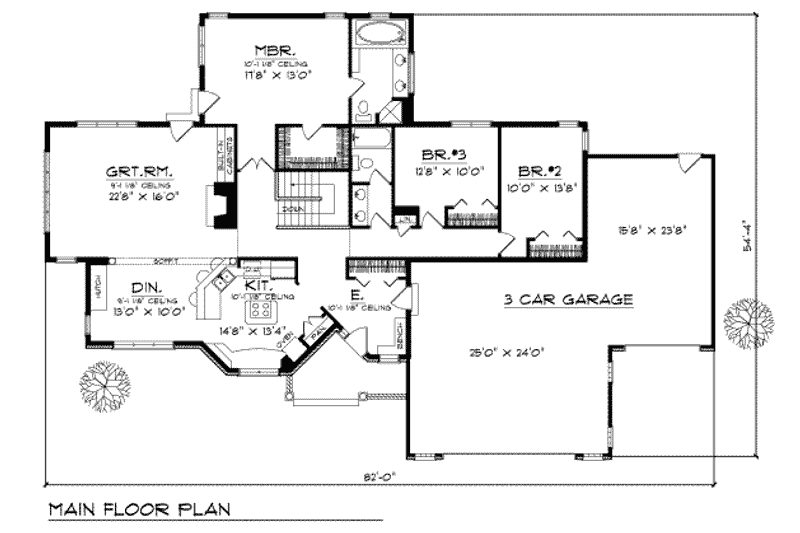

Floor Plans
Full Specs & Features
Dimension
Depth : 54' 4"
Height : 15'
Width : 82'
Area
First Floor: 1947 sq/ft height 8'
Ceiling
Ceiling Details : Kitchen, Master Bedroom and Nook: 10 ft. - Great Room and Nook: 9 ft.
Garage Ceiling : 8'
Main Ceiling : 8'
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Garage Features
Oversized Garage
Lot Characteristics
Suited For View Lot
Rooms
Bedroom 2:
136 sq/ft width 10' x depth 13' 8"
Bedroom 3:
126 sq/ft width 12' 8" x depth 10'
Dining Room:
130 sq/ft width 13' x depth 10'
Garage:
600 sq/ft width 25' x depth 24'
Garage Two:
370 sq/ft width 15' 8" x depth 23' 8"
Great Room:
362 sq/ft width 22' 8" x depth 16'
Kitchen:
195 sq/ft width 14' 8" x depth 13' 4"
Master Bedroom:
229 sq/ft width 17' 8" x depth 13'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

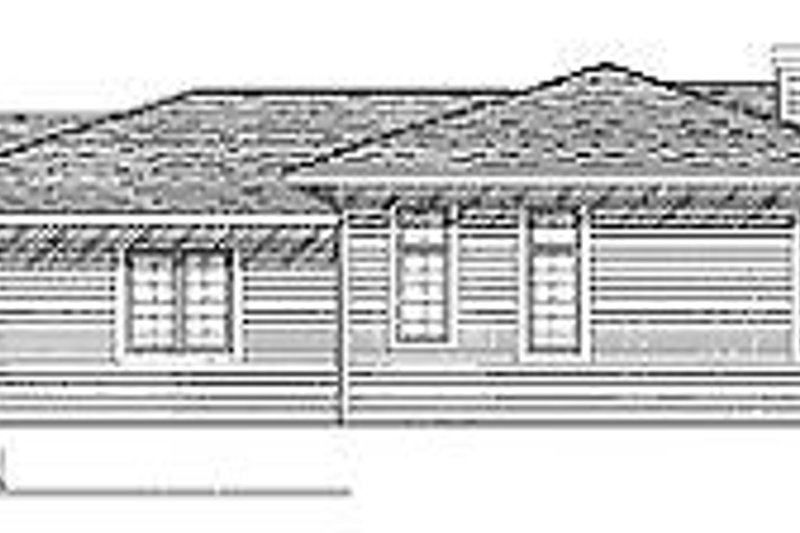

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$855.10
$901.00
$1068.45
$1068.45
$1699.15
Foundation
$0.00
$335.75
$335.75
Additional Options
$335.75
$68.00
$85.00
$250.75
$33.15
$63.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
