PLAN 70-1476
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 39'
Height : 24' 6"
Width : 36'
Area
Main Floor : 936 sq/ft
Porch : 468 sq/ft
Upper Floor : 316 sq/ft
Ceiling
Ceiling Details : Vaulted Entry, Great Room, Kitchen & Dining Area; Cathedral Upper level Loft
Main Ceiling : 8'
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Screened Porch

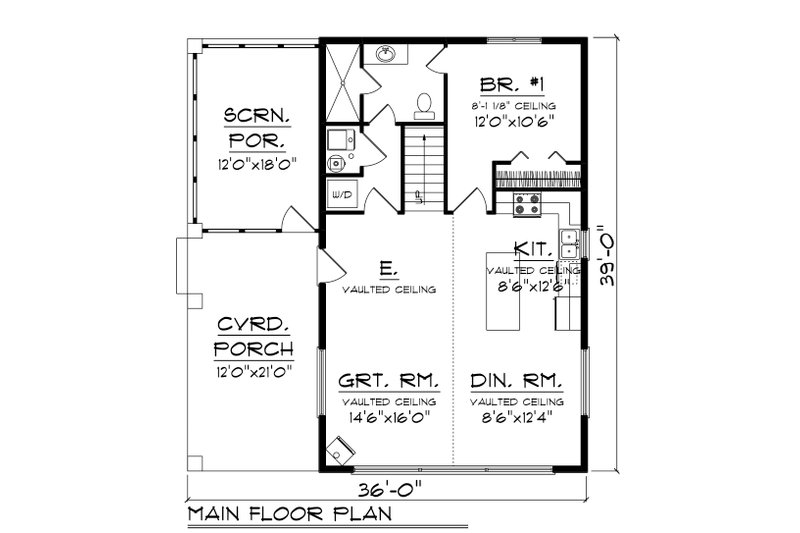

Rooms
Bedroom 1:
width 12' x depth 10' 6"
Covered Porch:
width 12' x depth 21'
Dining Room:
width 8' 6" x depth 12' 4"
Great Room:
width 14' 6" x depth 16'
Kitchen:
width 8' 6" x depth 12' 6"

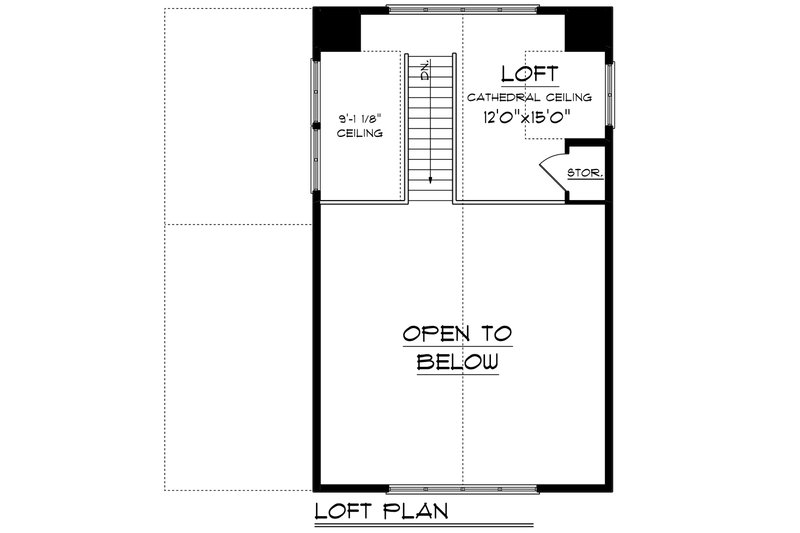

Loft:
width 12' x depth 15'
Screen Porch:
width 12' x depth 18'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$748.80
$787.20
$937.60
$937.60
$1480.80
Foundation
$0.00
$316.00
Framing
$0.00
Additional Options
$316.00
$64.00
$132.00
$236.00
$31.20
$132.00
$60.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
