This bungalow design floor plan is 3124 sq ft and has 4 bedrooms and 2.5 bathrooms.
Floor Plans

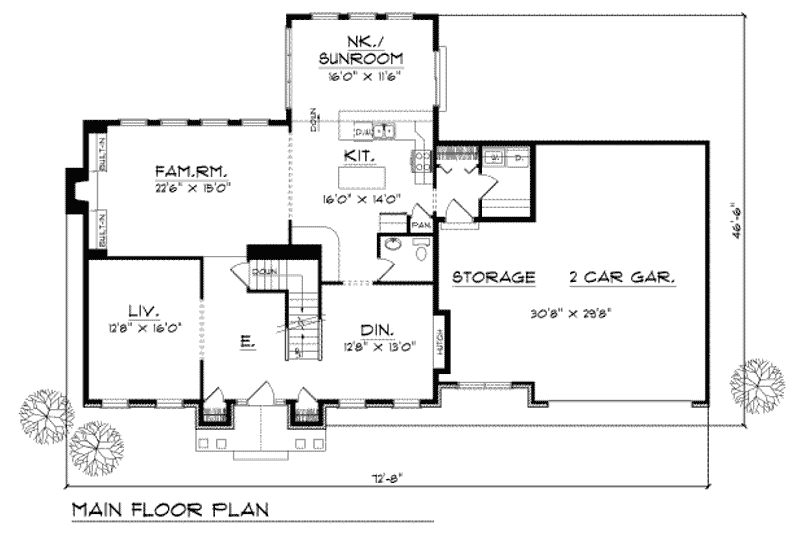

Floor Plan - Main Floor

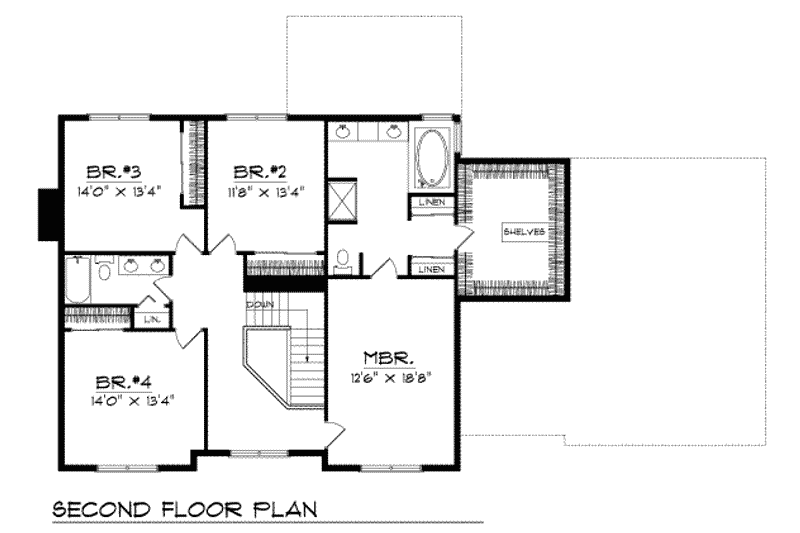

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 46' 6"
Height : 31'
Width : 72' 8"
Area
First Floor: 1632 sq/ft
Second Floor: 1492 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Loft
Storage Area
Sunroom
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Screened Porch
More
Empty Nester
Rooms
Dining Room:
164 sq/ft width 12' 8" x depth 13'
Family Room:
337 sq/ft width 22' 6" x depth 15'
Garage:
909 sq/ft width 30' 8" x depth 29' 8"
Kitchen:
224 sq/ft width 16' x depth 14'
Living Room:
202 sq/ft width 12' 8" x depth 16'
Sun Room:
184 sq/ft width 16' x depth 11' 6"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

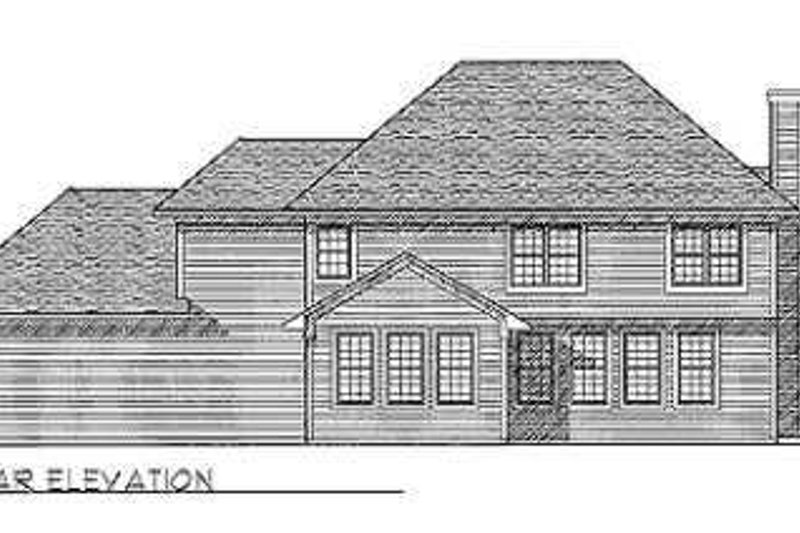

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
