PLAN 120-199
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

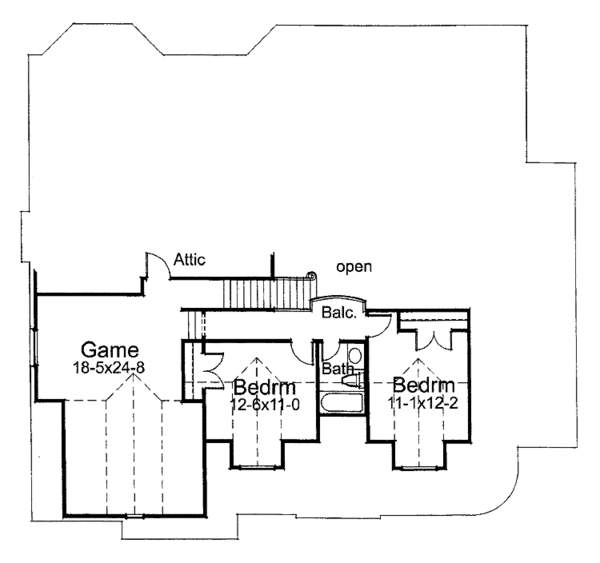

Floor Plan - Other Floor

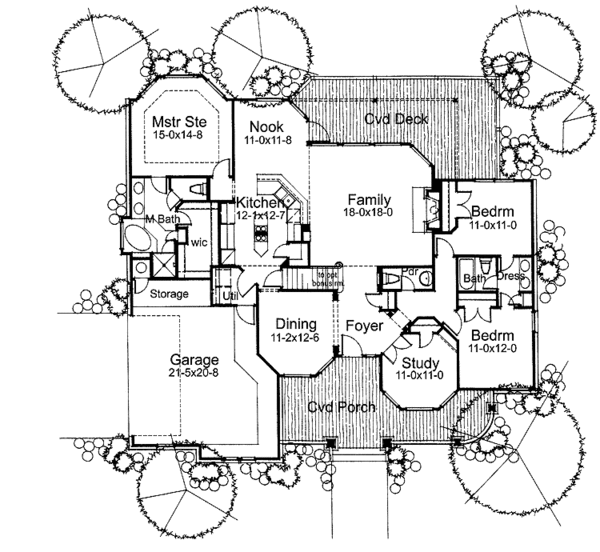

Floor Plan - Main Floor

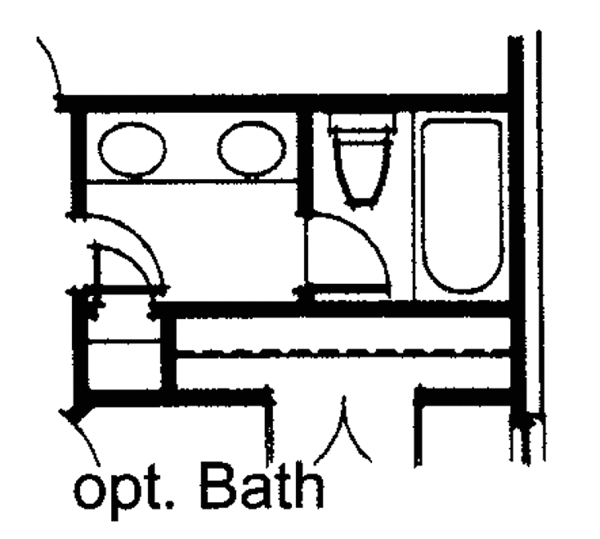

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 57' 6"
Height : 26'
Width : 60'
Area
Bonus: 938 sq/ft
First Floor: 1991 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Deck
Rooms
3rd BR Closet:
11 sq/ft width 5' 8" x depth 2'
Basement Foundation:
3450 sq/ft width 60' x depth 57' 6"
Bathroom 2:
55 sq/ft width 11' x depth 5'
Bedroom 2:
121 sq/ft width 11' x depth 11'
Bedroom 2 Closet:
15 sq/ft width 2' x depth 7' 6"
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 3 Closet:
15 sq/ft width 2' x depth 7' 6"
Bedroom 4 Closet:
9 sq/ft width 4' 7" x depth 2'
Crawlspace Foundation:
3450 sq/ft width 60' x depth 57' 6"
Deck:
width 28' 3" x depth 0"
Dining Room:
139 sq/ft width 11' 2" x depth 12' 6"
Foyer:
81 sq/ft width 6' 2" x depth 13' 3"
Garage:
442 sq/ft width 21' 5" x depth 20' 8"
Garage Storage:
46 sq/ft width 11' 7" x depth 4'
Gathering Room:
324 sq/ft width 18' x depth 18'
Hall:
49 sq/ft width 14' x depth 3' 6"
Hall Closet:
5 sq/ft width 2' x depth 2' 8"
Kitchen:
152 sq/ft width 12' 1" x depth 12' 7"
Master Bathroom:
82 sq/ft width 5' 6" x depth 14' 11"
Master Bedroom:
220 sq/ft width 15' x depth 14' 8"
Master Closet:
67 sq/ft width 6' x depth 11' 3"
Porch - Front:
318 sq/ft width 31' 4" x depth 10' 2"
Porch - Rear:
width 28' 3" x depth 0"
Powder Room:
23 sq/ft width 7' 5" x depth 3' 2"
Slab Foundation:
3450 sq/ft width 60' x depth 57' 6"
Study:
121 sq/ft width 11' x depth 11'
Utility Room:
35 sq/ft width 6' 6" x depth 5' 6"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$930.75
$930.75
$1058.25
$1143.25
$1610.75
Foundation
$0.00
$0.00
$335.75
$335.75
Framing
$0.00
$208.25
Additional Options
$165.75
$42.50
$335.75
$140.25
$250.75
$33.15
$335.75
$165.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
